Console: Testing and Inspection

Roof Console Input Test/Replacement

1. Turn the map light switch OFF.

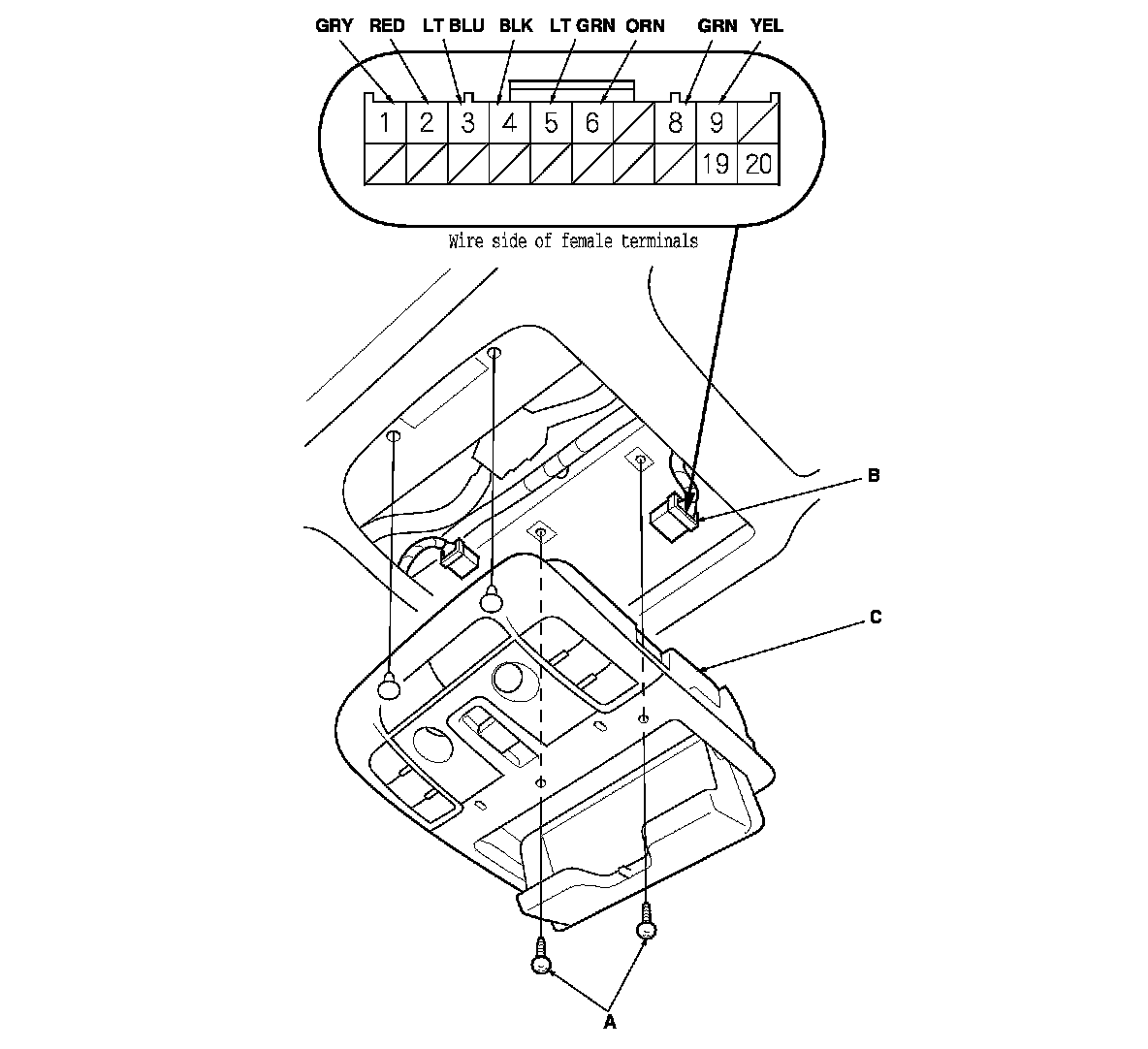

2. Open the sunglass holder, then remove the two screws (A).

3. Disconnect the 20P connector (B) from the roof console (C).

4. Inspect the connector and socket terminals to be sure they are all making good contact.
- If the terminals are bent, loose or corroded, repair them as necessary and recheck the system.

- If the terminals look OK, go to step 5.

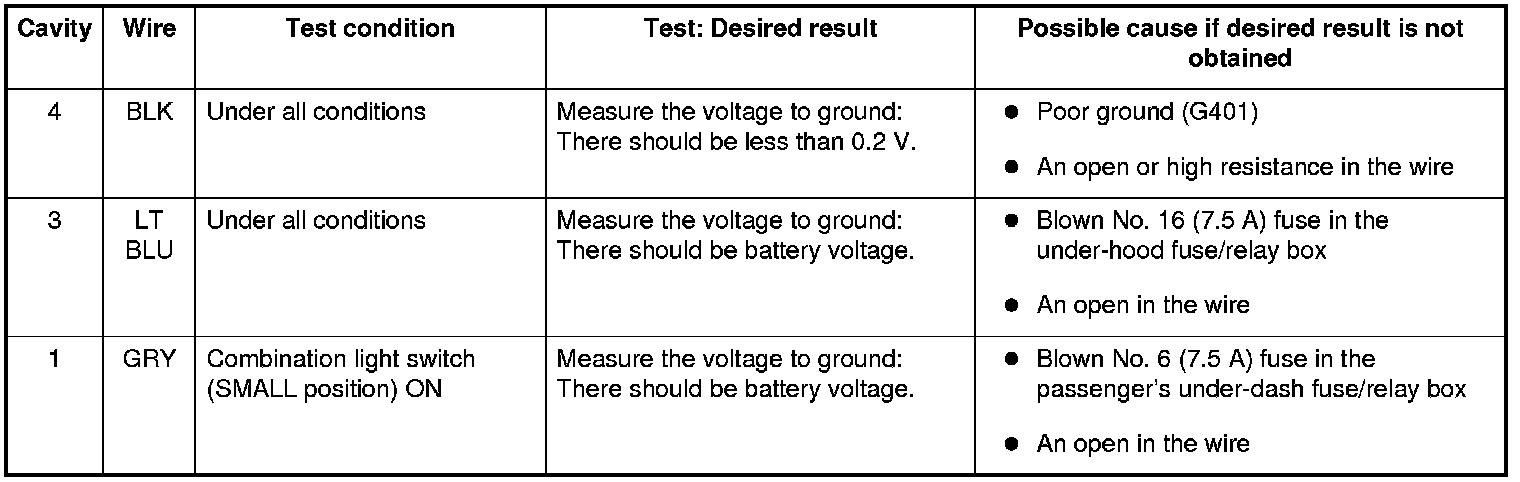

5. With the connector still disconnected, do these input tests at the following connector.
- If any test indicates a problem, find and correct the cause, then recheck the system.

- If all the input tests prove OK, go to step 6.





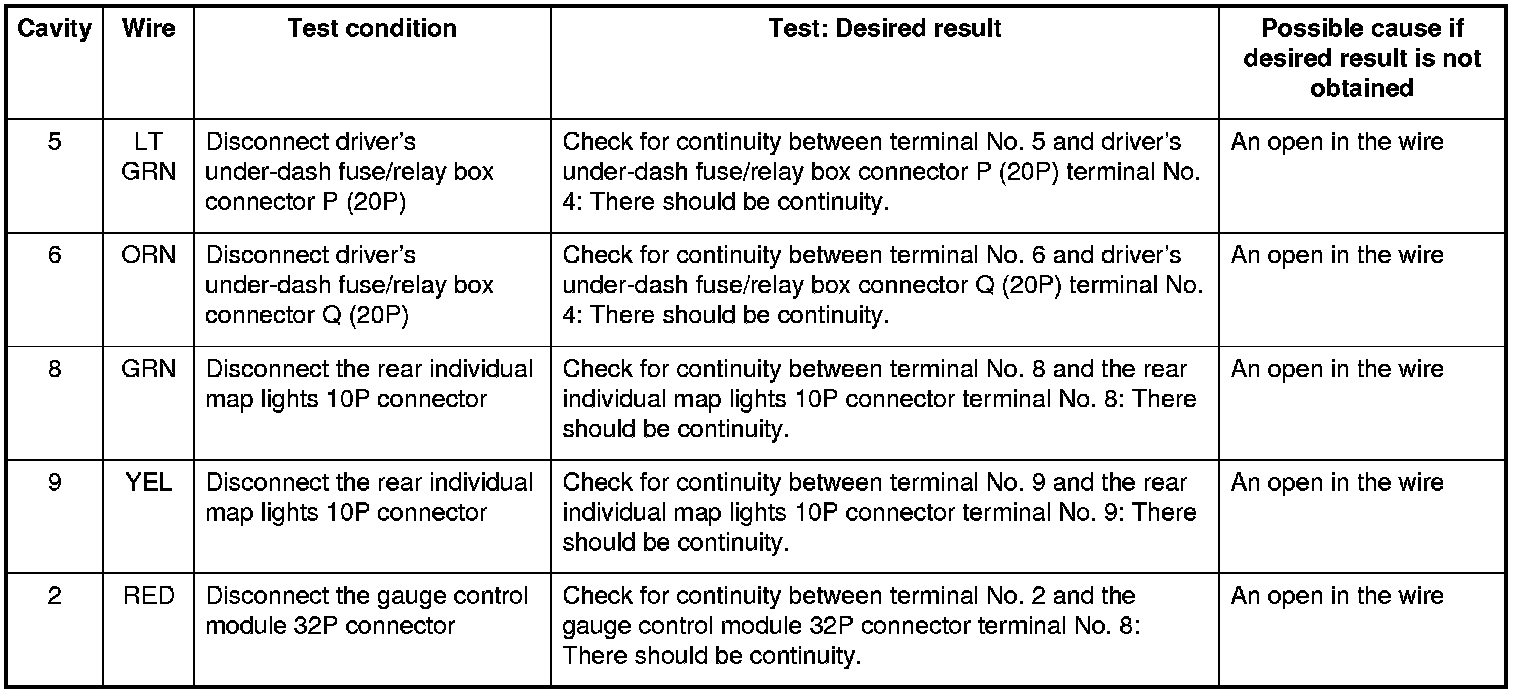

6. Reconnect the connector to the roof console, and do these input tests at the following connector.
- If any test indicates a problem, find and correct the cause, then recheck the system.

- If all the input tests prove OK, the roof console must be faulty; replace it.
