Center Console Removal/Installation

Center Console Removal/Installation

Special Tools Required

- KTC trim tool set SOJATP2014*
*Available through the Acura Tool and Equipment Program.

NOTE:

- Put on gloves to protect your hands.

- Take care not to scratch the front seat, the dashboard, or related parts.

- Use the appropriate tool from the KTC trim tool set to avoid damage when removing components.

- When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.

1. Remove these items:
- Dashboard center trim Dashboard Center Trim Removal/Installation

- Center console rear trim Center Console Rear Trim Removal/Installation

- Center console panel Center Console Panel Removal/Installation

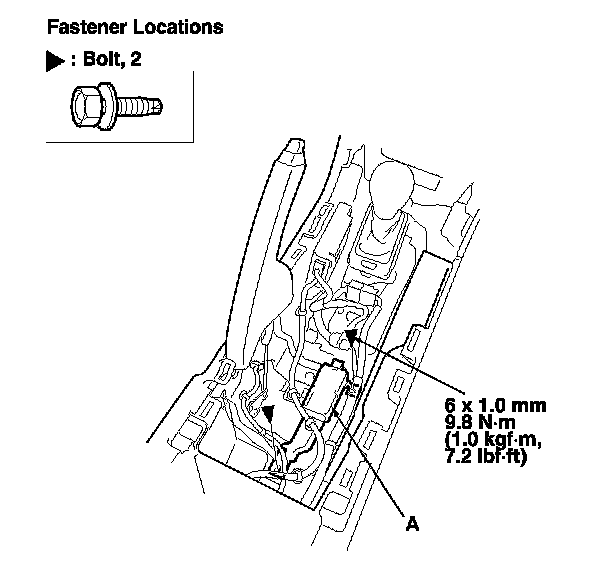

2. Remove the bolts, then remove the center console RF unit (A).

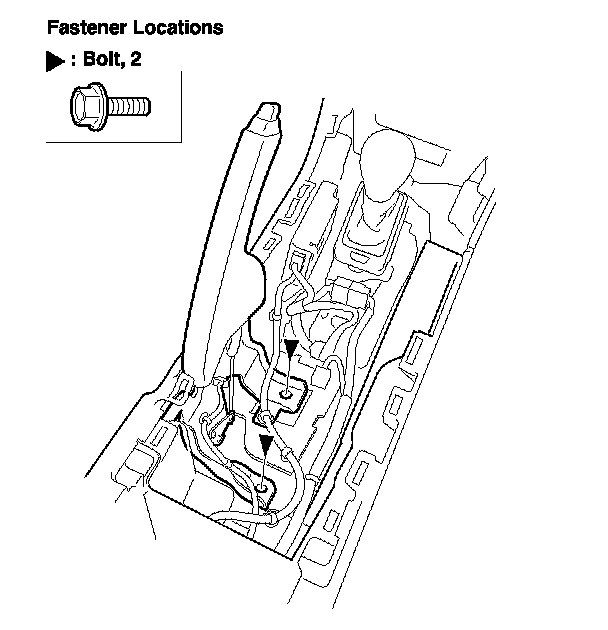

3. Remove the parking brake lever mounting bolts.

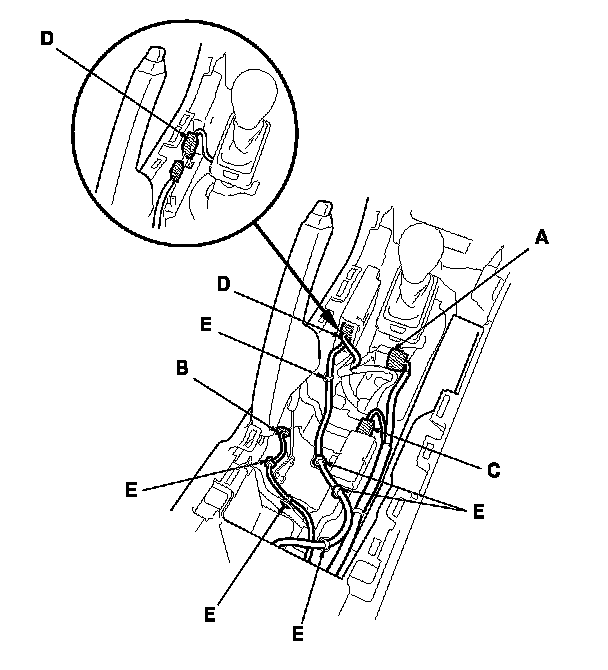

4. Disconnect the center console subharness connector (A), the parking brake switch connector (B), the center console RF unit connector (C), and the USB adapter unit connector (D), then remove the wire harness clips (E).

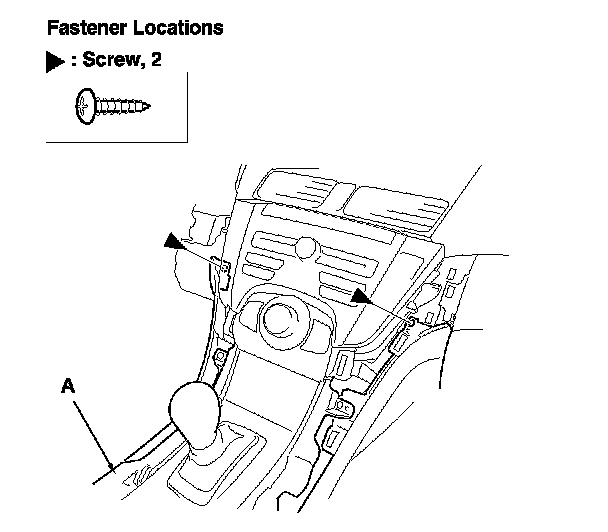

5. Remove the screws securing the center console (A).

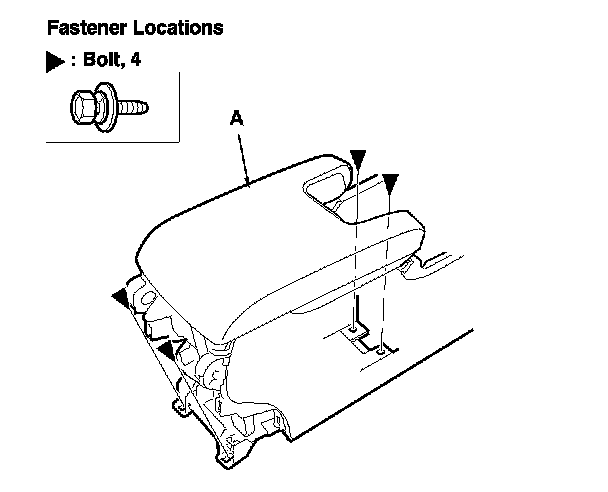

6. Remove the bolts securing the center console (A).






7. Remove the center console (A).
-1 Detach the clips (B) securing the passenger's front console cover (C).
Detach the clips (D) by pulling the console out from both sides, and pull up the console to release the guide pin (E).

8. Install the console in the reverse order of removal, and note these items:
- Make sure each connector is plugged in properly.

- If the clips are damaged, replace them with new ones.

- Push the clips and the hooks into place securely.
