Trunk / Liftgate Stop: Service and Repair
Trunk Lid Cushion Replacement
1.

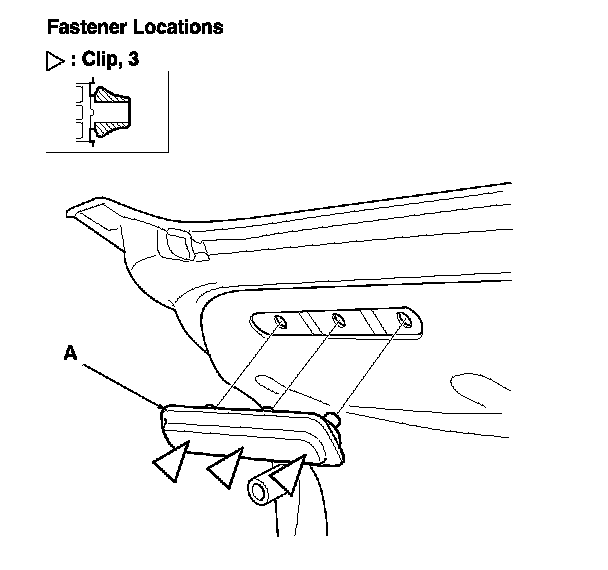

Remove the trunk lid cushion (A) by pulling it out to detach the clips.
2.
Install the trunk lid cushion by pushing on the clip portions until the clips snap into place.
