Trunk / Liftgate Latch Release Cable: Service and Repair

Trunk Lid Opener Cable Replacement

NOTE:

- Put on gloves to protect your hands.

- Take care not to scratch the body.

1. Remove these items:
- Rear seat cushion Rear Seat Removal/Installation

- Rear seat-back Rear Seat Removal/Installation

- Trunk lid hinge trim Interior Trim Removal/Installation - Trunk Lid Trim Panel

- Trunk lid trim panel Interior Trim Removal/Installation - Trunk Lid Trim Panel

- Trunk side trim panel, left side Interior Trim Removal/Installation - Trunk Area

- Trunk upper trim panel Interior Trim Removal/Installation - Trunk Area

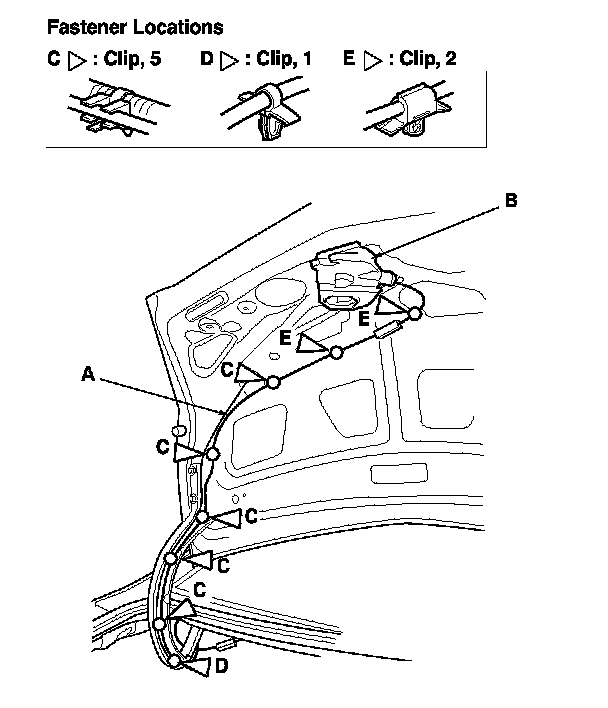

2. Disconnect the trunk lid opener cable (A) from the latch (B). Service and Repair

3. Use a clip remover to release the clips (C, D, E).

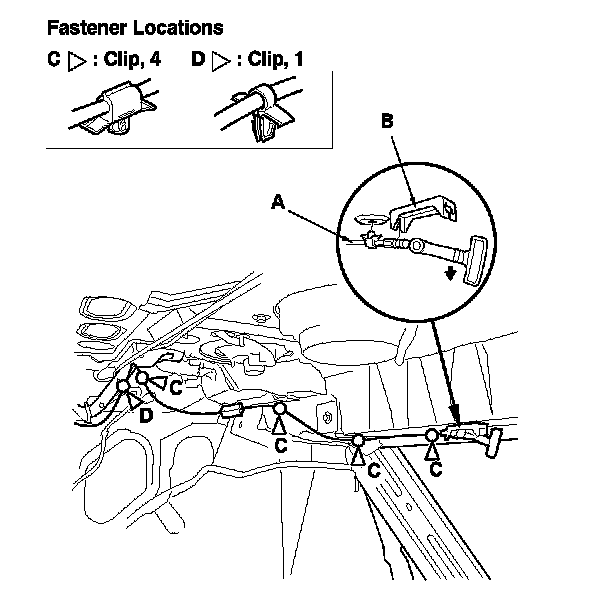

4. Remove the trunk lid opener cable (A) from the opener cable bracket (B).

5. Use a clip remover to release the clips (C, D).

6. Remove the trunk lid opener cable from the vehicle. Take care not to kink the cable.






7. Install the opener cable in the reverse order of removal, and note these items:
- Align the marks (A) on the opener cable (B) with the cable clips (C) as shown.

- If the clips are damaged or stress-whitened, replace them with new ones.

- Push the clips into place securely.

- Make sure the trunk lid opens properly and locks securely.
