Audio System Information Does Not Display On the Audio-HVAC Display Unit (Without Navigation)

Symptom Troubleshooting: Audio system information does not display on the audio-HVAC display unit

Audio system information does not display on the audio-HVAC display unit (without navigation)

NOTE:

- Check the vehicle battery condition first.

- Check the connectors for poor connections or loose terminals.

1. Remove the audio-HVAC display unit. Audio-HVAC Display Unit Removal/Installation (Without Navigation)

2. Check the connections at the audio-HVAC display unit 12P connector and audio unit connector D (20P).

Are the connectors and terminals connected properly?
YES - Go to step 3.

NO - Repair the connection, and recheck.


3. Disconnect the audio-HVAC display 12P connector.

4. Turn the ignition switch to ON (II), or press the engine start/stop button to select the ON mode.

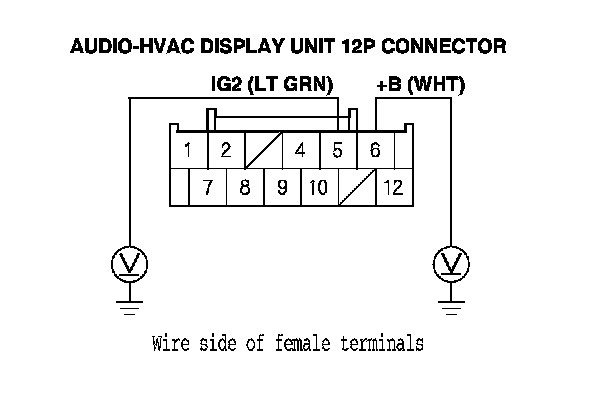

5. Measure the voltage between audio-HVAC display unit 12P connector terminals No. 5 and No. 6 and body ground individually.

Is there battery voltage?
YES - Go to step 6.

NO - Repair open in the wire between the No. 15 (10 A) fuse in the under-hood fuse/relay box and audio-HVAC display unit 12P connector terminal No. 6, or repair open in the wire between the No. 16 (7.5 A) fuse in the driver's under-dash fuse/relay box and audio-HVAC display unit 12P connector terminal No. 5.

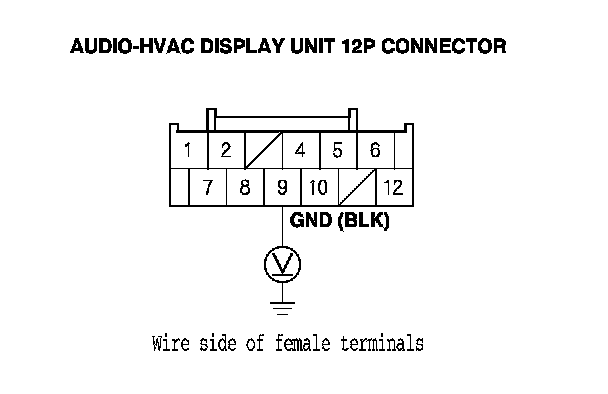

6. Measure the voltage between audio-HVAC display unit 12P connector terminal No. 9 and body ground.

Is there less than 0.1 V?
YES - Go to step 7.

NO - Repair open in the wire between audio-HVAC display 12P connector terminal No 9 and body ground (G501).. Audio Wire Harness Connector And Harness Locations






7. Turn the ignition switch to LOCK (0), or press the engine start/stop button to select the OFF mode.

8. Disconnect audio unit connector D (20P).

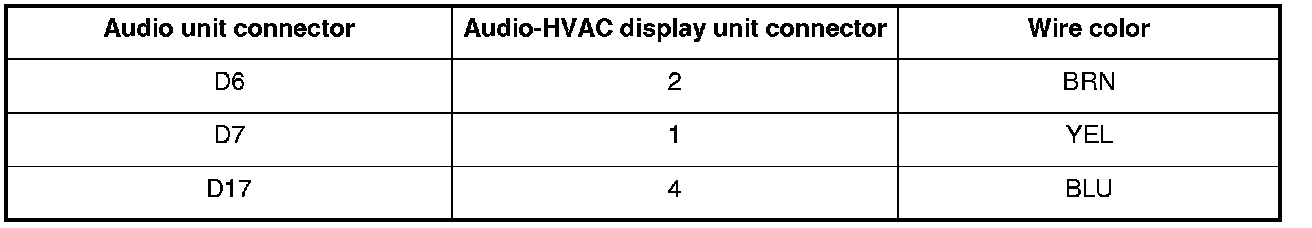

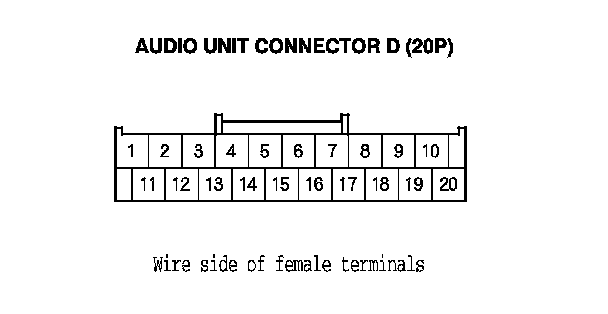

9. Check for continuity between audio unit connector D (20P) and the audio-HVAC display unit 12P connector according to the table.





Is there continuity?
YES - Go to step 10.

NO - There is an open in the wire(s) between the audio unit and the audio-HVAC display unit. Replace the affected shielded harness.

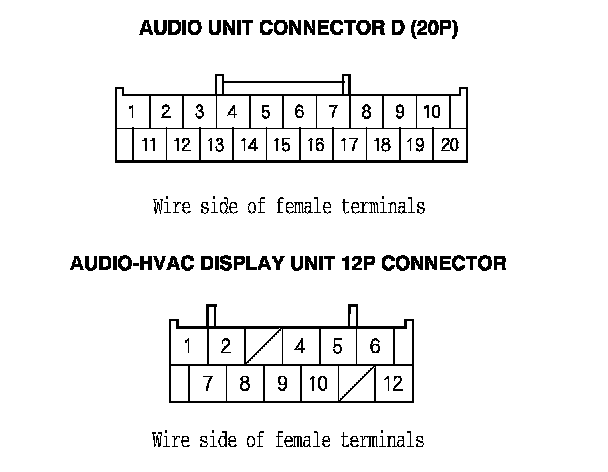

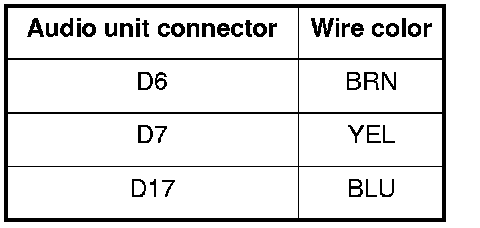

10. Check for continuity between the terminals of the audio unit connector D (20P) and body ground according to the table.





Is there continuity?
YES - There is a short to body ground in the wire(s) between the audio unit and the audio-HVAC display unit. Repair or replace the affected shielded harness.

NO - Go to step 11.

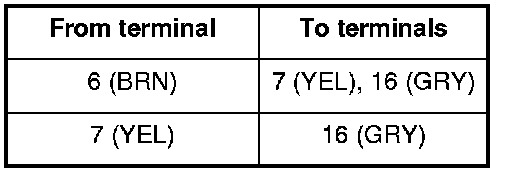

11. Check for continuity between the terminals of audio unit connector D (20P) according to the table.





Is there continuity between any of the terminals?
YES - There is a short in the wires between the audio unit and the audio-HVAC display unit. Replace the affected shielded harness.

NO - Substitute a known-good audio-HVAC display unit, Audio-HVAC Display Unit Removal/Installation (Without Navigation) and recheck. If the symptom/indication goes away, replace the original audio-HVAC display unit. If the symptom is still present, substitute a known-good audio unit, Audio Unit Removal/Installation (Without Navigation) and recheck. If the symptom/indication goes away, replace the original audio unit.
