USB Adapter Unit Replacement (Without Navigation)

USB Adapter Unit Replacement

Without Navigation

1. Remove the center console. Center Console Panel Disassembly/Reassembly

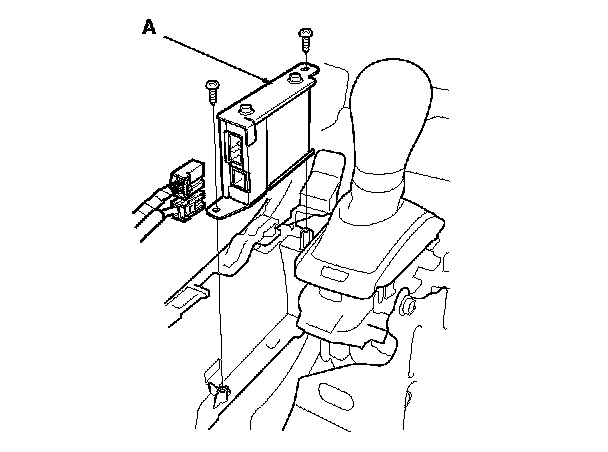

2. Disconnect the connectors from the USB adapter unit (A), then remove the screws and USB adapter unit.

3. Install the USB adapter unit in the reverse order of removal.
