Part 2

Audio System Description

Audio Unit Connector for Inputs and Outputs

With Navigation





NOTE: Refer to the navigation section for audio-navigation unit connector G, H, and J inputs and outputs. Description and Operation

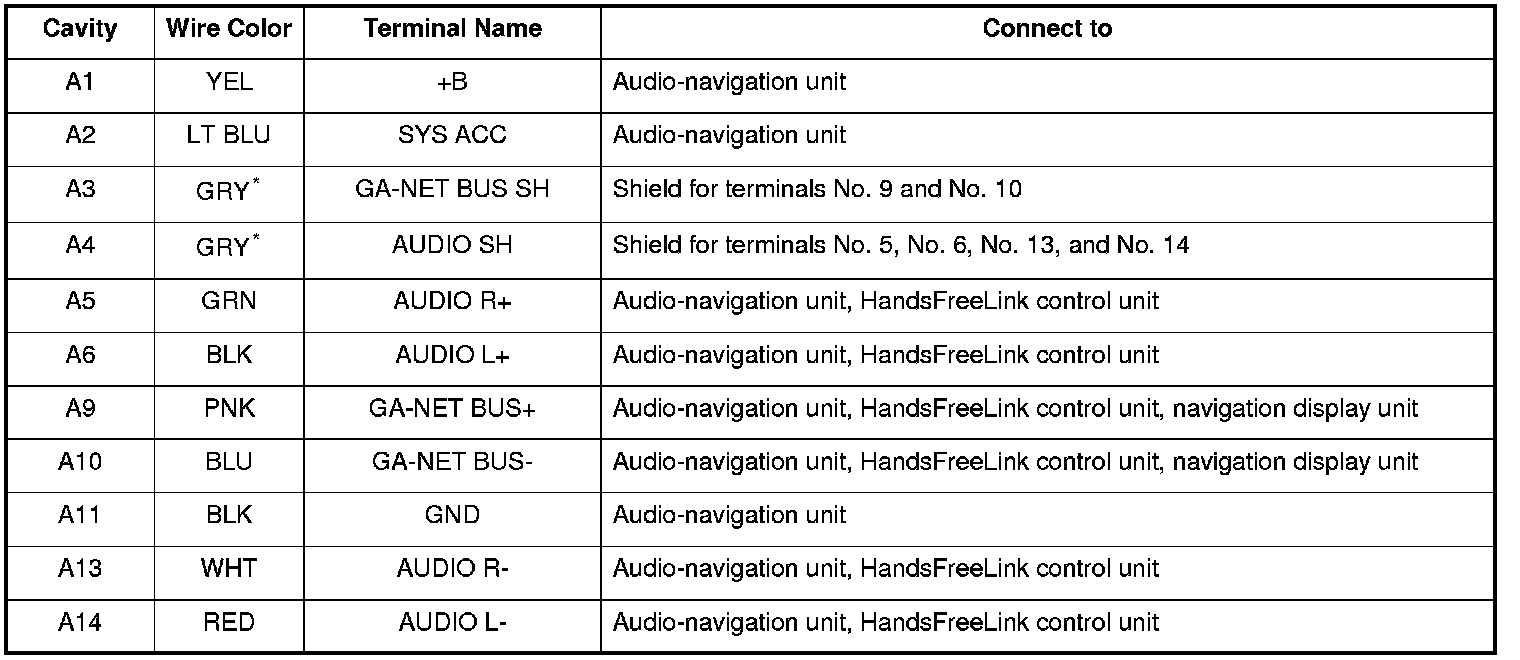

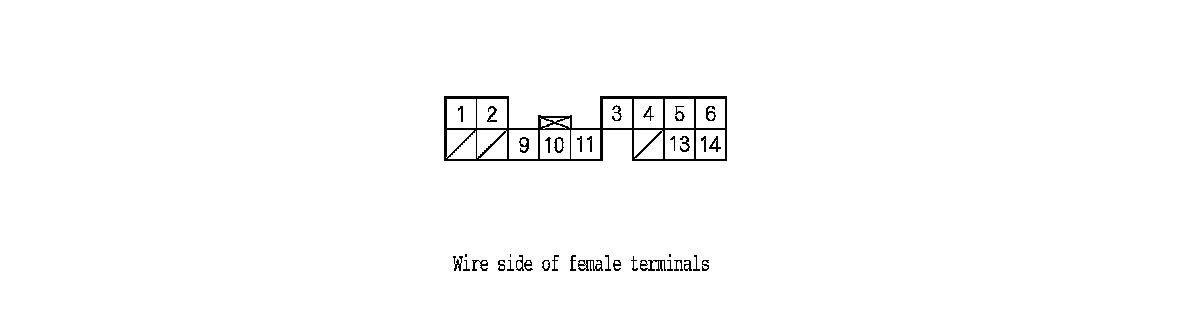

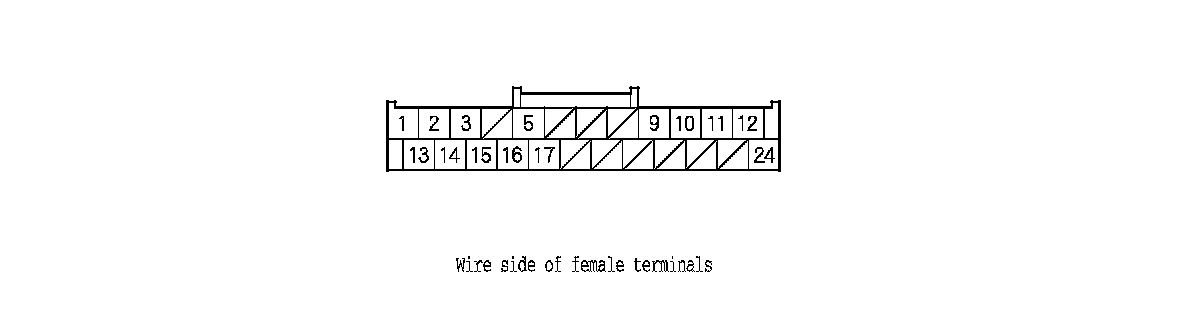

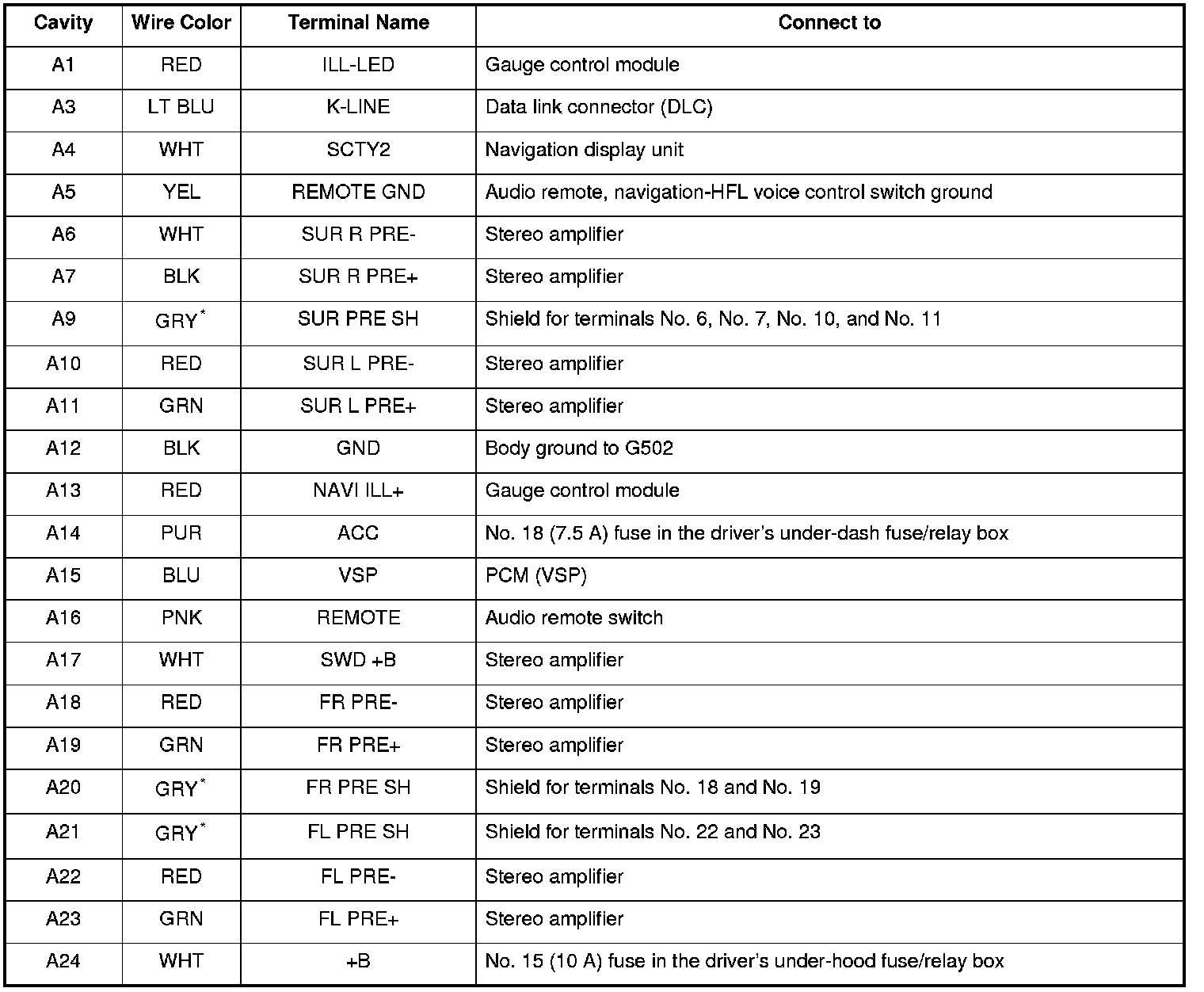

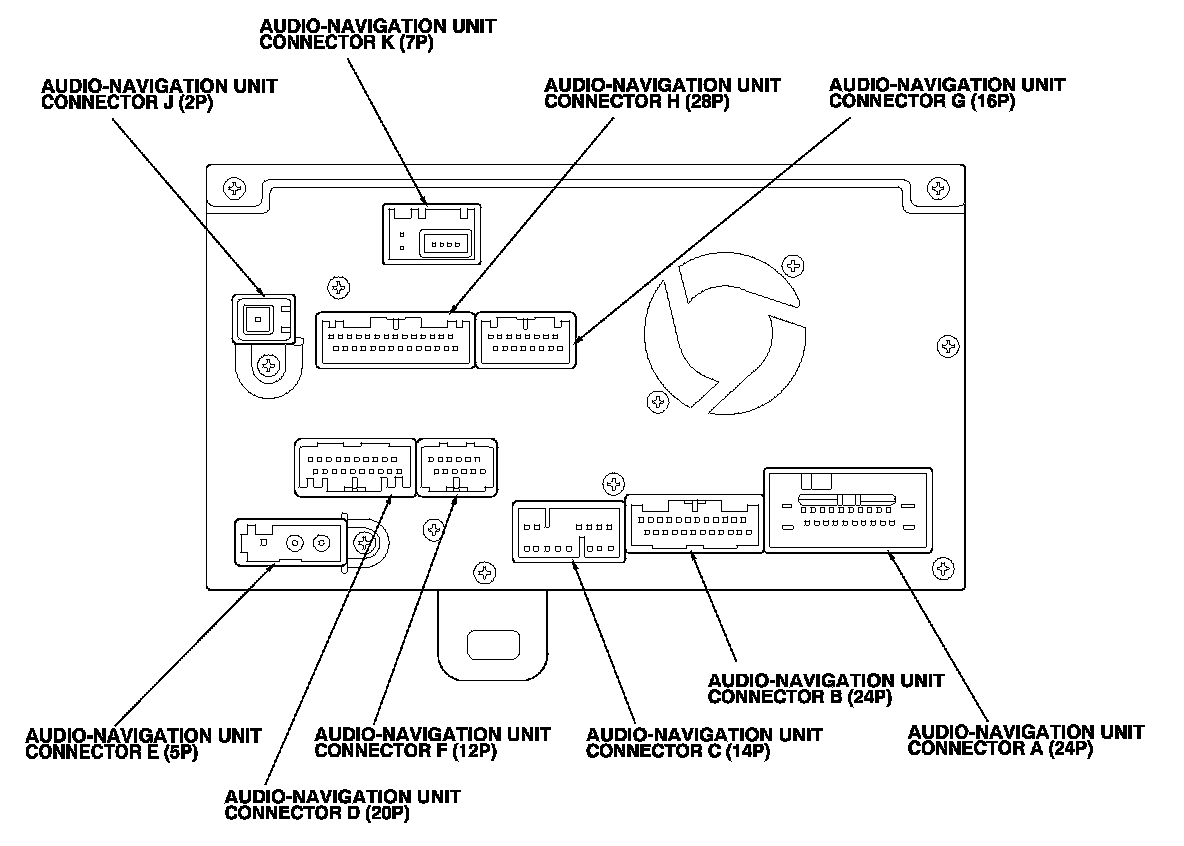

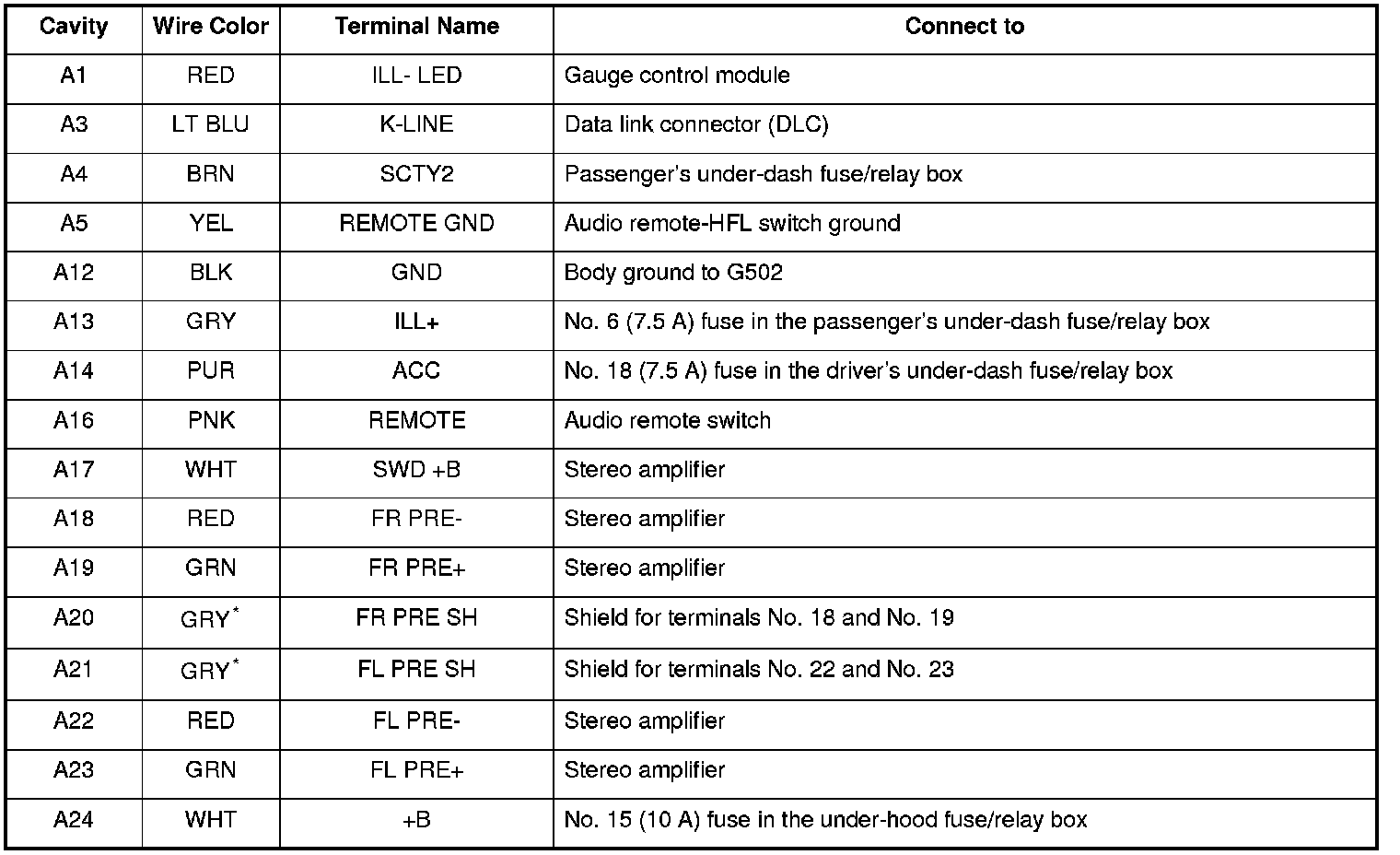

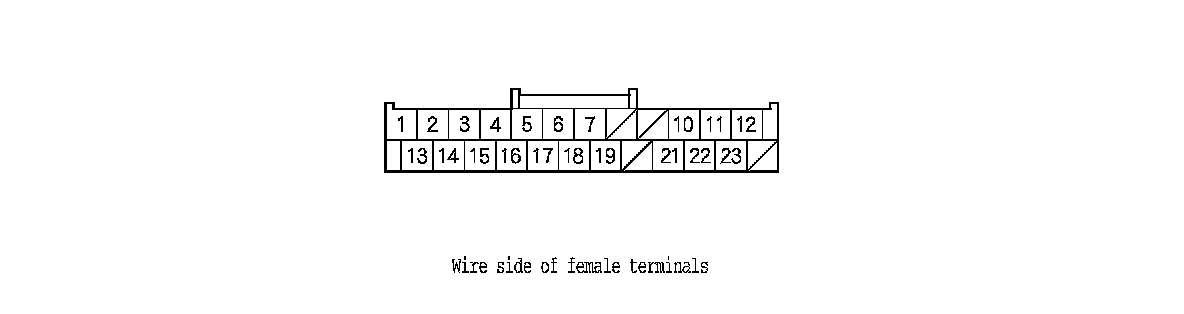

Audio-Navigation Unit Connector A (24P)









*: The shielded wires have a heat-shrunk tube insulating the outside of the wire. The color of the insulating tube, typically black or dark gray, may not match the color of the wire listed on the schematic.

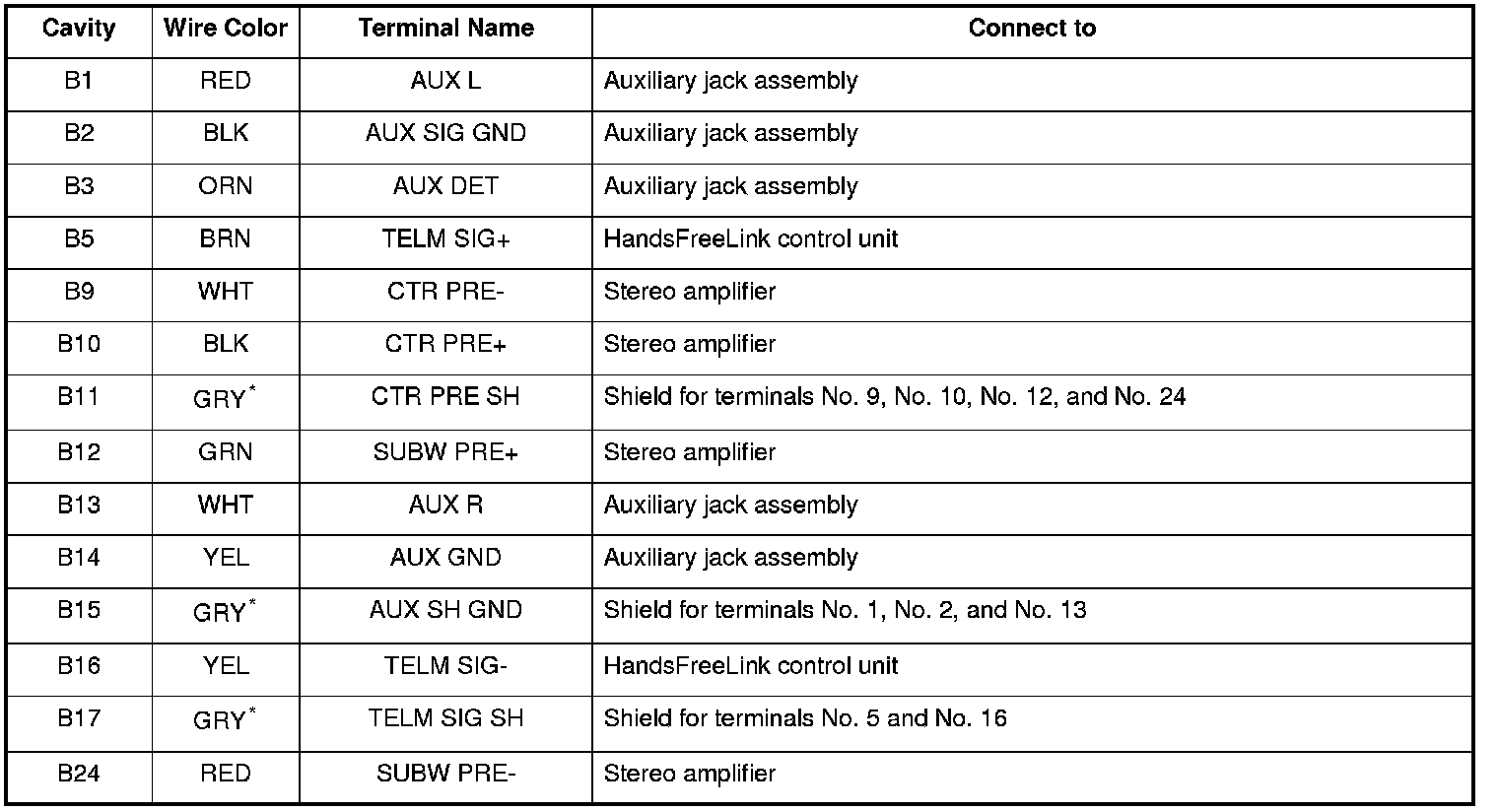

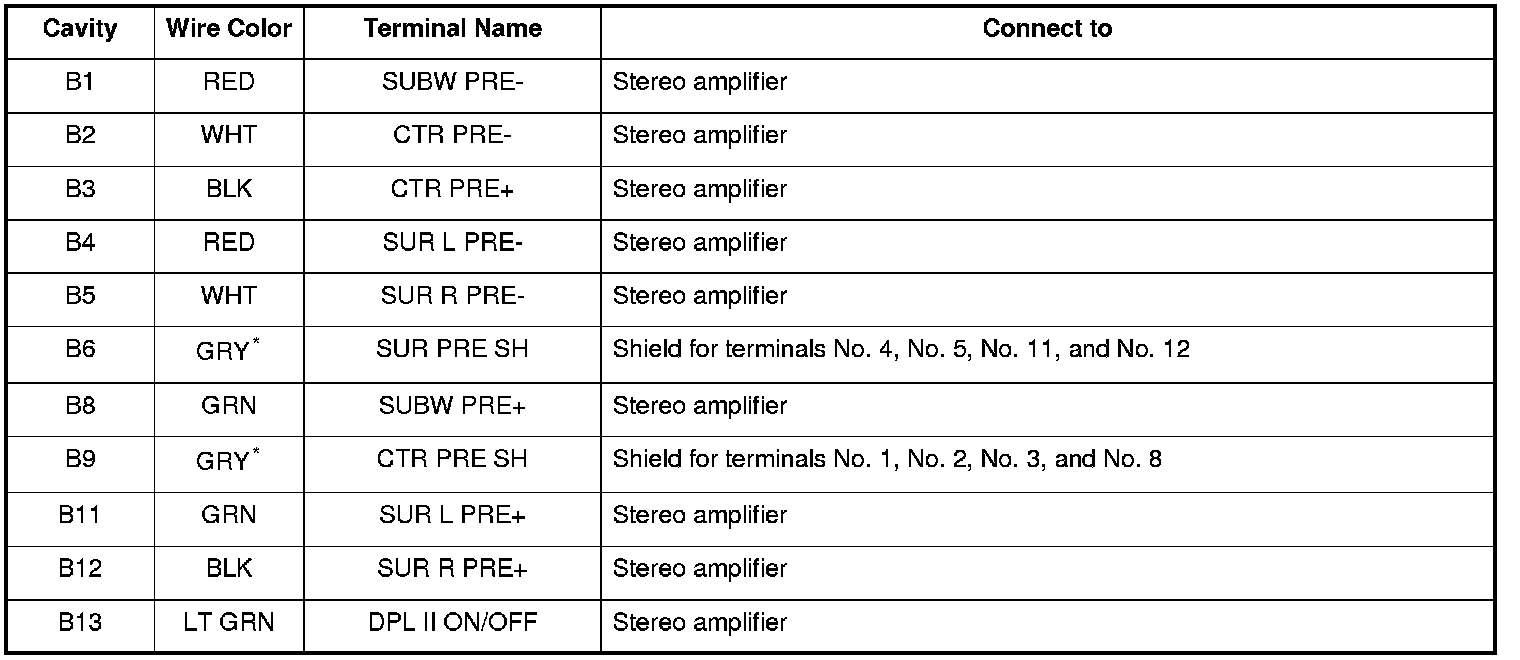

Audio-Navigation Unit Connector B (24P)









*: The shielded wires have a heat-shrunk tube insulating the outside of the wire. The color of the insulating tube, typically black or dark gray, may not match the color of the wire listed on the schematic.

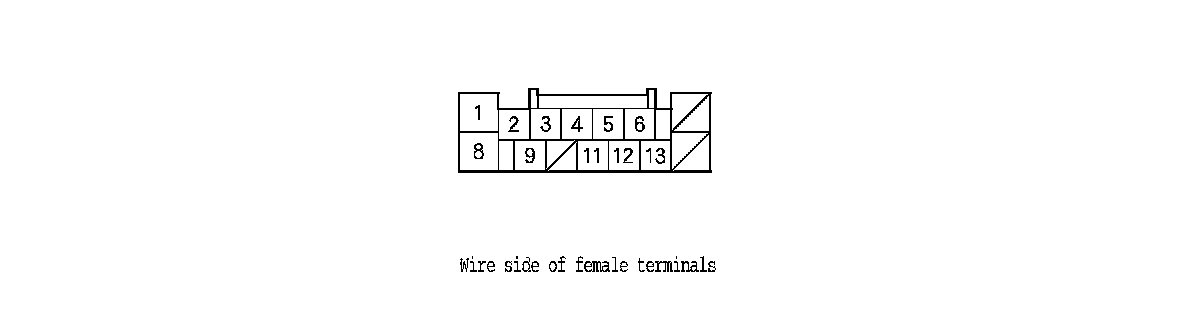

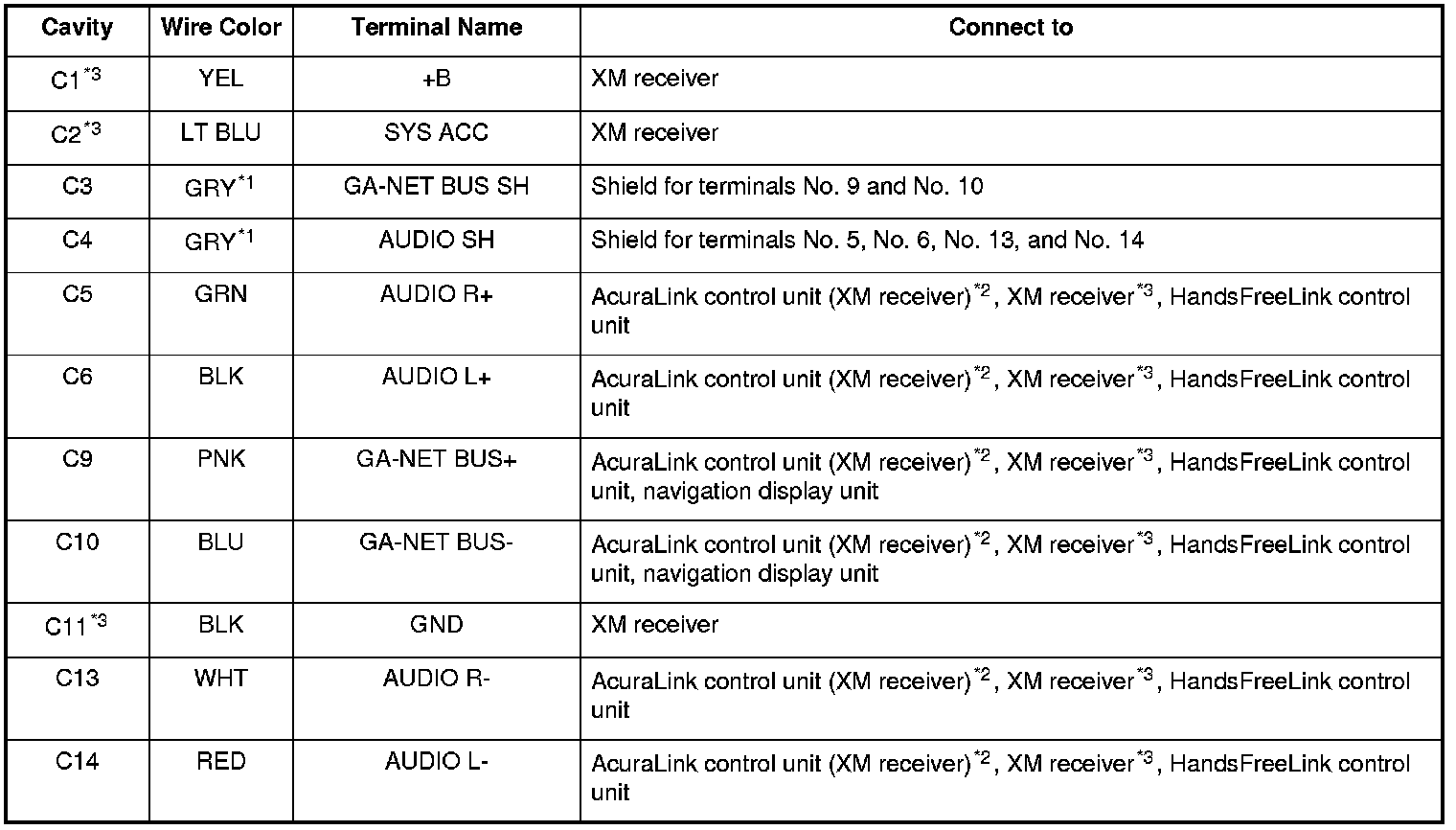

Audio-Navigation Unit Connector C (14P)









*1: The shielded wires have a heat-shrunk tube insulating the outside of the wire. The color of the insulating tube, typically black or dark gray, may not match the color of the wire listed on the schematic.

*2: USA models

*3: Canada models

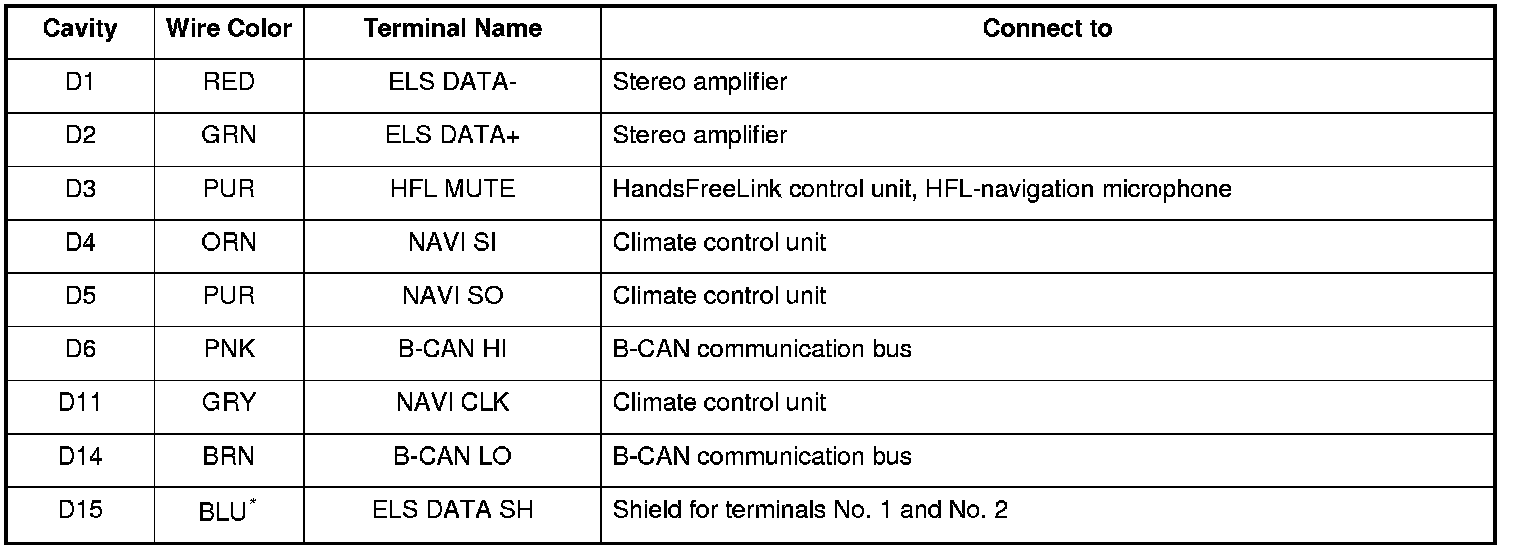

Audio-Navigation Unit Connector D (20P)









*: The shielded wires have a heat-shrunk tube insulating the outside of the wire. The color of the insulating tube, typically black or dark gray, may not match the color of the wire listed on the schematic.

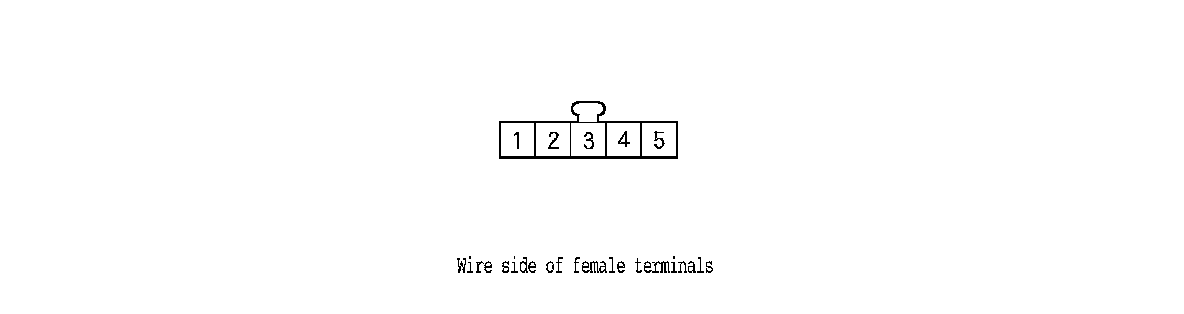

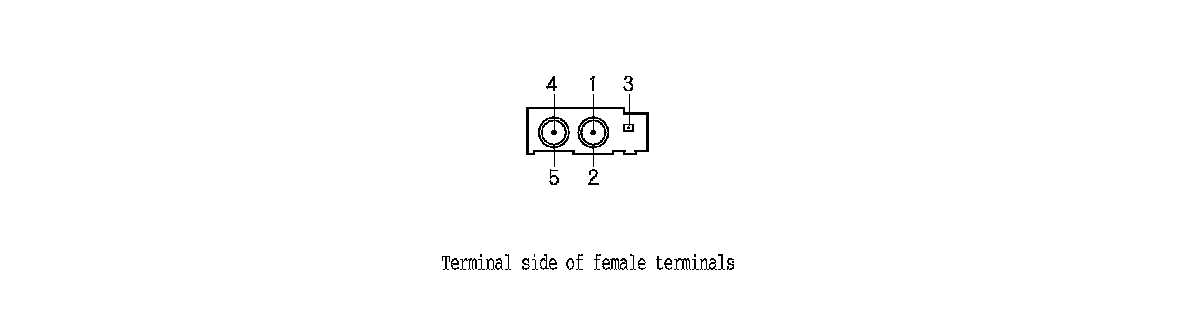

Audio-Navigation Unit Connector E (5P)

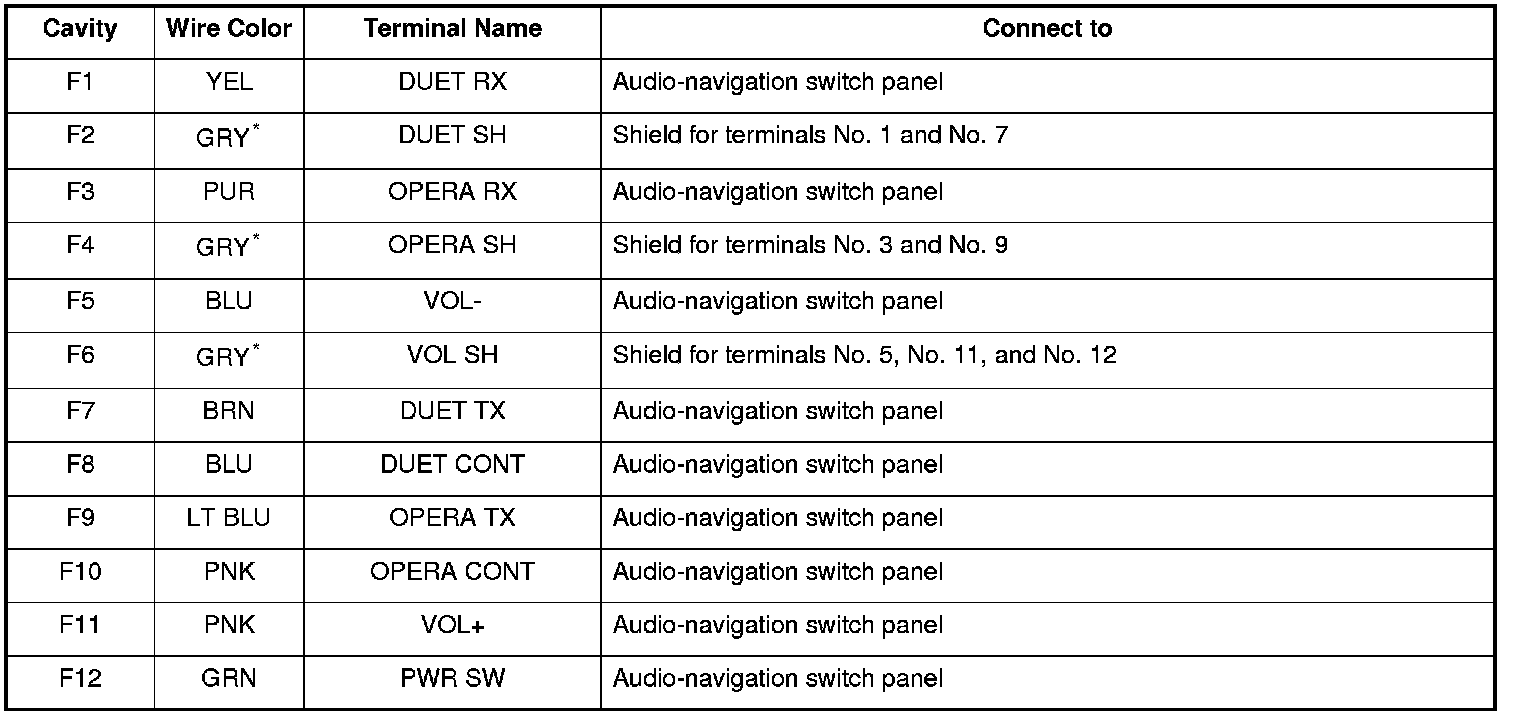

Audio-Navigation Unit Connector F (12P)









*: The shielded wires have a heat-shrunk tube insulating the outside of the wire. The color of the insulating tube, typically black or dark gray, may not match the color of the wire listed on the schematic.

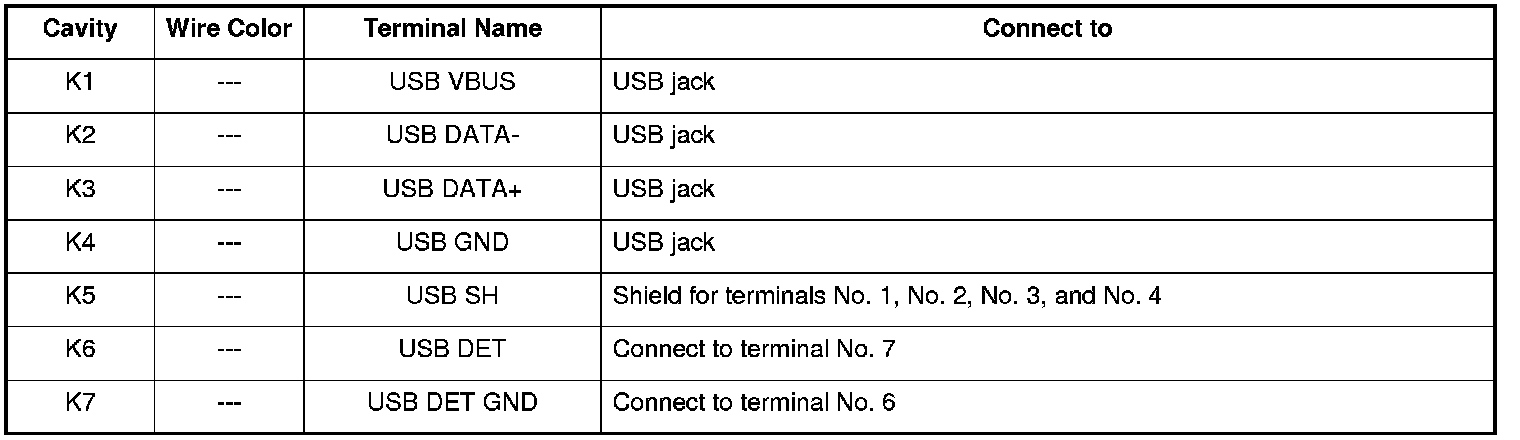

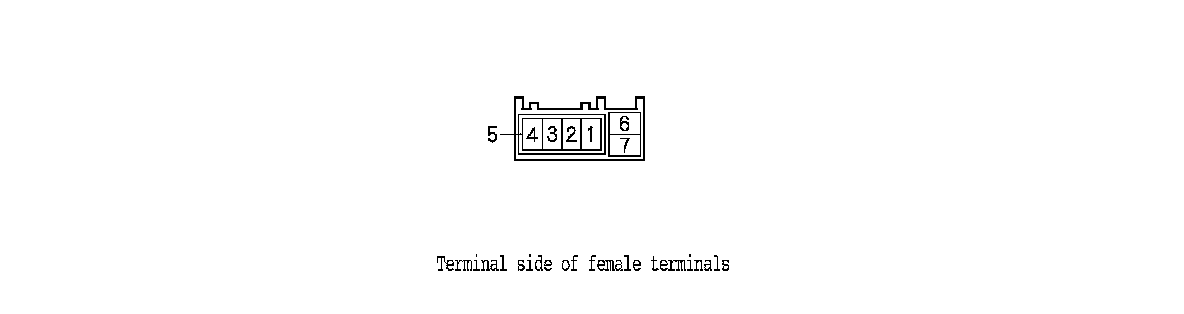

Audio-Navigation Unit Connector K (7P)









Audio Unit Connector for Inputs and Outputs

Without Navigation

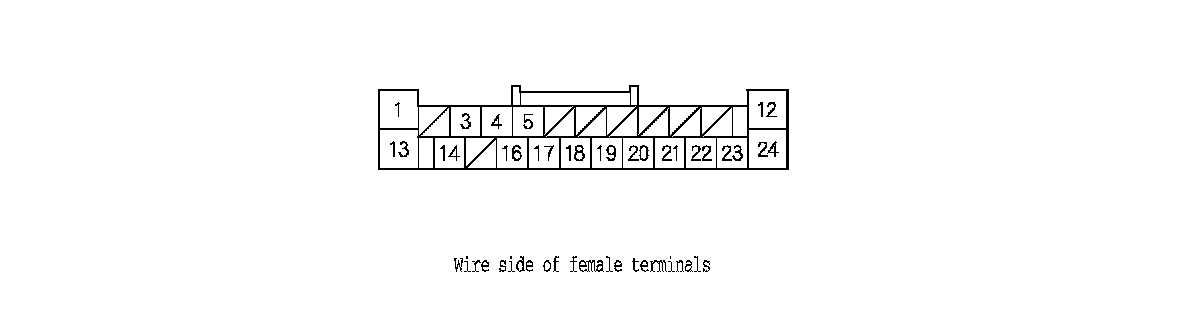

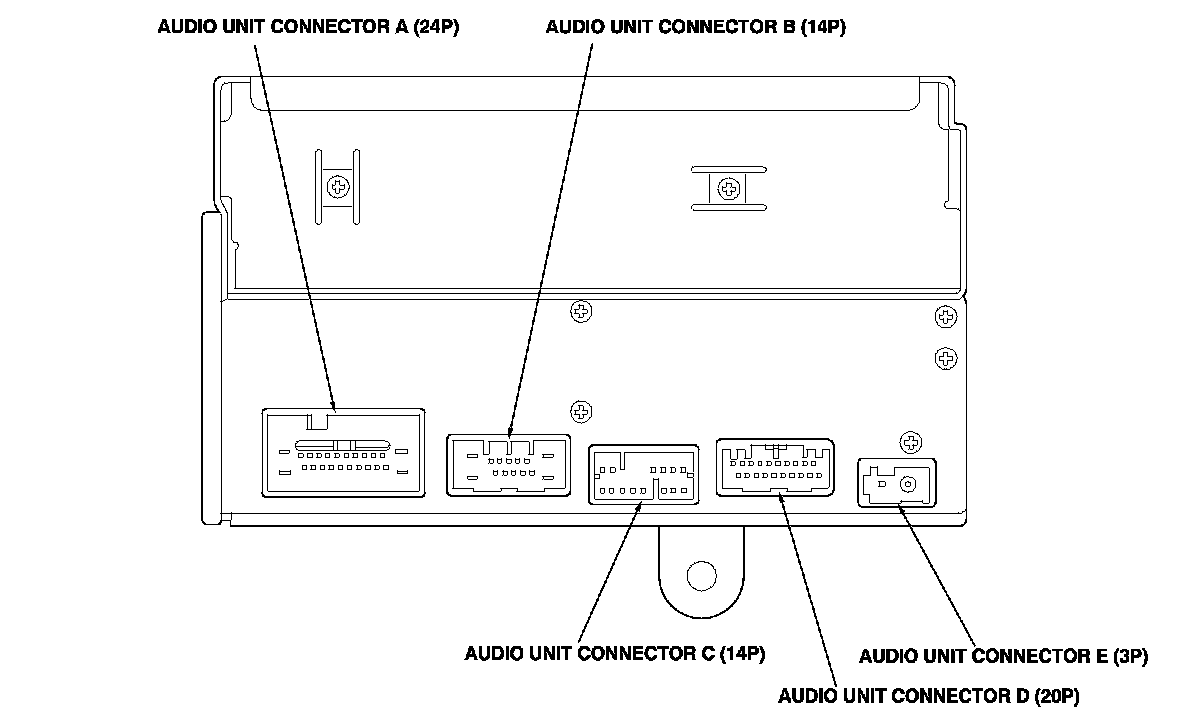

Audio Unit Connector A (24P)









*: The shielded wires have a heat-shrunk tube insulating the outside of the wire. The color of the insulating tube, typically black or dark gray, may not match the color of the wire listed on the schematic.

Audio Unit Connector B (14P)









*: The shielded wires have a heat-shrunk tube insulating the outside of the wire. The color of the insulating tube, typically black or dark gray, may not match the color of the wire listed on the schematic.

Audio Unit Connector C (14P)









*: The shielded wires have a heat-shrunk tube insulating the outside of the wire. The color of the insulating tube, typically black or dark gray, may not match the color of the wire listed on the schematic.

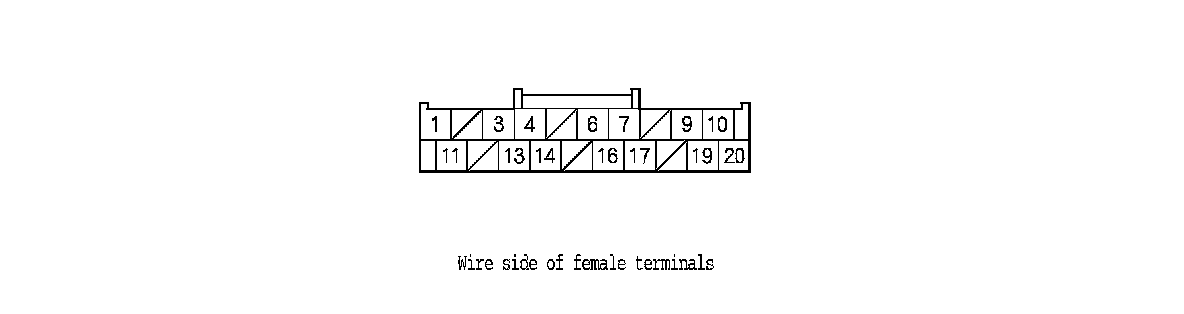

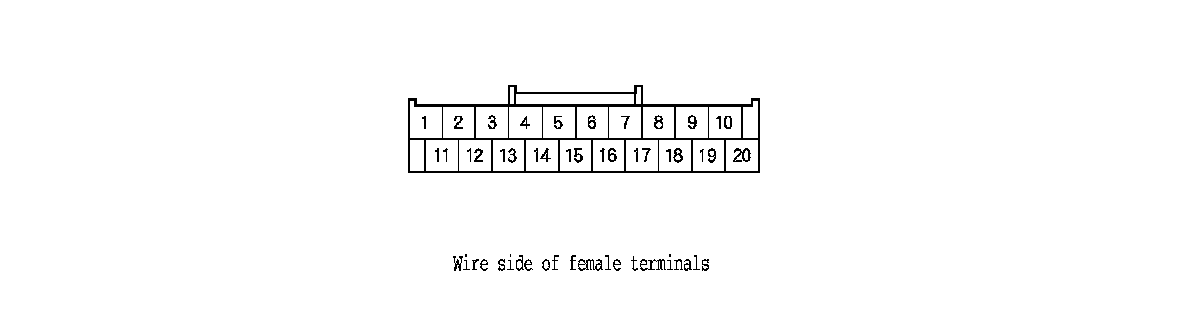

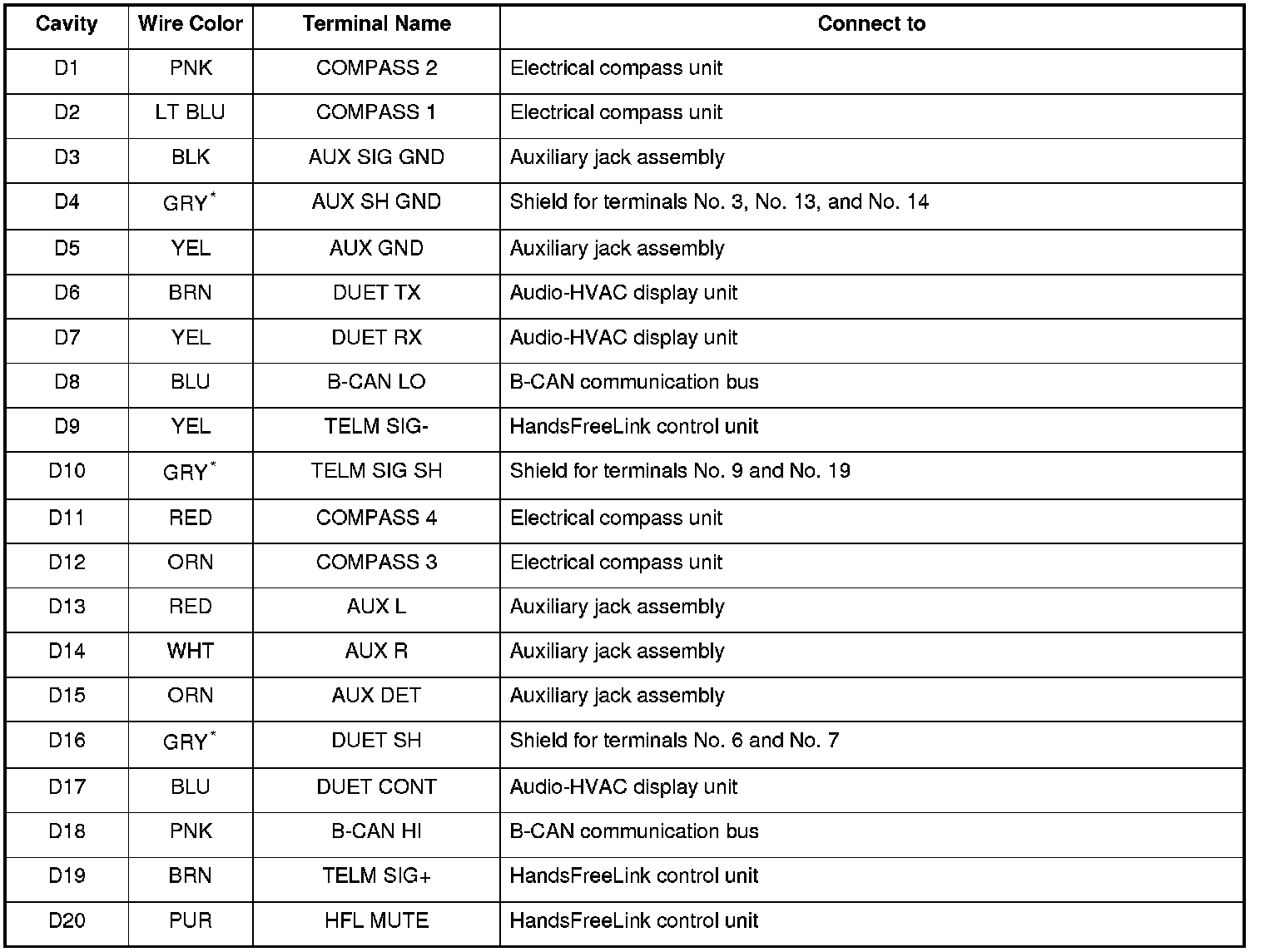

Audio Unit Connector D (20P)









*: The shielded wires have a heat-shrunk tube insulating the outside of the wire. The color of the insulating tube, typically black or dark gray, may not match the color of the wire listed on the schematic.

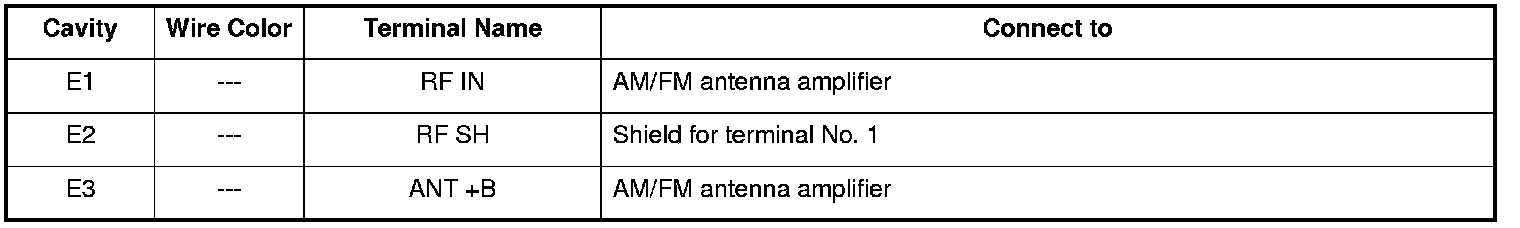

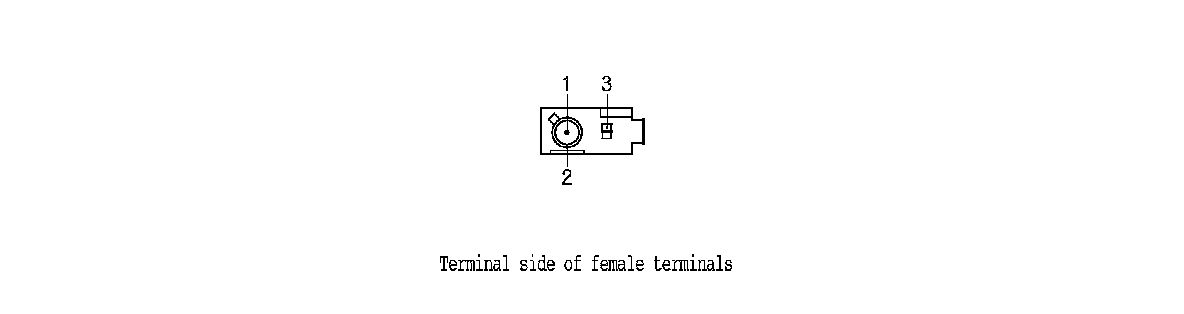

Audio Unit Connector E (3P)









Audio-Navigation Switch Panel for Inputs and Outputs (With navigation)

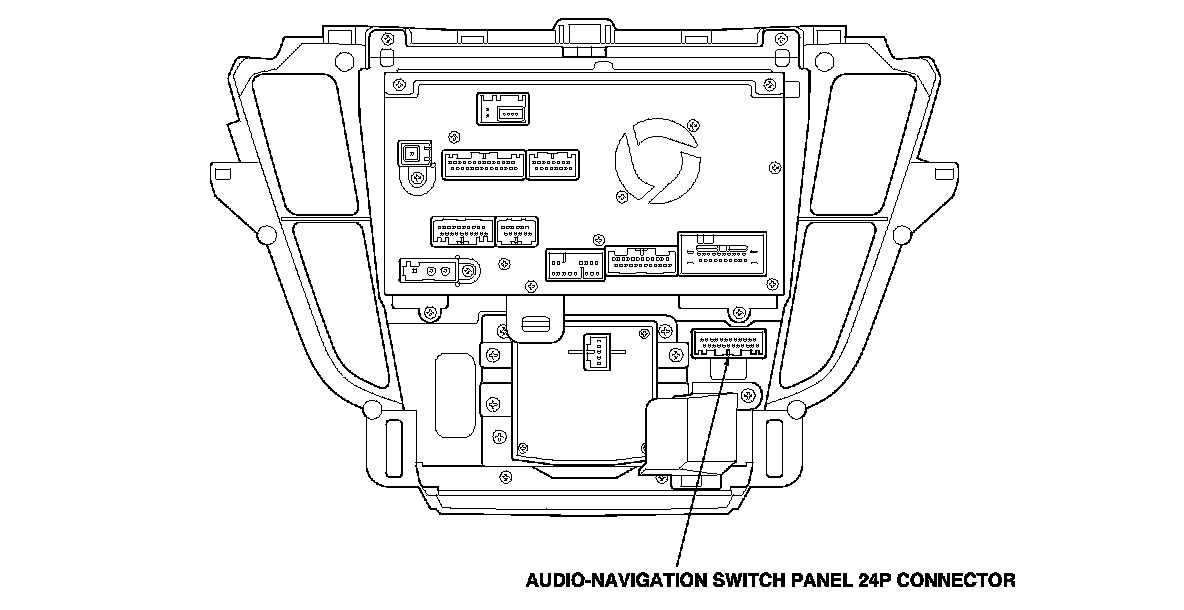

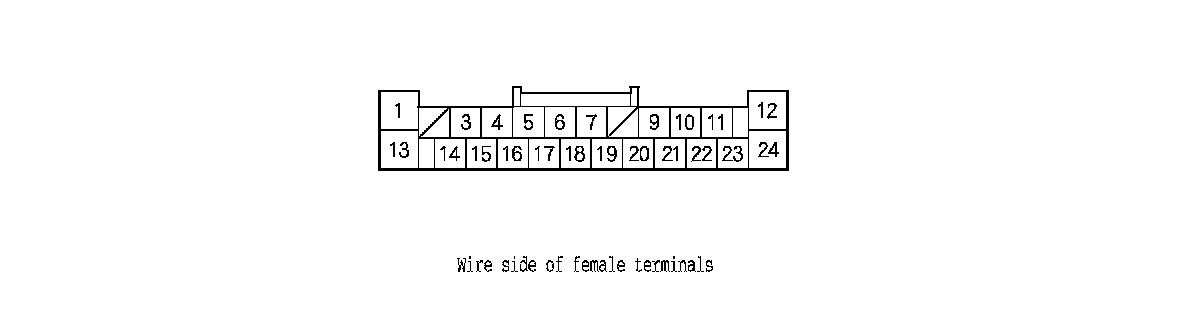

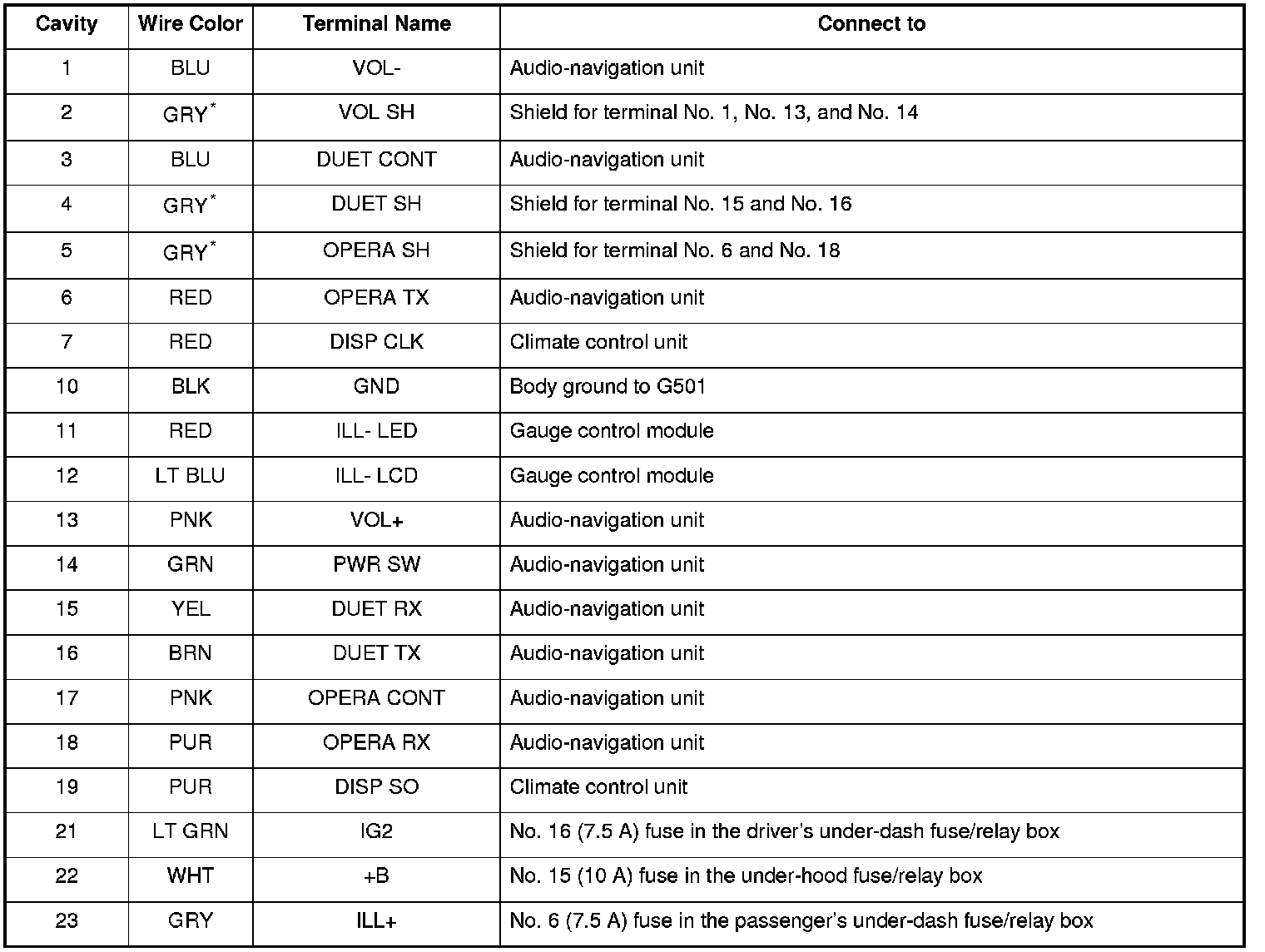

Audio-Navigation Switch Panel 24P Connector









*: The shielded wires have a heat-shrunk tube insulating the outside of the wire. The color of the insulating tube, typically black or dark gray, may not match the color of the wire listed on the schematic.

Stereo Amplifier Connector for Inputs and Outputs

With Navigation

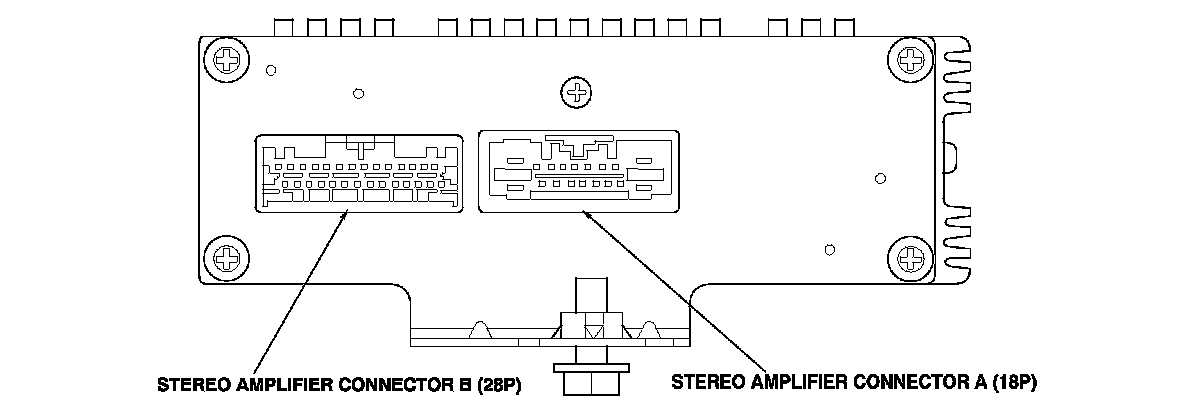

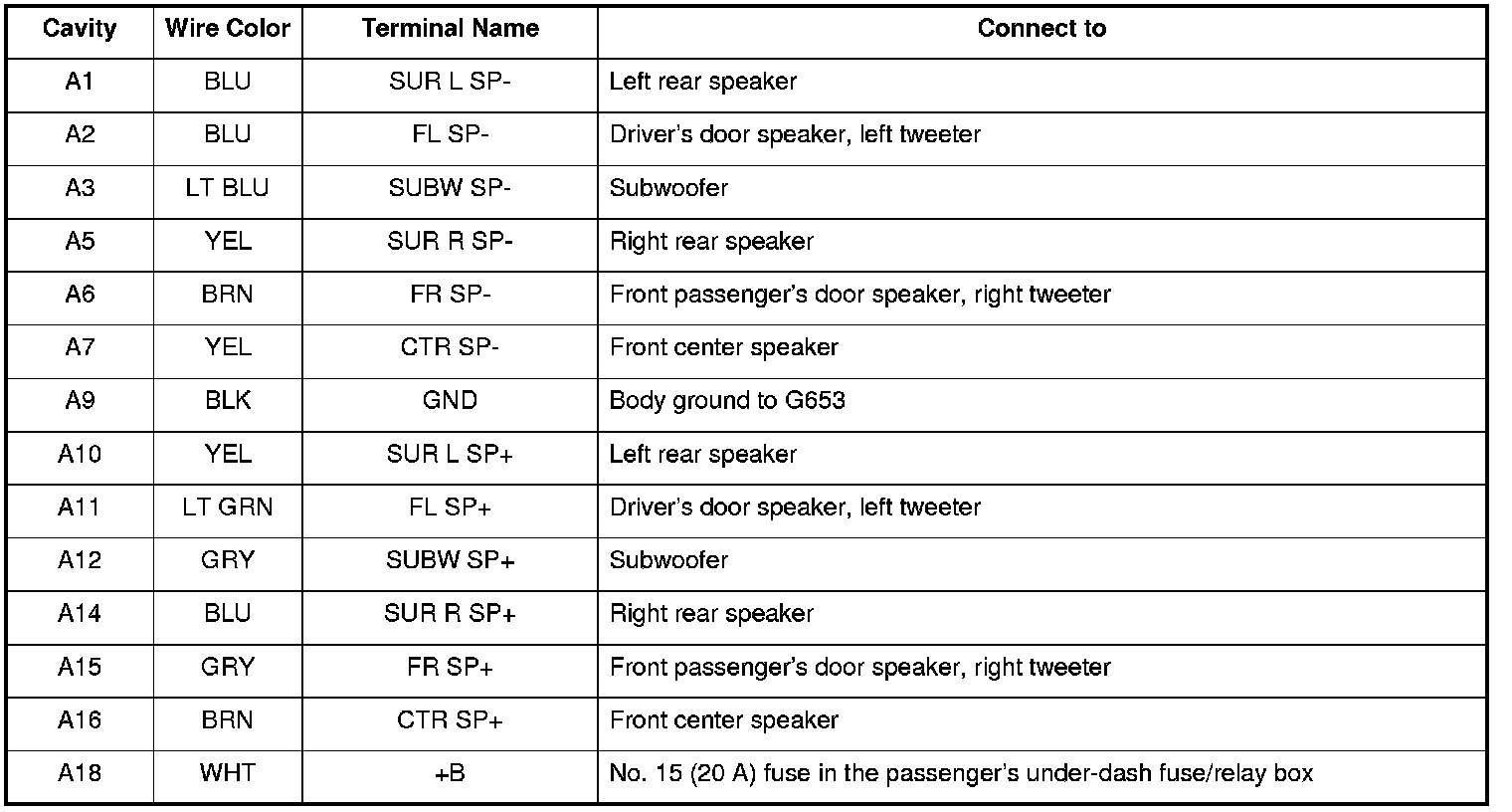

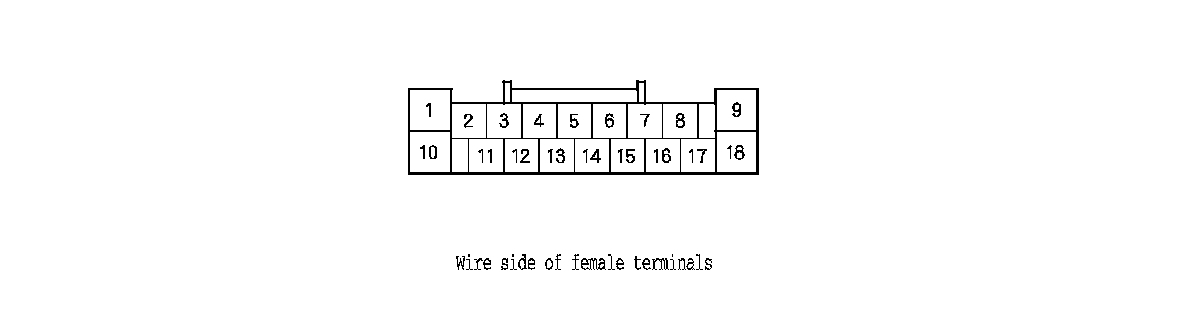

Stereo Amplifier Connector A (18P)

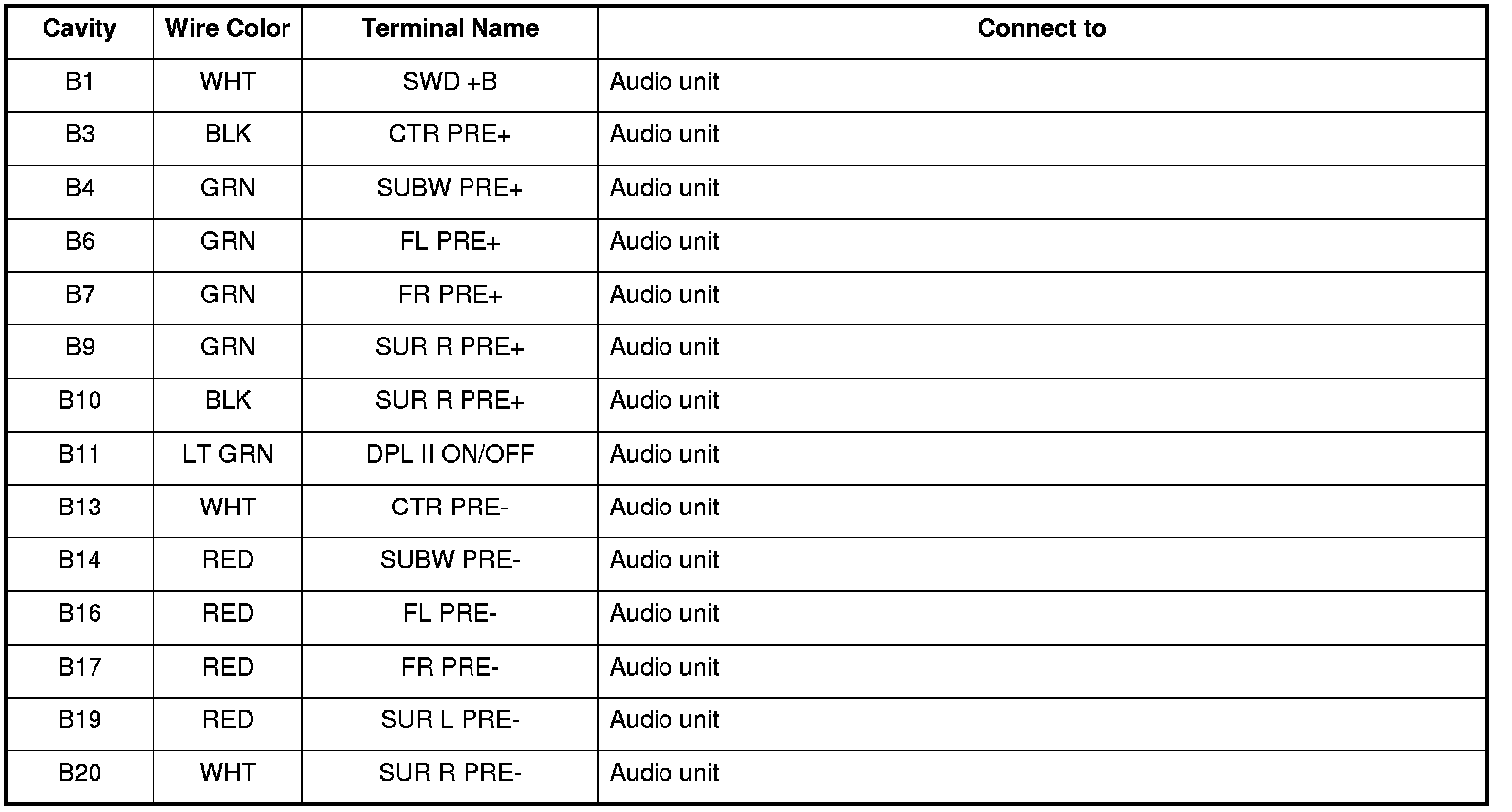

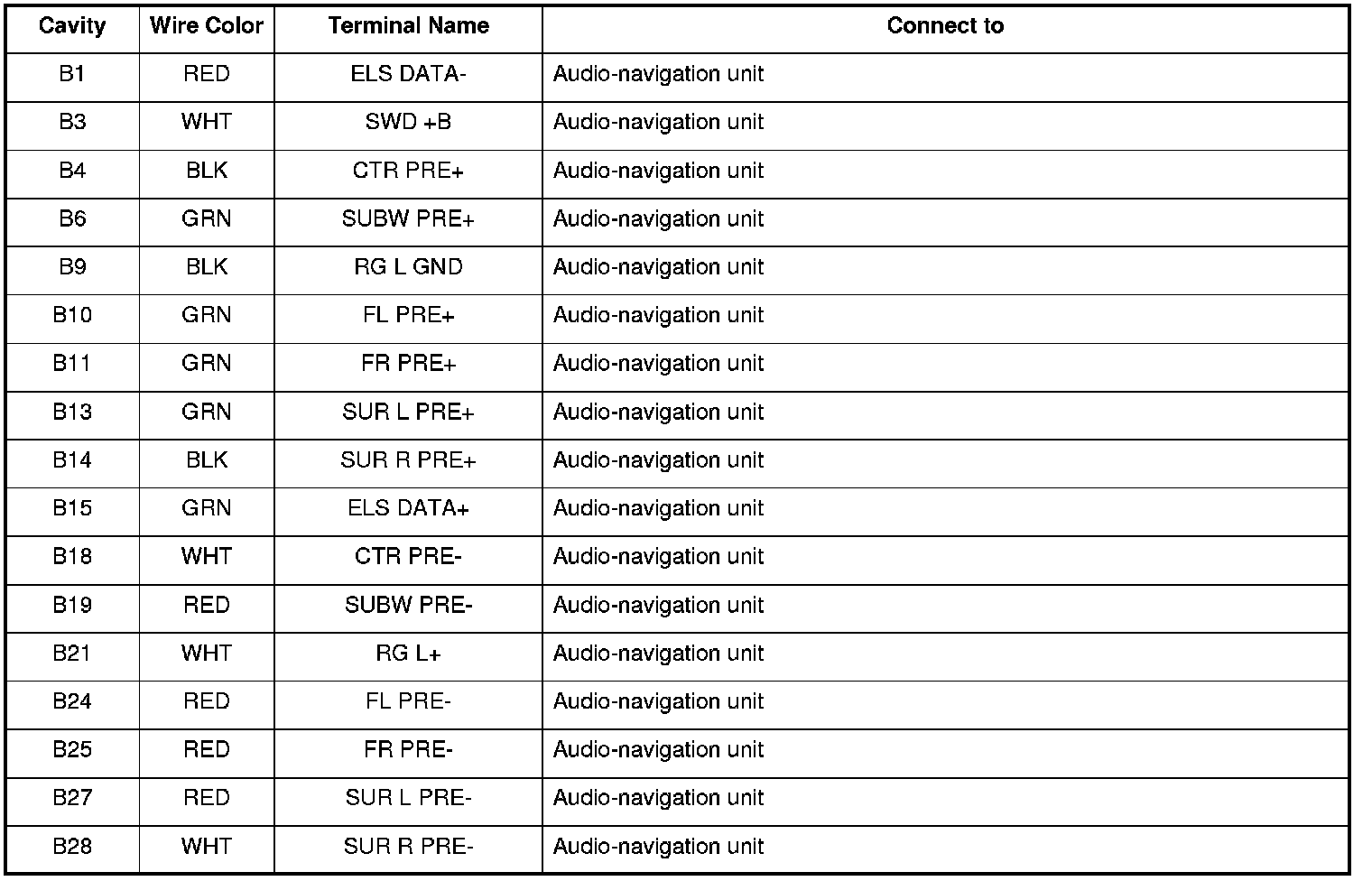

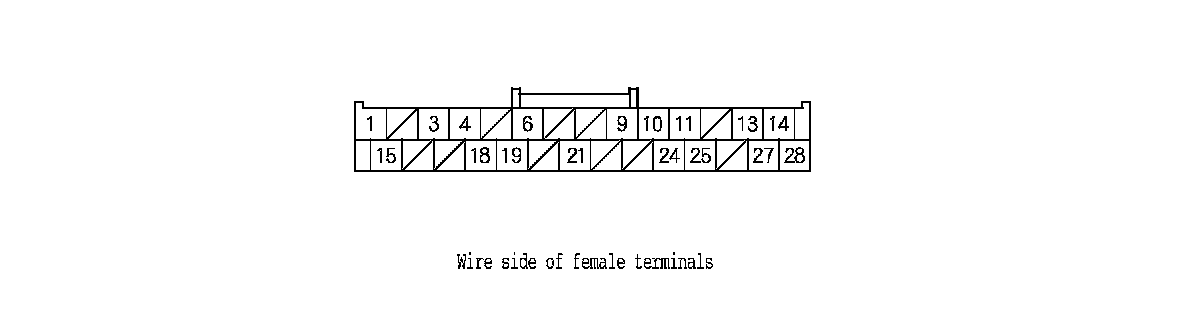

Stereo Amplifier Connector B (28P)









Stereo Amplifier Connector for Inputs and Outputs

Without Navigation

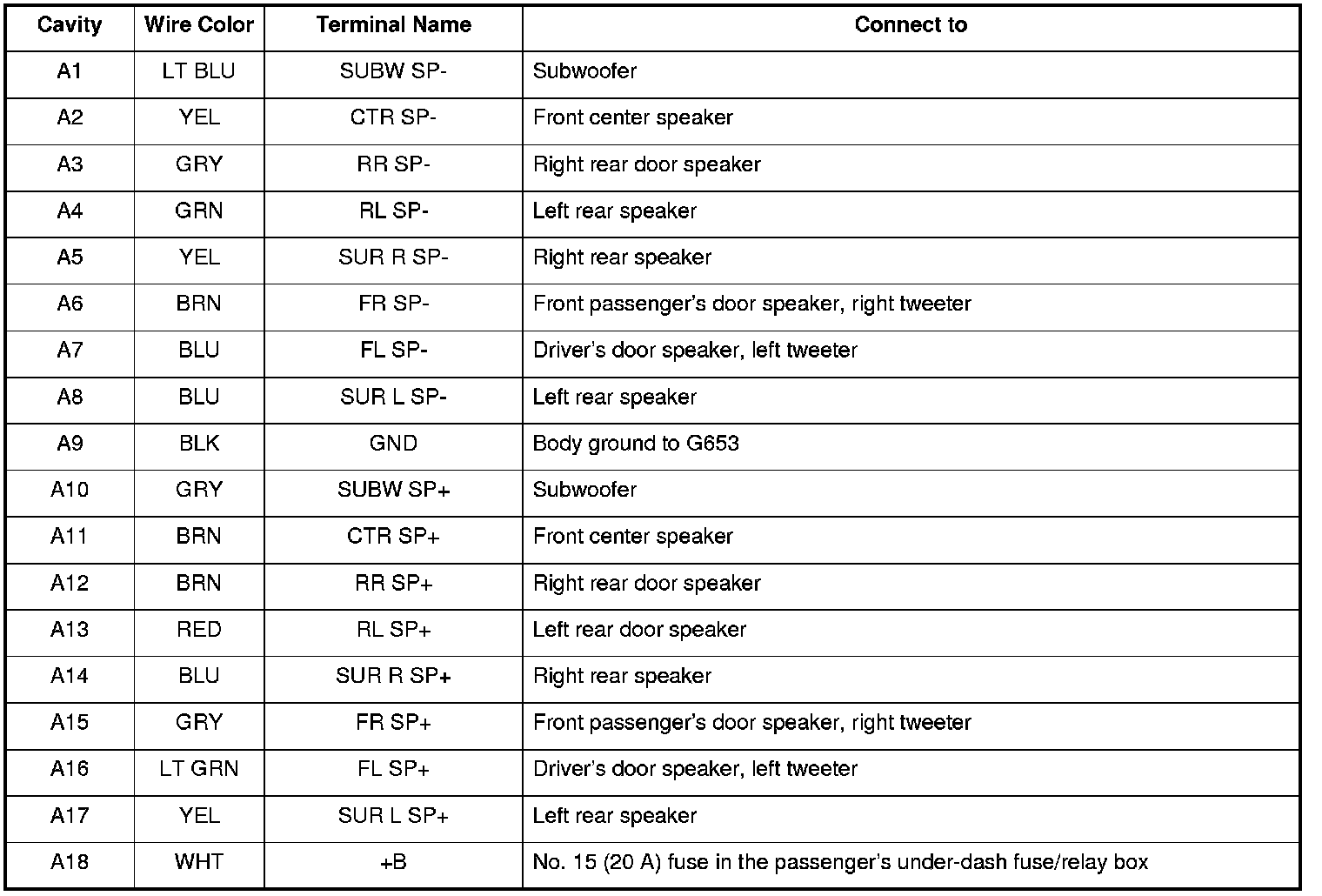

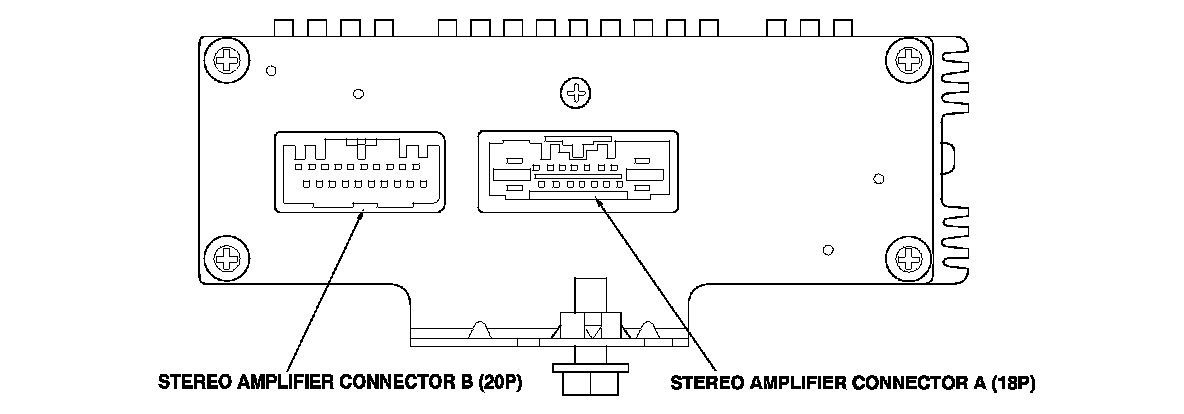

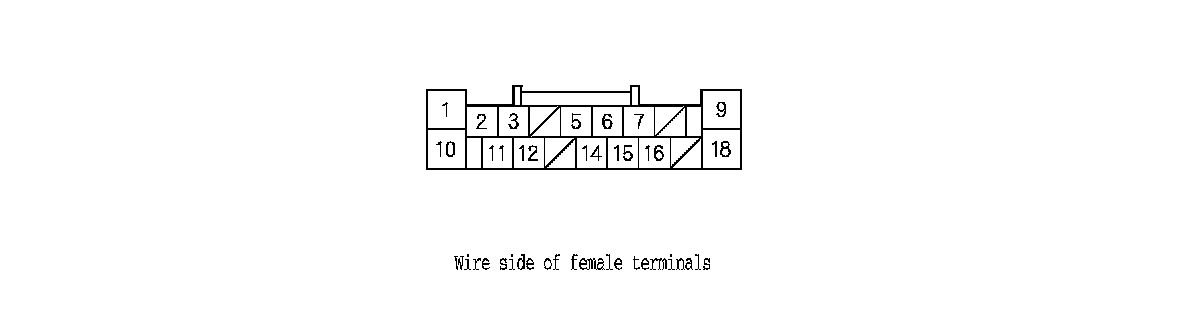

Stereo Amplifier Connector A (18P)









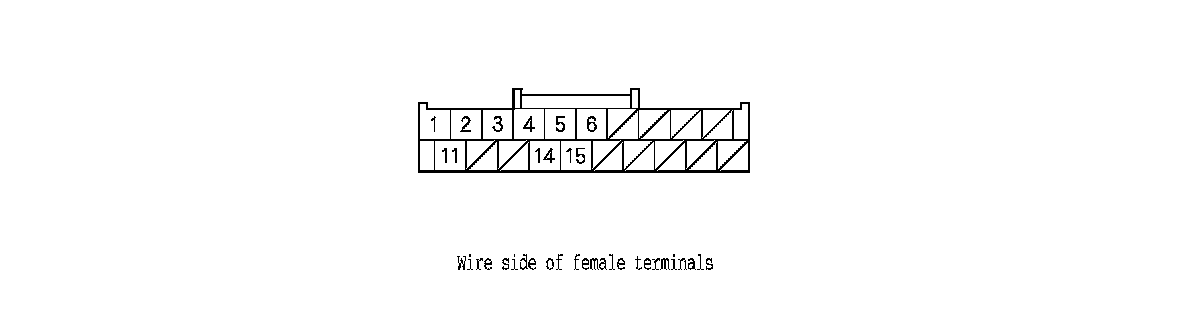

Stereo Amplifier Connector B (20P)









XM Receiver Connector for Inputs and Outputs (Without AcuraLink)

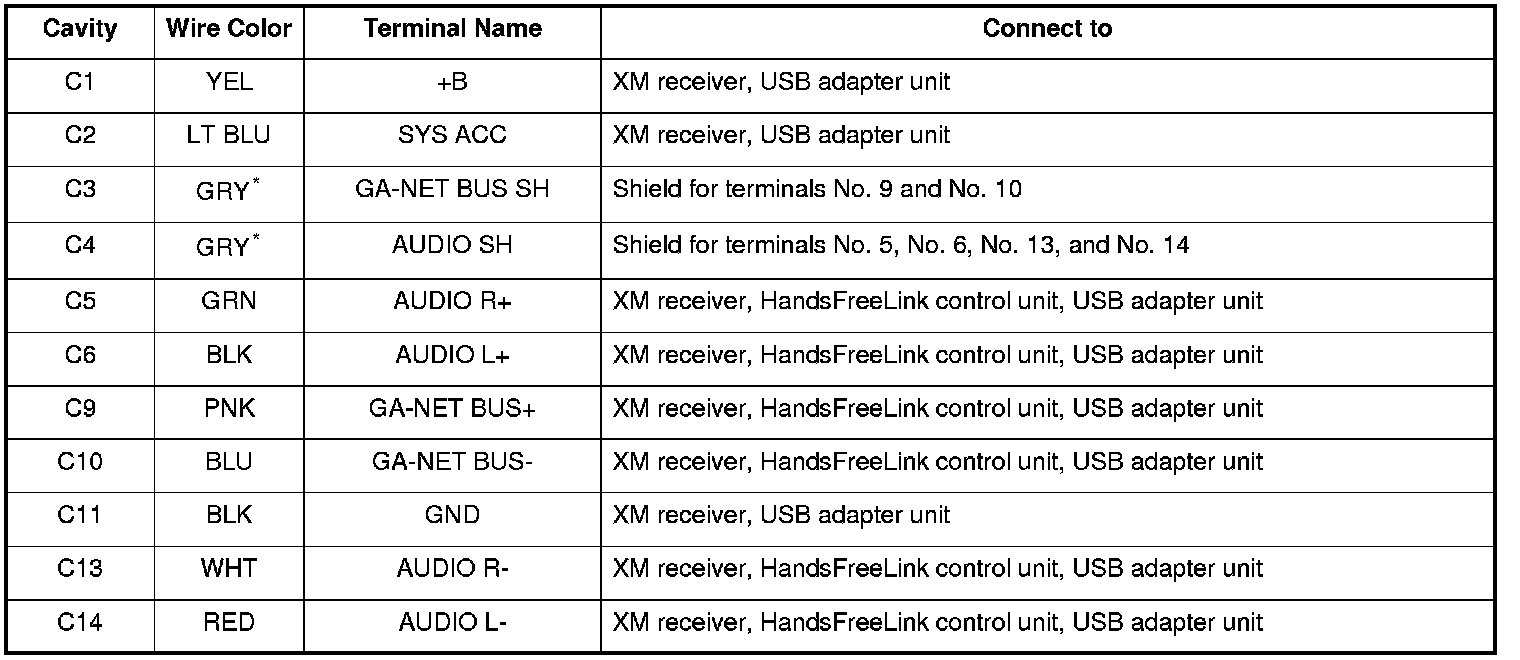

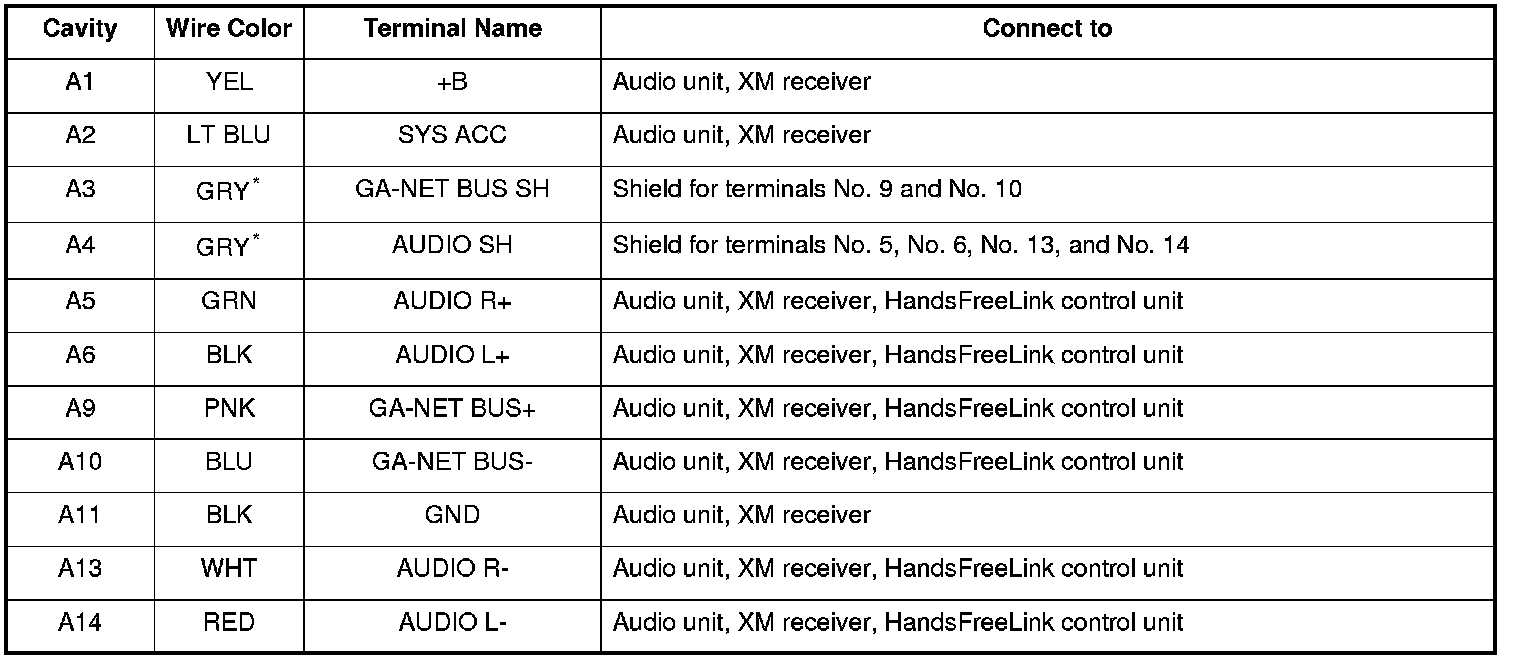

XM Receiver Connector A (14P)






With navigation





*: The shielded wires have a heat-shrunk tube insulating the outside of the wire. The color of the insulating tube, typically black or dark gray, may not match the color of the wire listed on the schematic.

Without navigation





*: The shielded wires have a heat-shrunk tube insulating the outside of the wire. The color of the insulating tube, typically black or dark gray, may not match the color of the wire listed on the schematic.

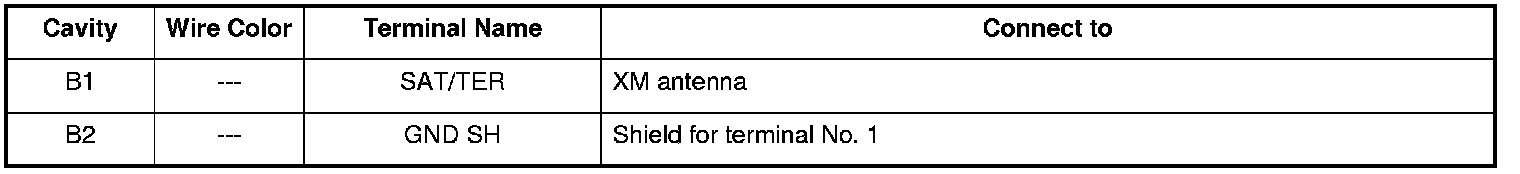

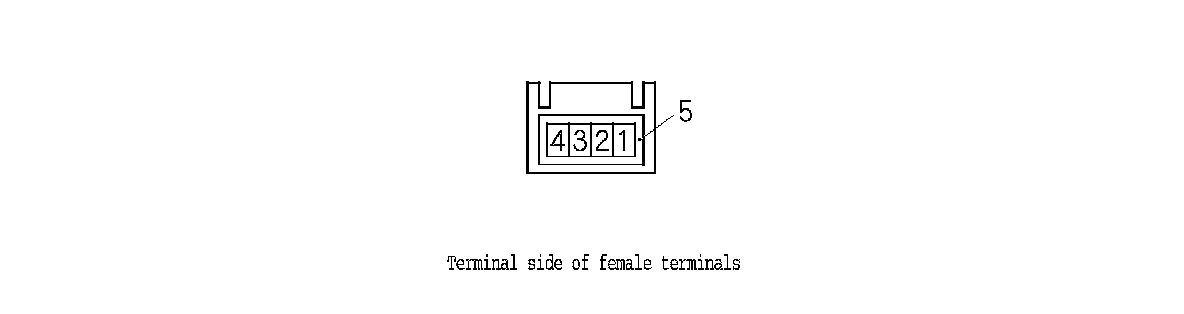

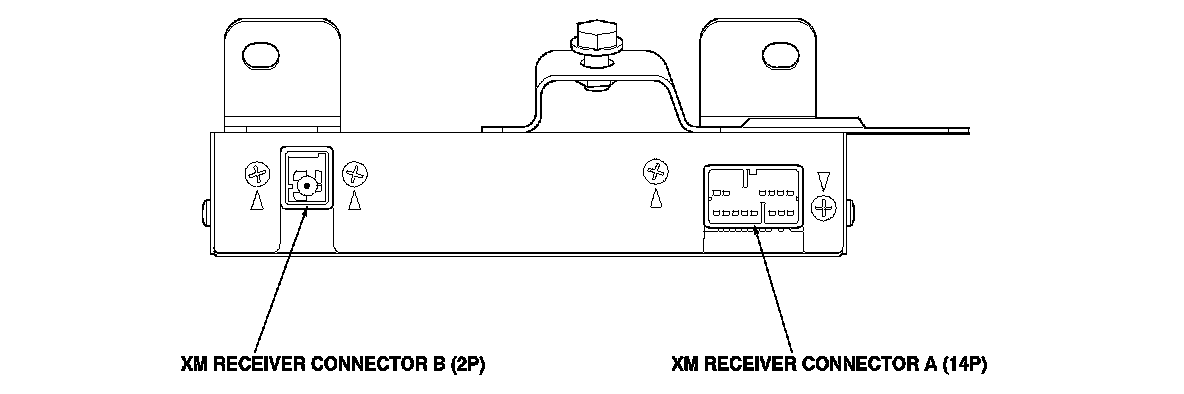

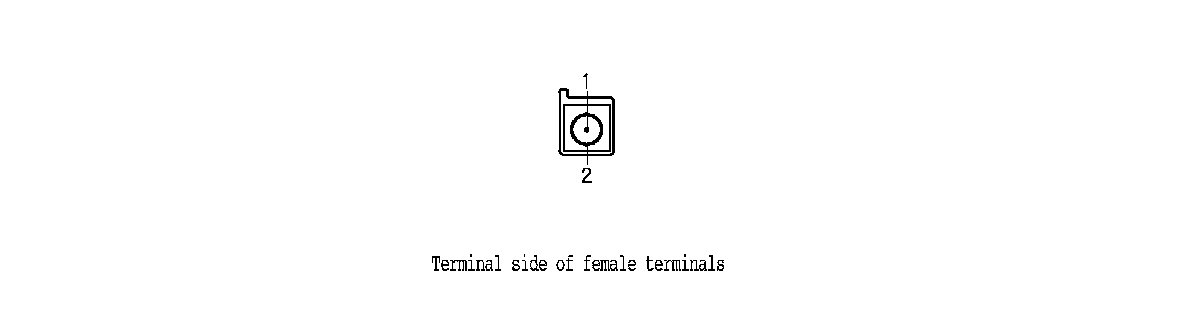

XM Receiver Connector B (2P)









USB Adapter Unit for Inputs and Outputs (Without navigation)

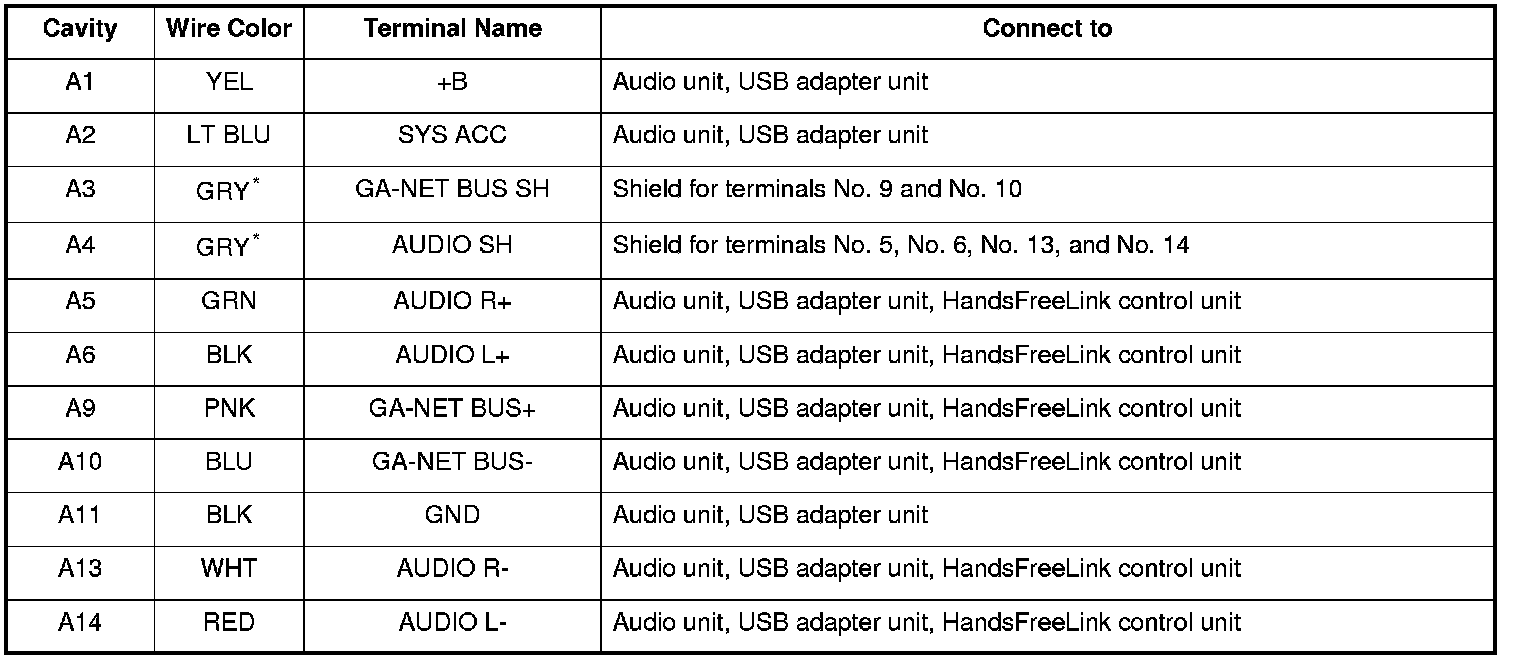

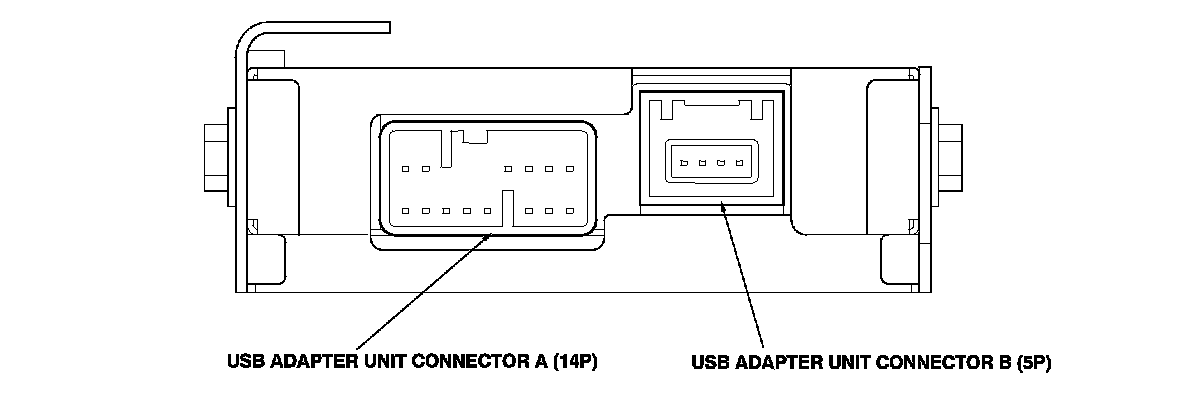

USB Adapter Unit Connector A (14P)









*: The shielded wires have a heat-shrunk tube insulating the outside of the wire. The color of the insulating tube, typically black or dark gray, may not match the color of the wire listed on the schematic.

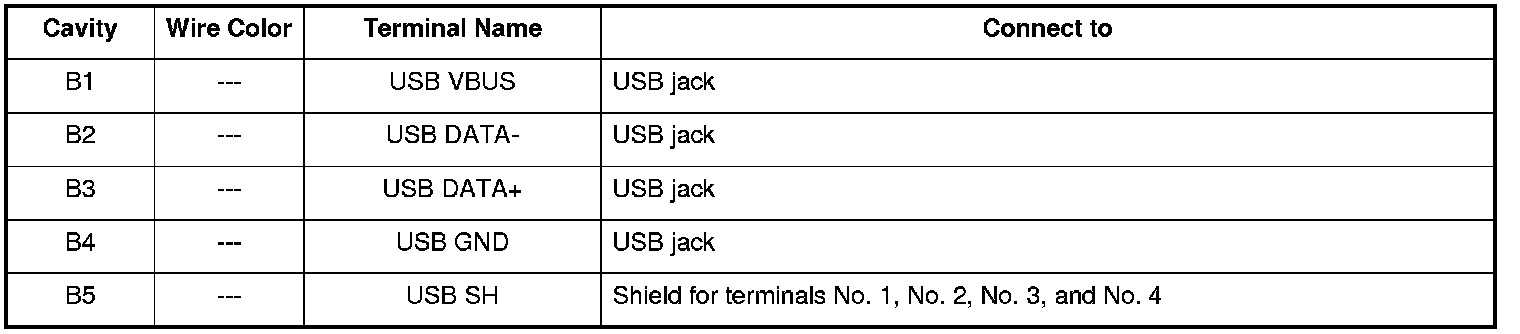

USB Adapter Unit Connector B (5P)









Audio-HVAC Display Unit Connector for Inputs and Outputs (Without navigation)

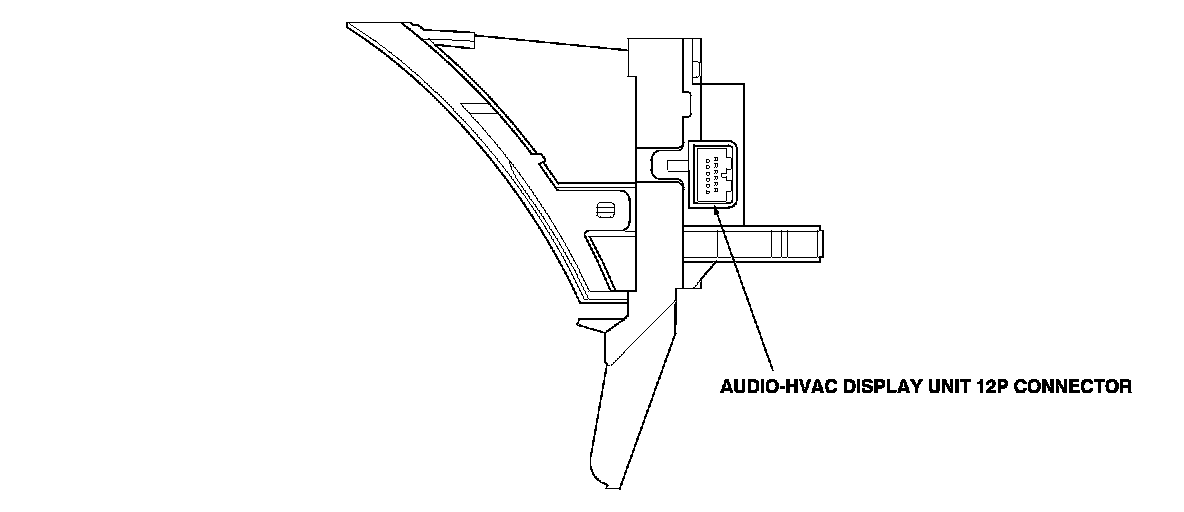

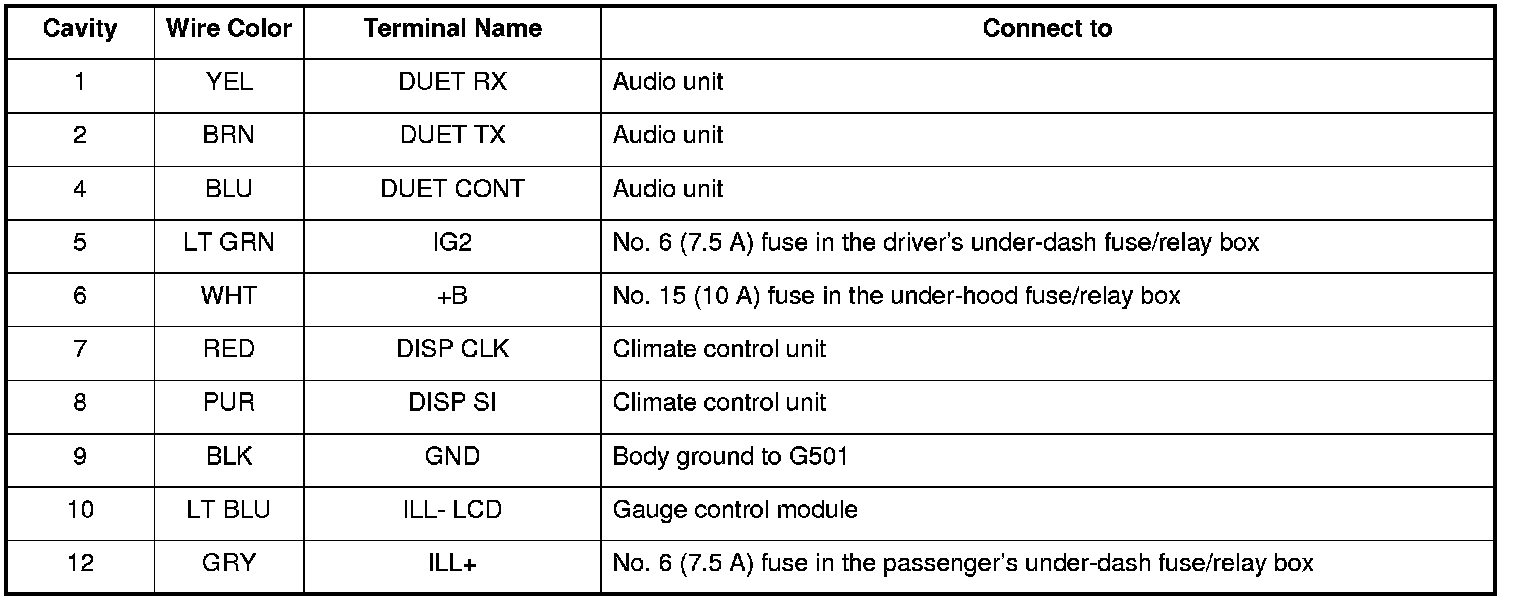

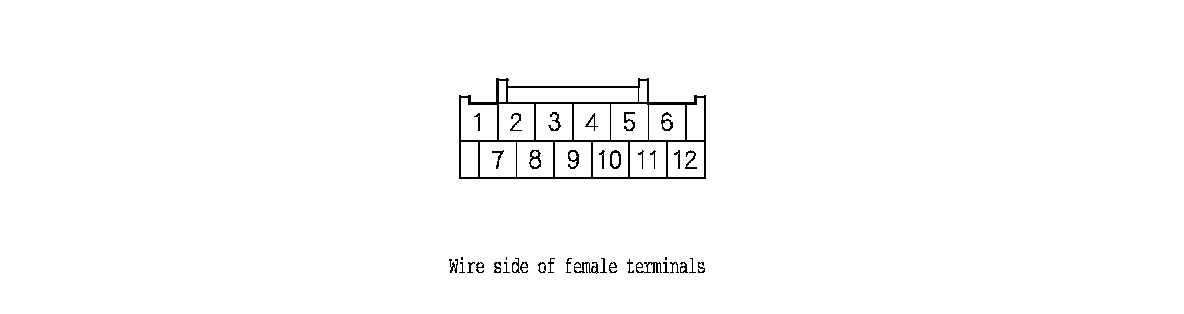

Audio-HVAC Display Unit 12P Connector









Auxiliary Jack Assembly Connector for Inputs and Outputs

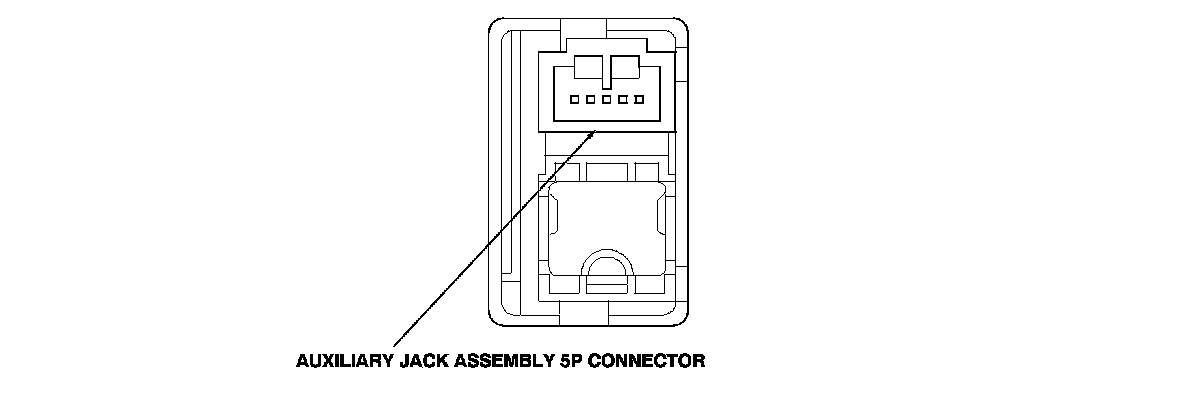

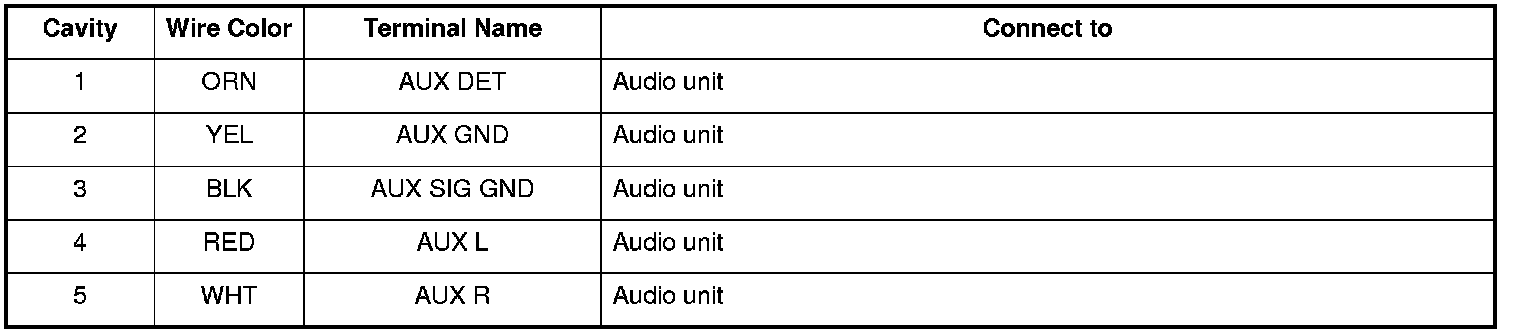

Auxiliary Jack Assembly 5P Connector






With navigation





Without navigation
