Part 1
Audio System Description
Overview
The audio unit acts as the processor for all audio functions. Select audio functions from the audio unit buttons or the audio remote switch (on the steering wheel). The center display provides the current audio status.
The audio unit has a built-in EEPROM (electrically erasable programmable read-only memory). This memory holds the audio presets (AM/FM radio frequency, sound settings, etc.) even when the battery is disconnected.
A security signal is daisy-chained between the audio and vehicle components for integration into the vehicle's security system.
There are two audio systems available for the TL:
- The ELS audio system is available on vehicles with navigation. It includes surround sound with 10 speakers.
- The premium audio system is on vehicles without navigation. It includes 8 speakers.

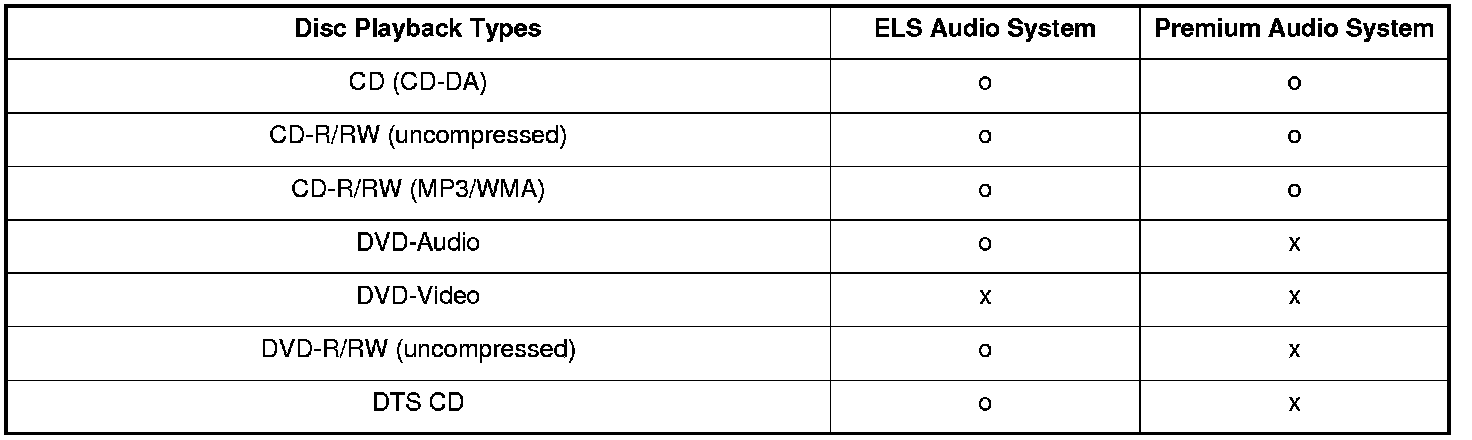

o: Available
x: Not available
HDD recording
The navigation system uses a HDD (hard disc drive) and can store music. To record music to the HDD, you must use an original CD or uncompressed CD-R files. The music must be loaded on a CD using the CD player. You cannot load music through the USB adapter or auxiliary jack.
Telematics Muting Logic
The optional navigation system provides voice control for the audio, the XM, and the CD player. Voice control commands are communicated through the GA-Net (audio unit). When using the TALK/BACK buttons or route guidance (RG), the center speaker is muted and you hear the navigation instructions through the front speakers. When using the HFL/AcuraLink, the center speaker, the rear speakers, and the subwoofer are muted and the front speakers give the telephone sound. When using the HFL/AcuraLink and the RG (Route Guidance) or the TALK/BACK buttons, the rear speakers are muted and you hear the telephone sound and navigation instructions through the front speakers. Muting commands are passed on the GA-Net bus. For more information, see the navigation section. The outline of the audio interruption function is shown in the following table.
Bluetooth Audio
Bluetooth audio allows approved Bluetooth cell phones equipped with music function to play music via a car audio system using Bluetooth technology. You can control the phone's music player remotely using the wireless connection.
- You can play music stored in your cell phone using the wireless connection*1.
- You can choose next song, previous song and resume/pause via wireless*2.
*1: Call phone must support AVRCP1.0, A2DP1.0 for Bluetooth technology, and also be on the Honda approved HFL list at handsfreelink.com.
*2: Not all phones support the bluetooth audio function.
Supported Devices
- Bluetooth music phones that support AVRCP1.0/A2DP1.0.
- Bluetooth adapters for portable music devices including iPod are not supported.
NOTE:
- Availability of the functions depends on the connected device.
- The latest support information is updated through the web site handsfreelink.com.
Pairing a cell phone
To pair a cell phone, refer to pairing a cell phone in the HandsFreeLink system. Initial Inspection and Diagnostic Overview Once a cell phone is paired, the process does not have to be repeated for the phone.

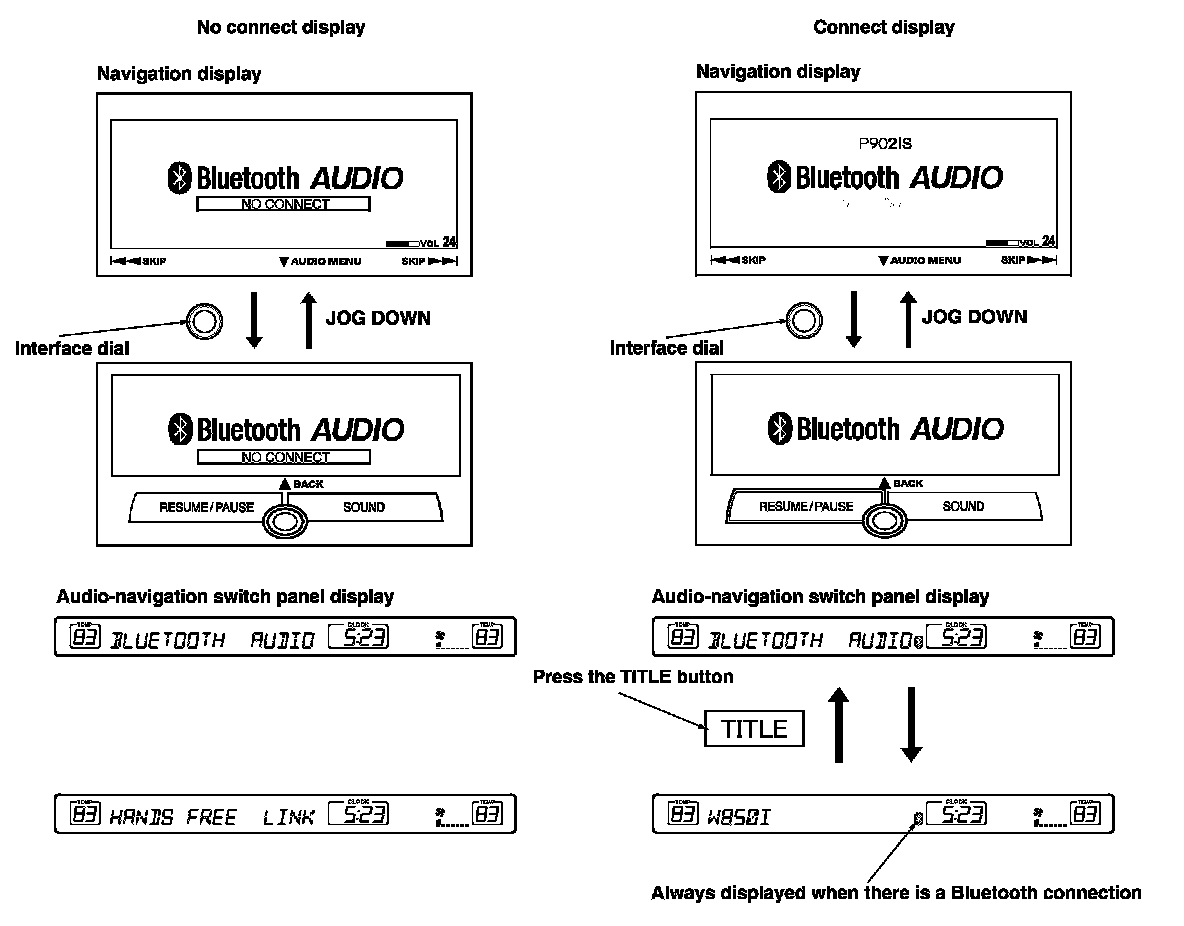

How to Play the Bluetooth Audio
Procedure

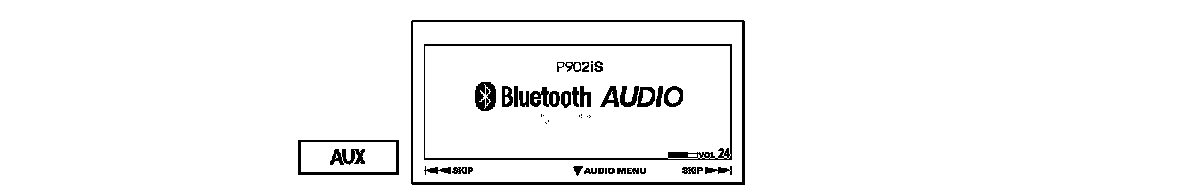

1. Push the AUX button to select Bluetooth Audio source.
NOTE:
- If you push the AUX button when no cell phone is connected, NO CONNECT is displayed.
- If you see NO CONNECT when you are using the cell phone music function, check that the device is properly paired. If it is paired, the cell phone may not be compatible. See handsfreelink.com for more information.
- Music titles and artist names are not displayed.
2. Start playing the music in the paired cell phone.
NOTE: Depending on the cell phone, the music may start automatically, or the user may need to select headset as an audio output.
3. A user can select the next song or the previous song using the SKIP button.

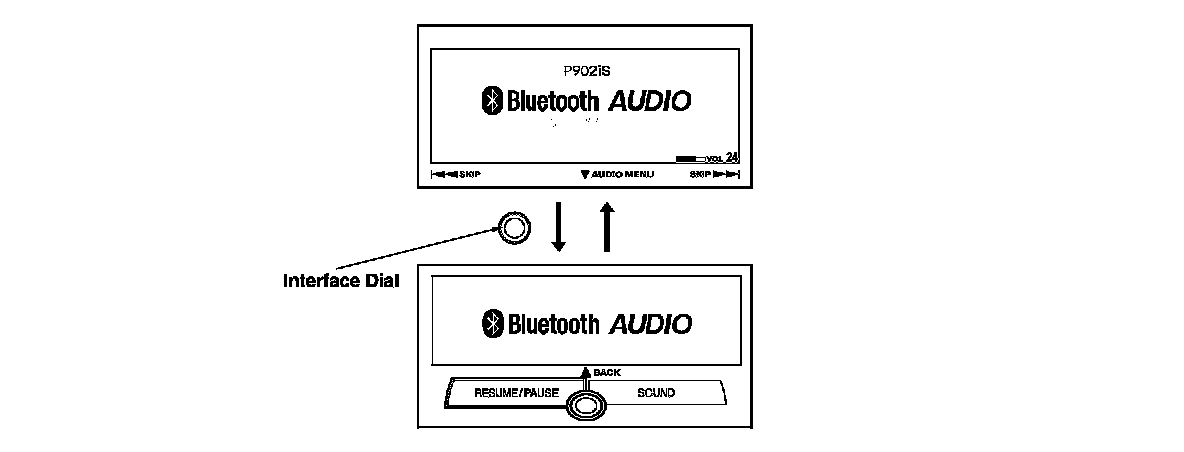

4. A user can select pause and resume by selecting [RESUME/PAUSE] in the AUDIO MENU using the interface dial.

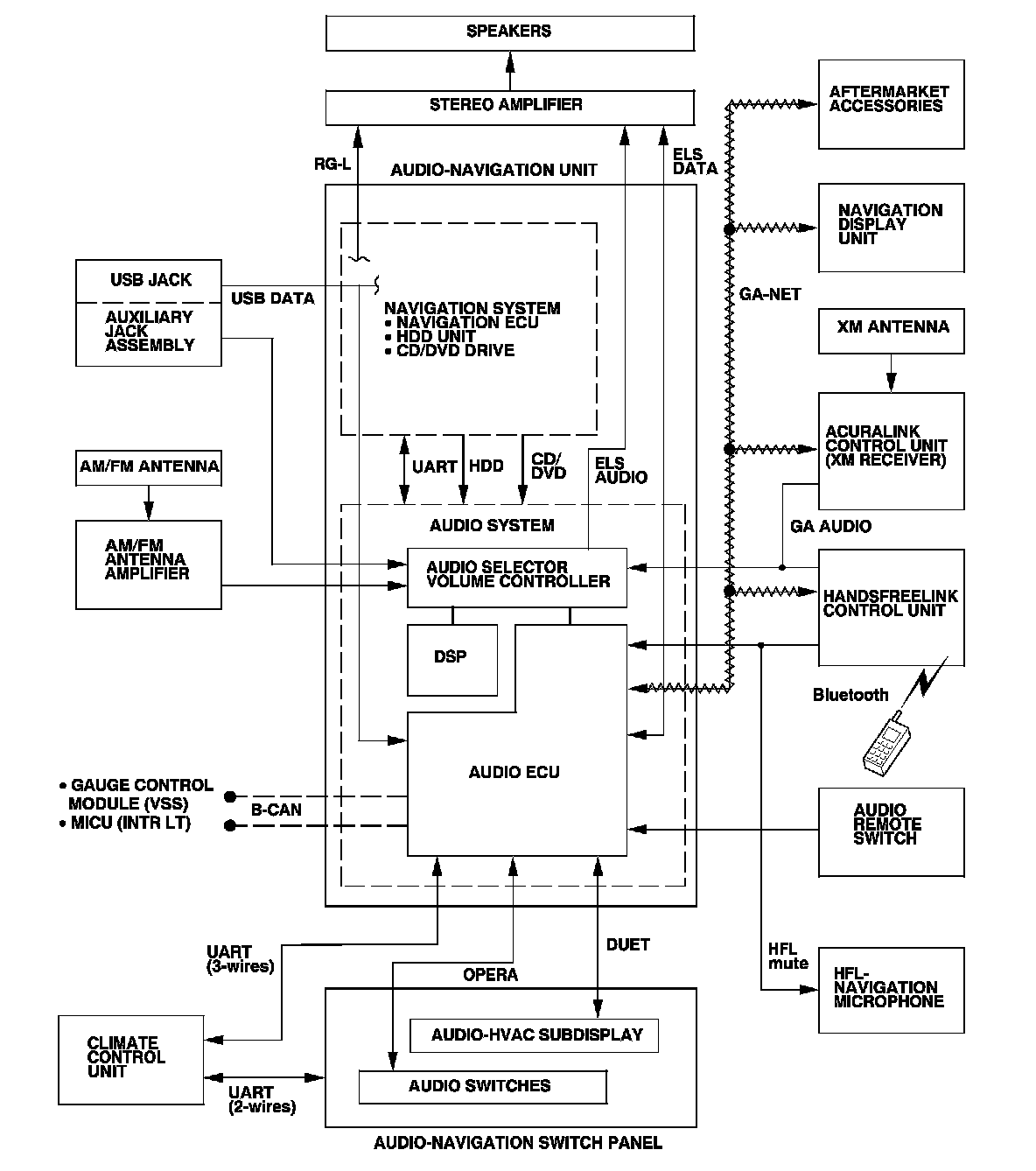

With Navigation

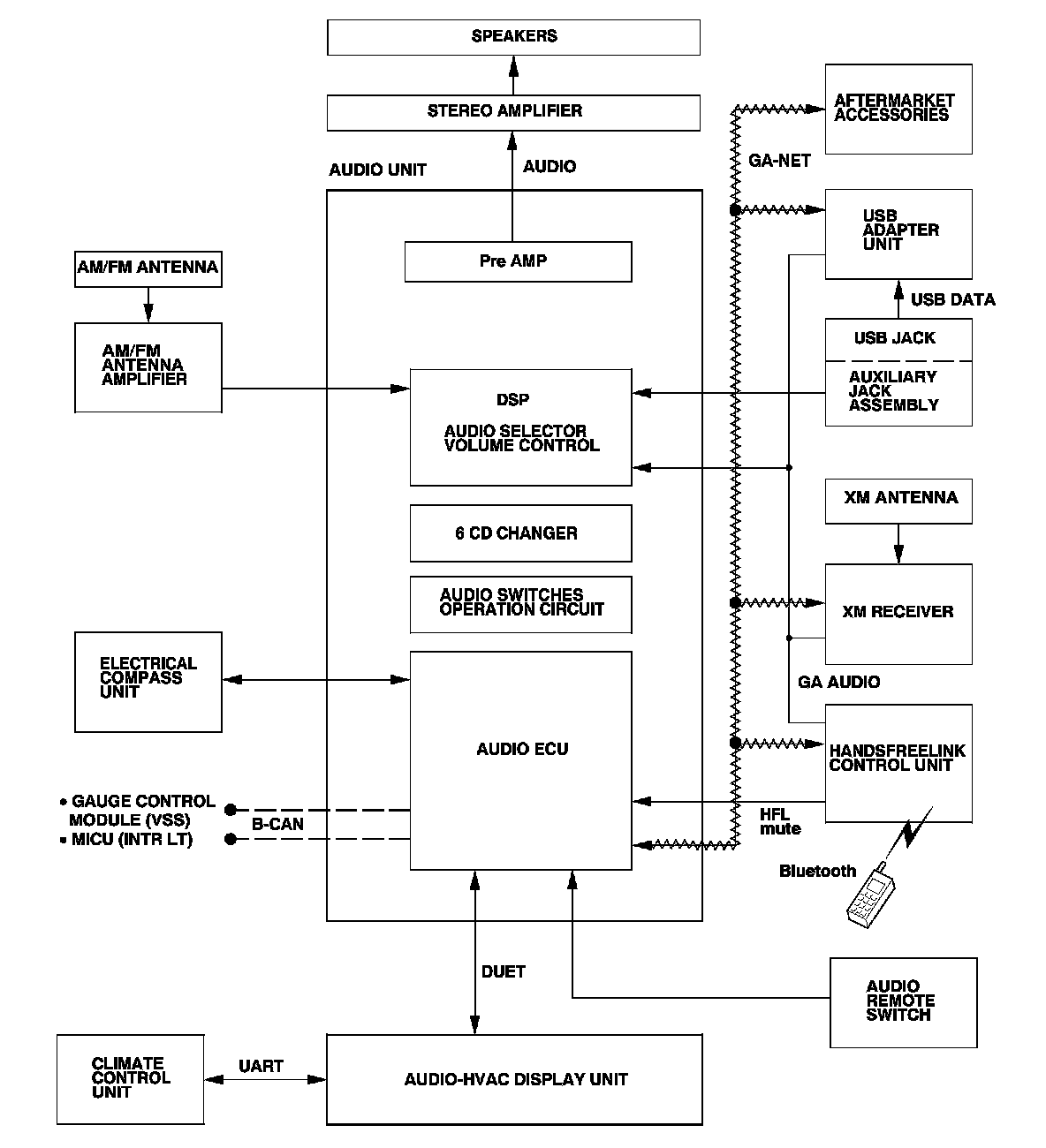

Without Navigation
Disc Handing and Cleaning
To avoid damaging or leaving fingerprints on a disc (CD, DVD, DVD-A, etc.), always handle it by the edges and place it in a jewel case whenever it is outside the audio or the audio-navigation unit. Deep scratches or fingerprints on the back of the disc can cause loading problems, poor sound quality, skipping, or other errors.
Smudges and fingerprints can be carefully removed using a mild cleaner and tissues designed to clean eyeglasses. To clean a disc, use a clean soft cloth. Very gently wipe across the disc from the center to the outside edge, never in a circular motion.
Do not place stabilizer rings or labels on the disc.
With Navigation
Without Navigation
NOTE: All items may not apply to this vehicle. See the owner's manual for more information.

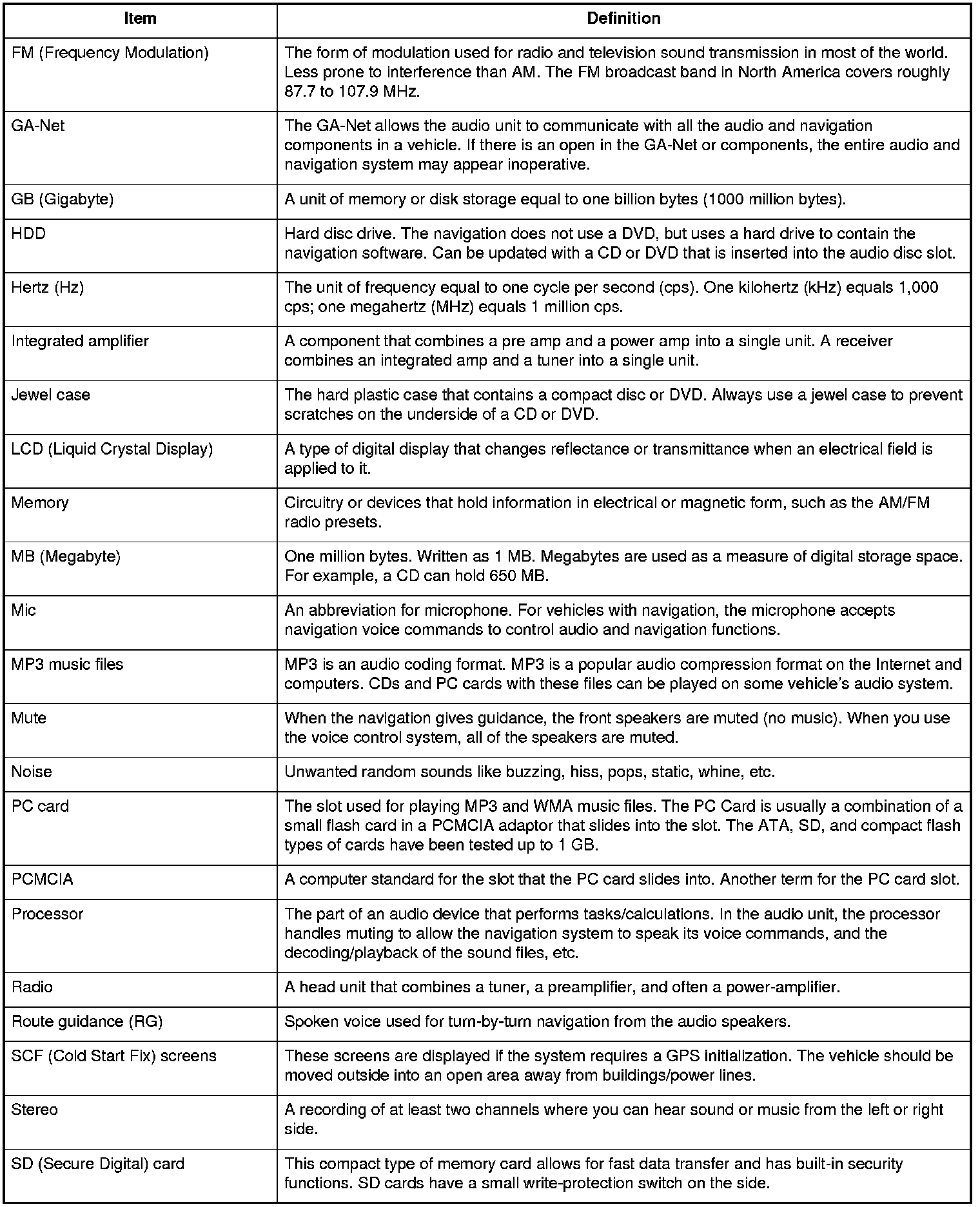

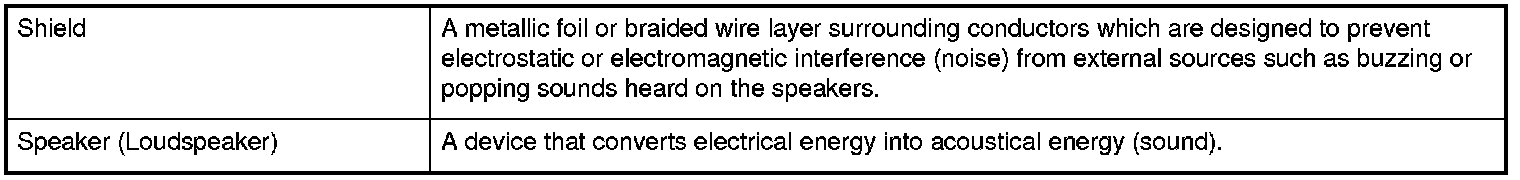

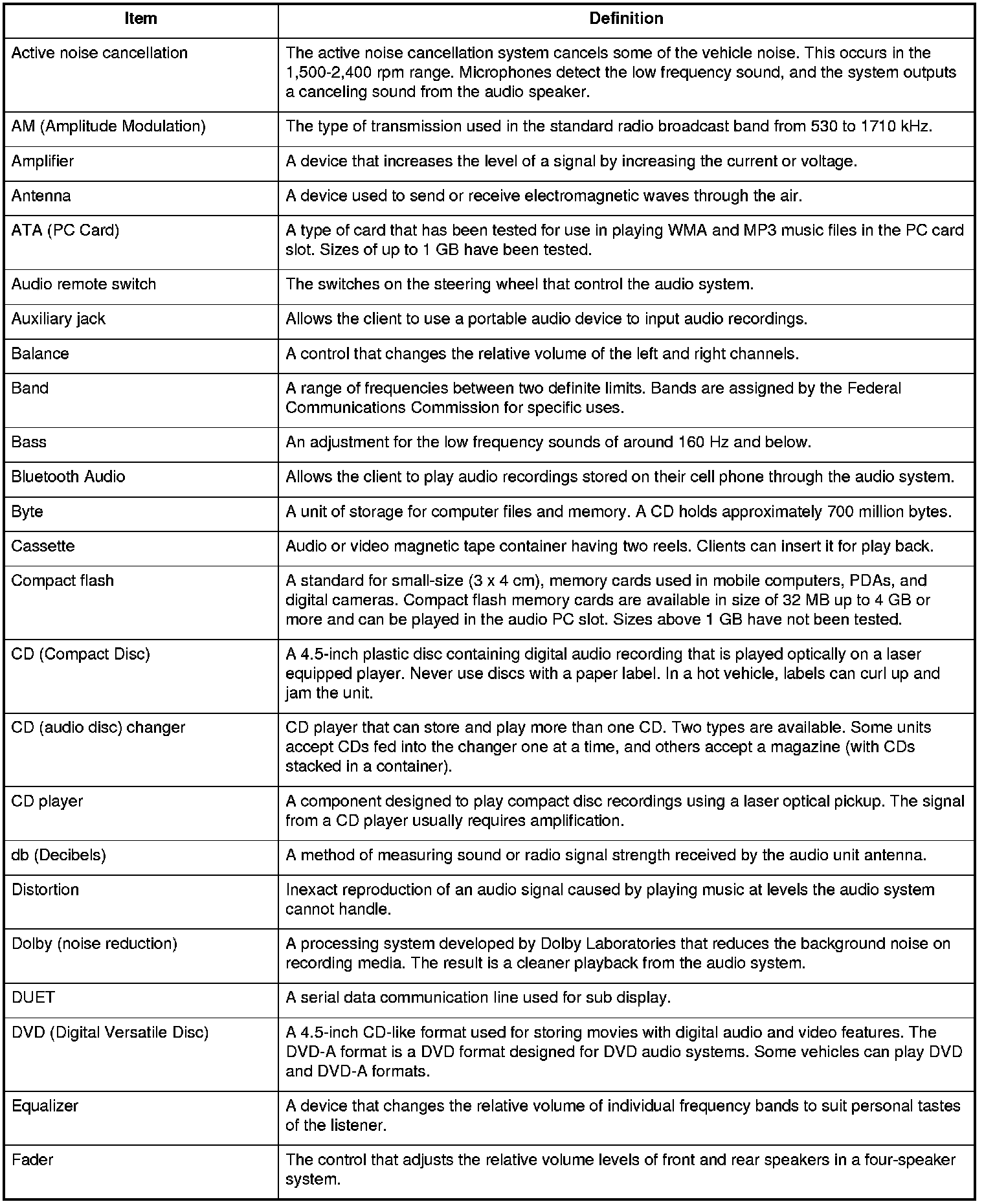

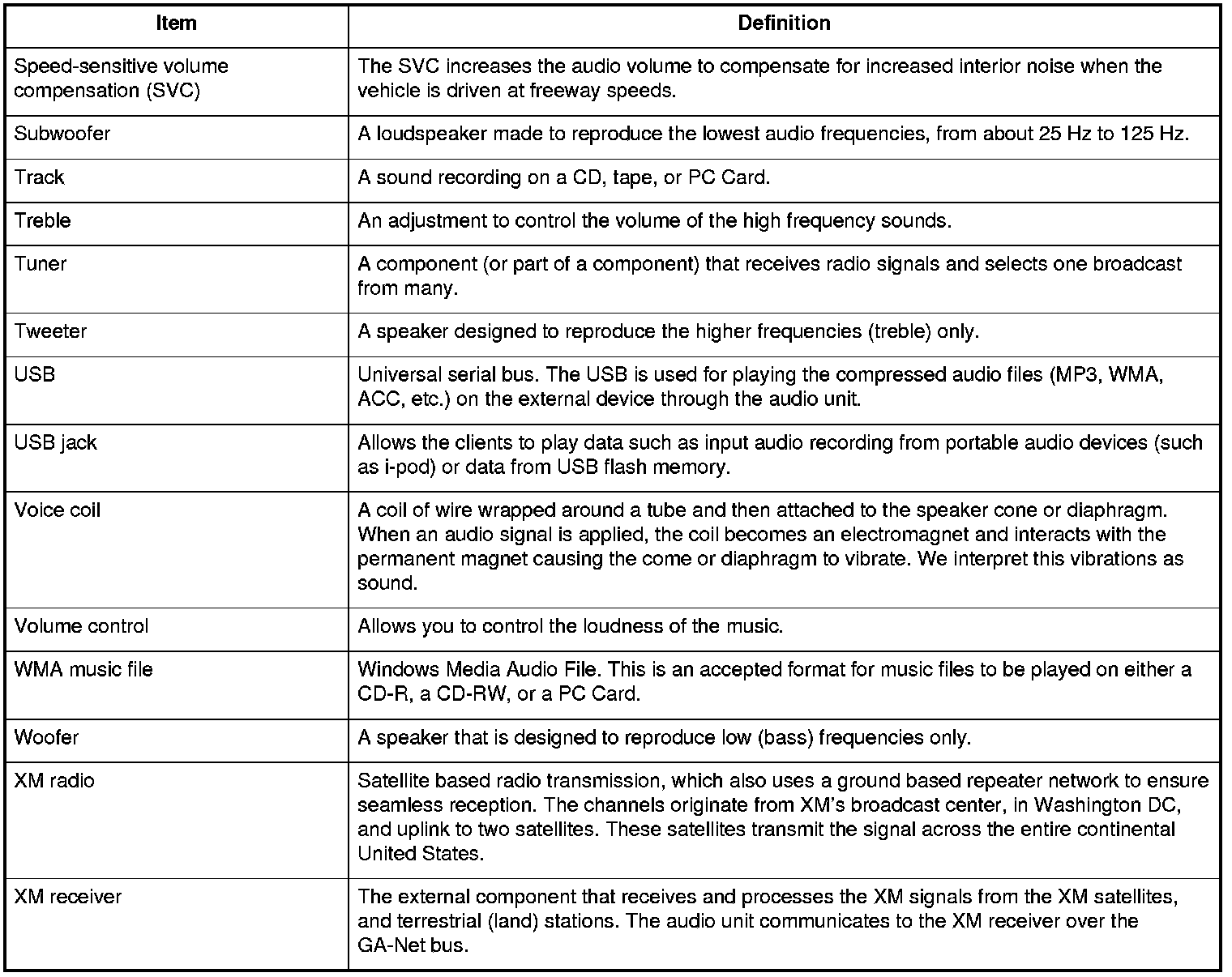

Audio Glossary
Audio Glossary
Audio Glossary
