Cellular Phone: Description and Operation

HandsFreeLink System Description

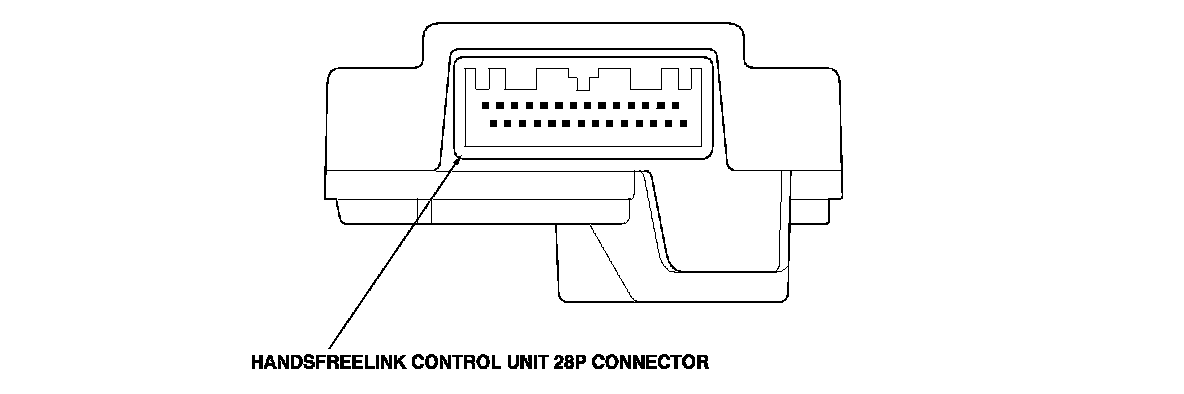

HandsFreeLink Control Unit Inputs and Outputs

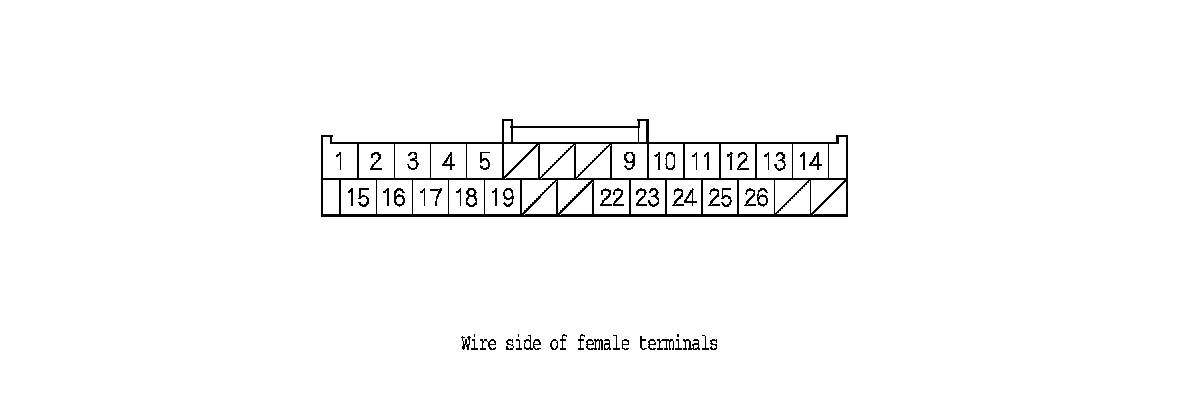

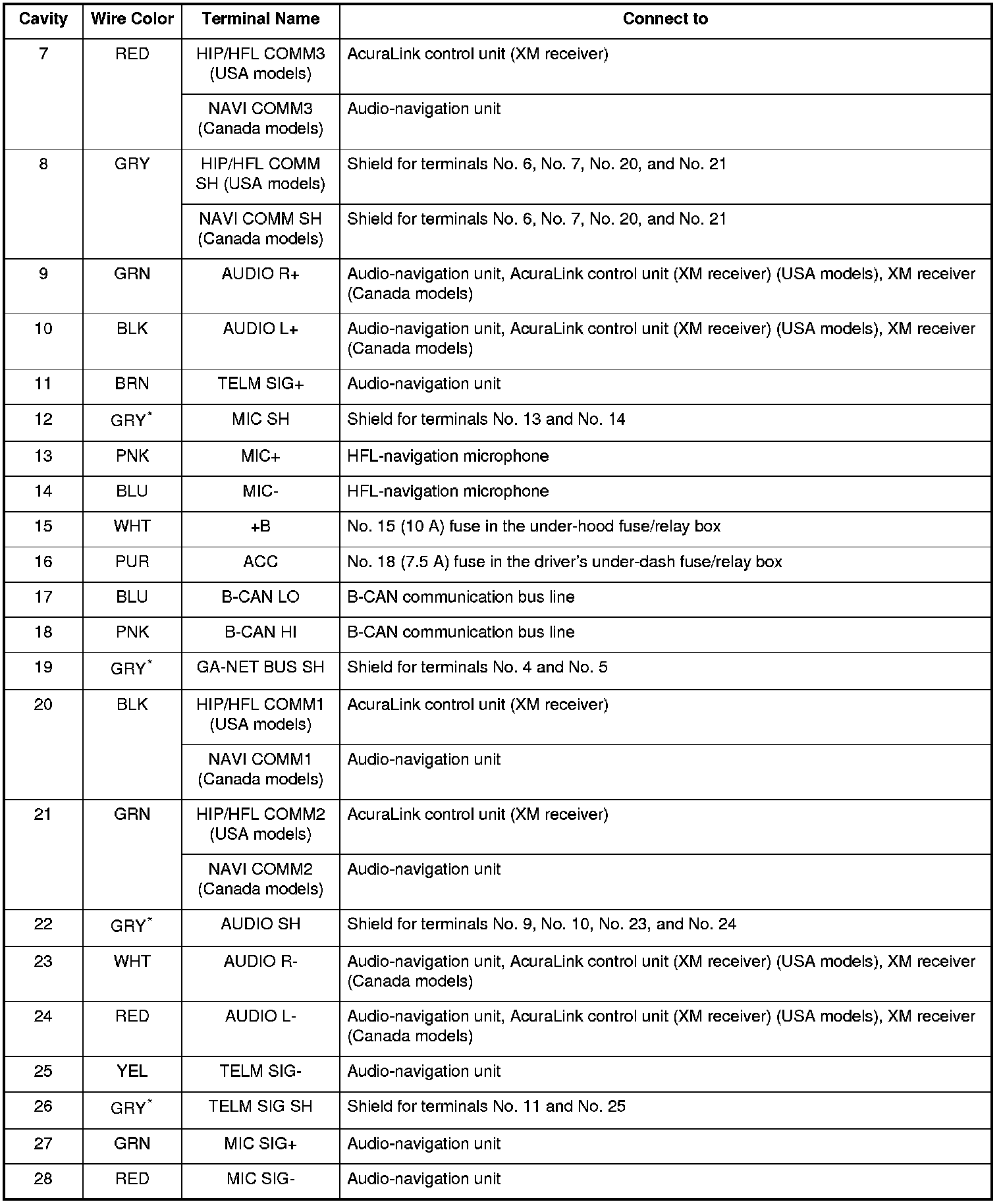

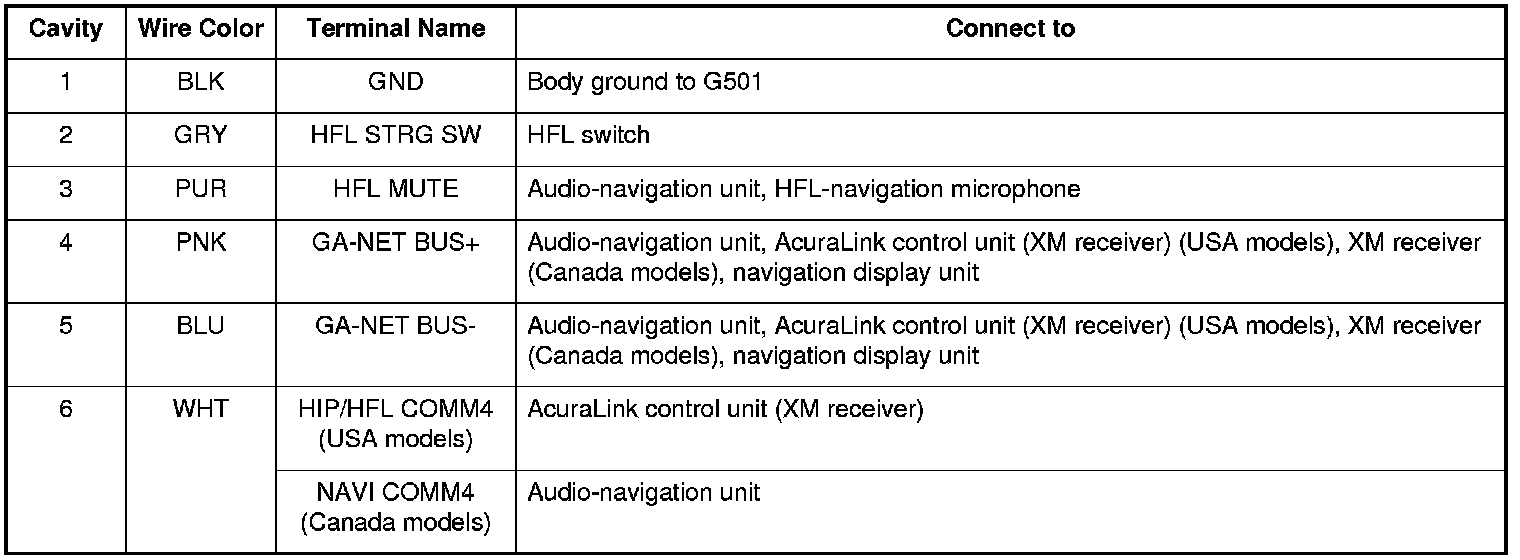

HandsFreeLink Control Unit 28P Connector (With Navigation)













*: The shielded wires have a heat-shrink tube insulating the outside of the wire. The color of the insulating tube, typically black or dark gray, may not match the color of the wire listed on the schematic.

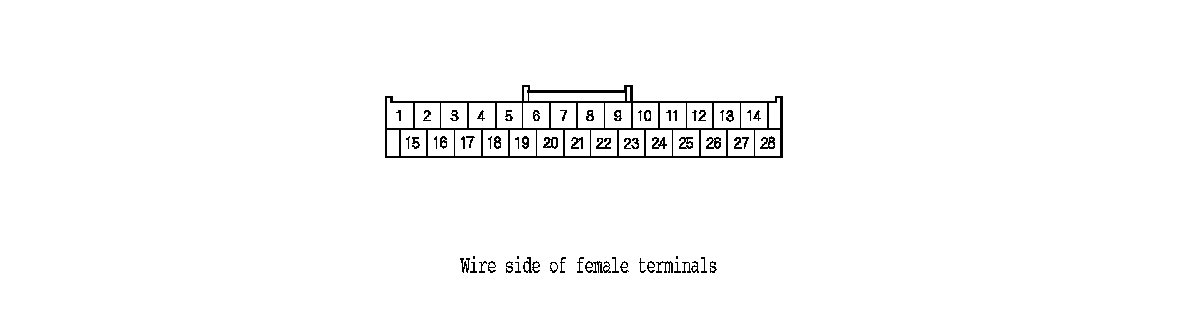

HandsFreeLink Control Unit 28P Connector (without navigation)









*: The shielded wires have a heat-shrink tube insulating the outside of the wire. The color of the insulating tube, typically black or dark gray, may not match the color of the wire listed on the schematic.
