Trunk Lid Release Actuator Test

Trunk Lid Release Actuator Test

1. Open the trunk lid, and remove the trunk lid trim. Interior Trim Removal/Installation - Trunk Lid Trim Panel

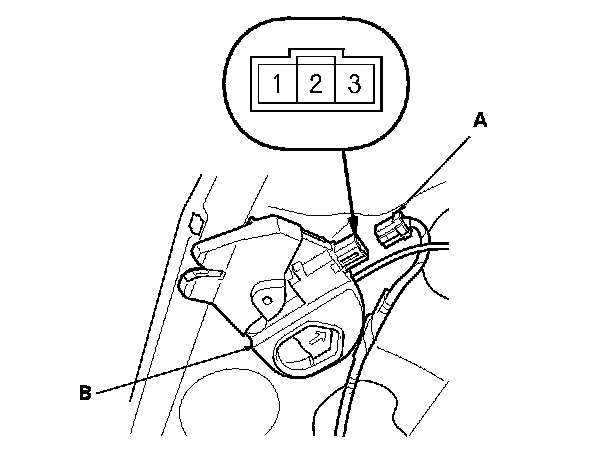

2. Disconnect the 3P connector (A) from the trunk lid latch switch/trunk release actuator (B).

3. Check actuator operation by connecting power to the terminal No. 3 and ground to terminal No. 2 momentarily to prevent damage to the actuator. The actuator should work.

4. If the actuator does not work, replace the trunk lid latch switch/release actuator assembly. Service and Repair
