Keyless Access System Rear Shelf LF Antenna Replacement (With Keyless Access System)

Keyless Access System Rear Shelf LF Antenna Replacement

1. Remove the trunk upper trim panel. Interior Trim Removal/Installation - Trunk Lid Trim Panel

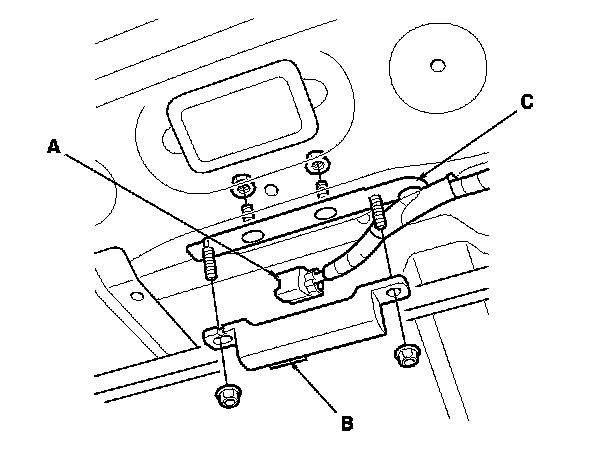

2. Disconnect the 2P connector (A) from the rear shelf LF antenna (B).

3. Remove the two nuts and the rear shelf LF antenna.

4. If necessary, remove the rear shelf. Service and Repair

5. If necessary, remove the two nuts and replace the bracket (C).

6. Install the antenna in the reverse order of removal.
