Keyless Access System Rear Interior LF Antenna Replacement (With Keyless Access System)

Keyless Access System Rear Interior LF Antenna Replacement

1. Remove the rear seat cushion. Rear Seat Removal/Installation

2. Pull out the carpet as needed.

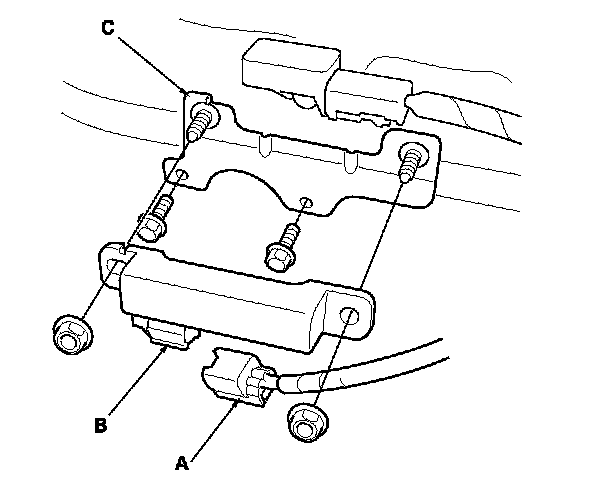

3. Disconnect the 2P connector (A) from the rear interior LF antenna (B).

4. Remove the two nuts and the rear interior LF antenna.

5. If necessary, remove the two bolts and replace the bracket (C).

6. Install the antenna in the reverse order of removal.
