DTC Troubleshooting

DTC Troubleshooting: U0114

DTC U0114: F-CAN Malfunction (PCM-SH-AWD Control Unit)

NOTE: Before you troubleshoot, record all freeze data and any on-board snapshot, and review the general troubleshooting information. Initial Inspection and Diagnostic Overview

1. Turn the ignition switch to ON (II), or press the engine start/stop button to select the ON mode.

2. Check for Pending or Confirmed DTCs with the HDS.

Are DTC U0029 and U0114 indicated at the same time?
YES - Go to troubleshooting for DTC U0029. U0029

NO - Go to step 3.


3. Clear the DTC with the HDS.

4. Check for Pending or Confirmed DTCs with the HDS.

Is DTC U0114 indicated?
YES - Go to step 5.

NO - Intermittent failure, the system is OK at this time. Check for poor connections or loose terminals at the SH-AWD control unit and the PCM.


5. Check for communication to the SH-AWD system with the HDS.

Does the HDS communicate with the SH-AWD control unit?
YES - Go to step 6.

NO - Go to the DLC circuit troubleshooting. Testing and Inspection


6. Turn the ignition switch to LOCK (0), or press the engine start/stop button to select the OFF mode.

7. Jump the SCS line with the HDS.

8. Disconnect SH-AWD control unit connector A (20P).

9. Disconnect PCM connector A (49P).

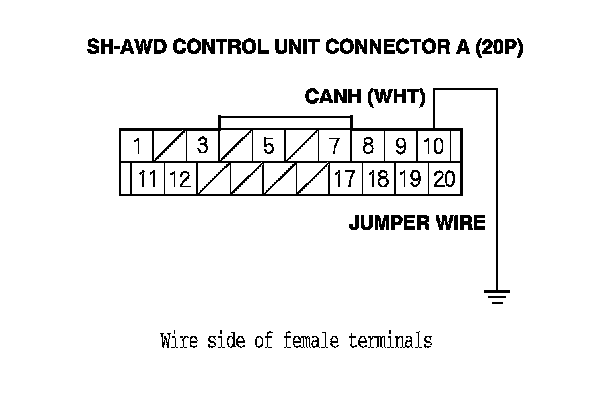

10. Connect SH-AWD control unit connector A (20P) terminal No. 10 to body ground with a jumper wire.

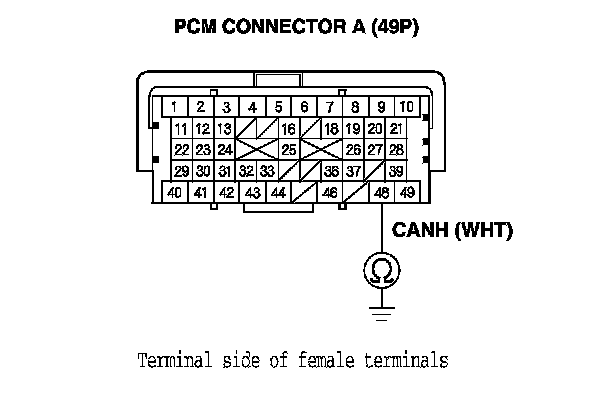

11. Check for continuity between PCM connector terminals A48 and body ground.

Is there continuity?
YES - Go to step 12.

NO - Repair open in the wire between the PCM (A48) and the SH-AWD control unit, then go to step 14.

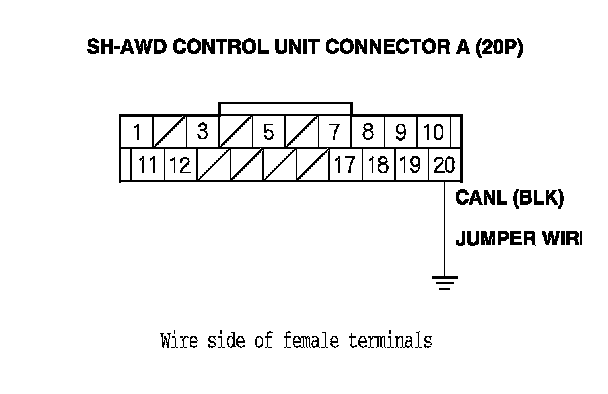

12. Connect SH-AWD control unit connector A (20P) terminal No. 20 to body ground with a jumper wire.

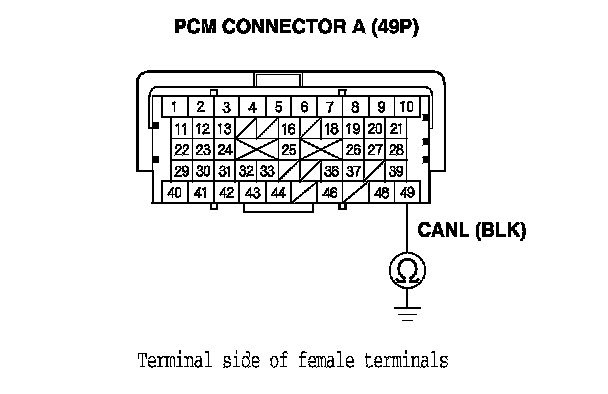

13. Check for continuity between PCM connector terminal A49 and body ground.

Is there continuity?
YES - Update the SH-AWD control unit if it does not have the latest software, SH-AWD Control Unit Update or substitute a known-good SH-AWD control unit, Service and Repair then go to step 14 and recheck. If DTC U0114 is not indicated after substitution, replace the original SH-AWD control unit, Service and Repair then go to step 14.

NO - Repair open in the wire between the PCM (A49) and the SH-AWD control unit, then go to step 14.






14. Reconnect all connectors.

15. Turn the ignition switch to ON (II), or press the engine start/stop button to select the ON mode.

16. Reset the PCM with the HDS.

17. Do the PCM idle learn procedure. PCM Idle Learn Procedure

18. Check for Pending or Confirmed DTCs with the HDS.

Is DTC U0114 indicated?
YES - Check for poor connections or loose terminals at the SH-AWD control unit and the PCM, then go to step 1.

NO - Troubleshooting is complete. If any other Pending or Confirmed DTCs are indicated, go to the indicated DTC's troubleshooting.
