DTC P2279: Intake Air System Leak









General Description

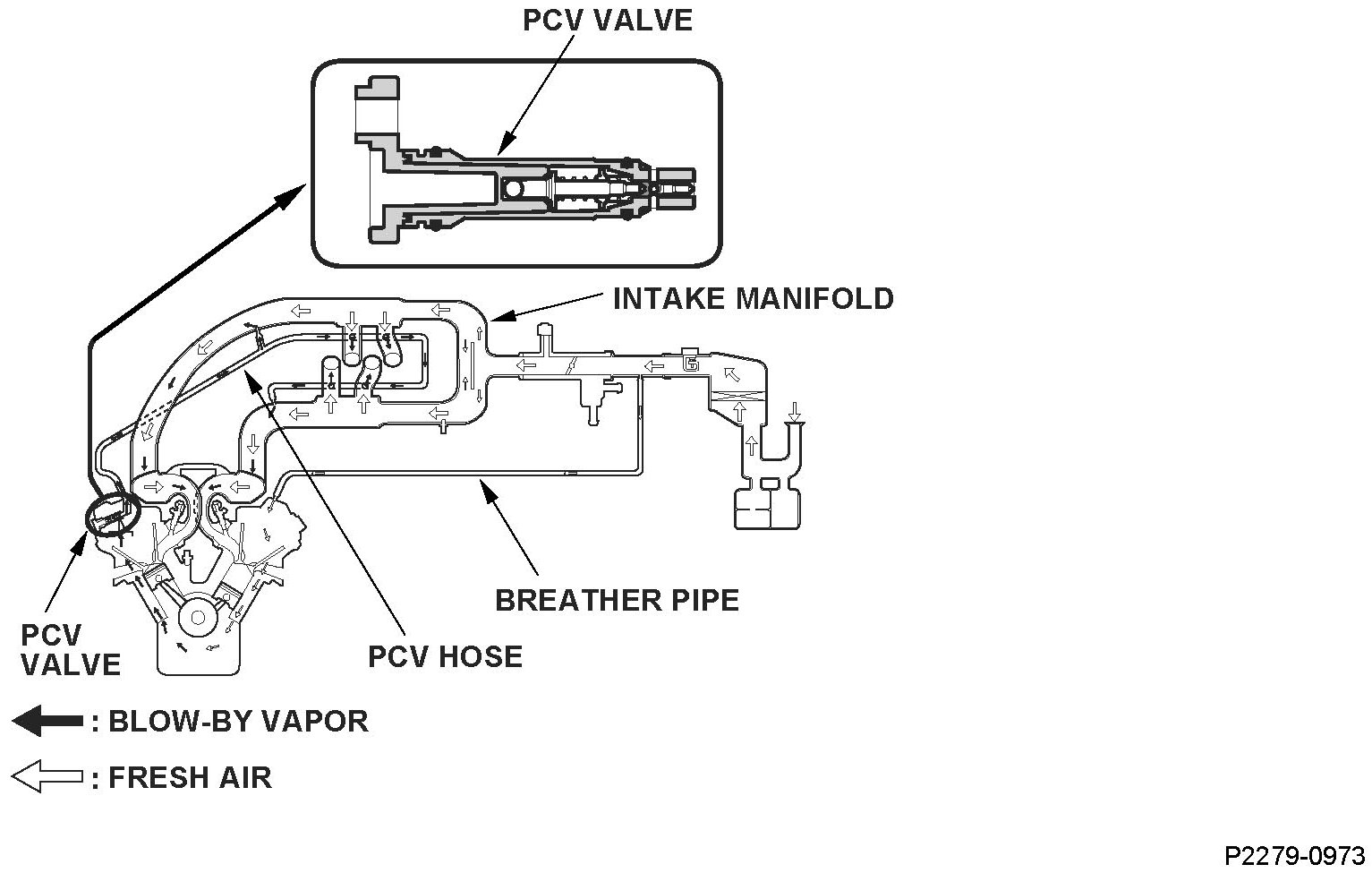

The positive crankcase ventilation (PCV) system reduces hydrocarbon (HC) emissions. The PCV system recirculates unburned air/fuel mixture (blow-by vapor) into the intake manifold so that it can be drawn into the engine and burned, reducing HC. If the PCV hose comes off while air is supplied mainly via the idle control system with the throttle closed, the amount of air supplied to the engine is considerably more than the amount of air the idle control system supplies. The powertrain control module (PCM) estimates the amount of air supplied to the engine while the throttle valve is fully closed, and if the estimated amount is more than the upper limit, it detects a malfunction and a DTC is stored.

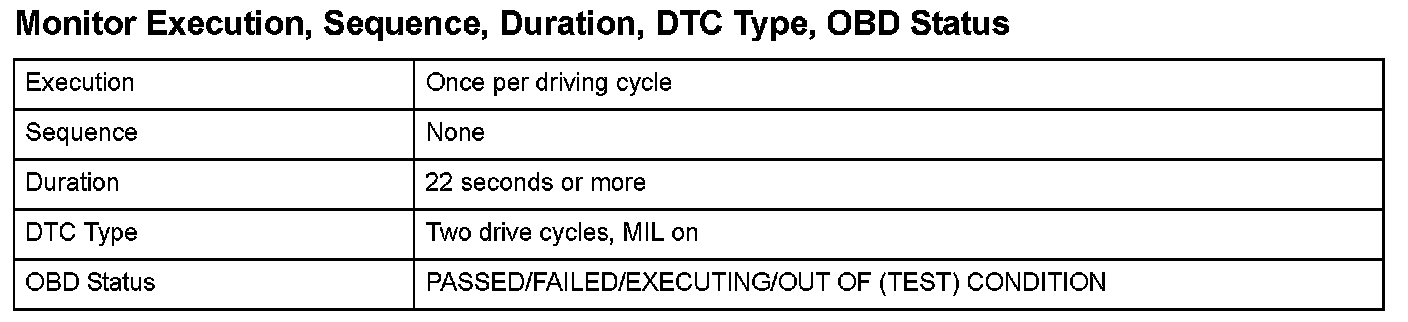

Monitor Execution, Sequence, Duration, DTC Type, OBD Status

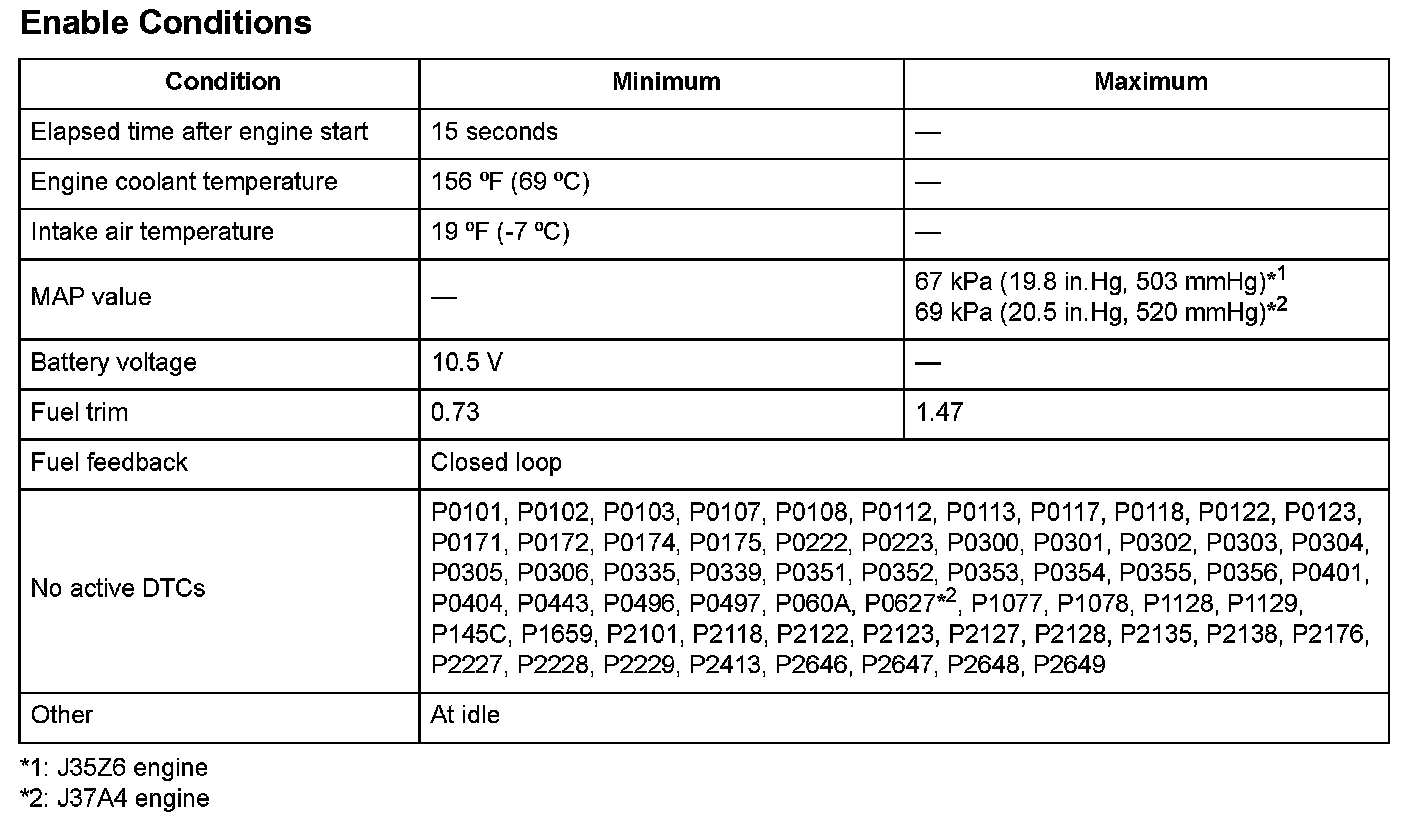

Enable Conditions






Malfunction Threshold
Either of these conditions is met:
- The estimated volume of intake air is 185 L/min (196 US qt/min, 163 Imp qt/min)*1, (209 L/min (220 US qt/min, 183 Imp qt/min))*2 or more when the MAP value is 34 kPa (10.2 in.Hg, 260 mmHg).
- The estimated volume of intake air is 185 L/min (196 US qt/min, 163 Imp qt/min)*1, (209 L/min (220 US qt/min, 183 Imp qt/min))*2 or more when the MAP value is 47 kPa (14.1 in.Hg, 360 mmHg).

Driving Pattern
1. Start the engine. Hold the engine speed at 3,000 rpm without load (in P or N) until the radiator fan comes on.
2. Let the engine idle for at least 22 seconds.

Diagnosis Details

Conditions for setting the DTC
When a malfunction is detected during the first drive cycle, a Pending DTC is stored in the PCM memory. If the malfunction returns in the next (second) drive cycle, the MIL comes on and a Confirmed DTC and the freeze data are stored.

Conditions for clearing the DTC
The MIL is cleared if the malfunction does not return in three consecutive trips in which the diagnostic runs. The MIL, the Pending DTC, the Confirmed DTC, and the freeze data can be cleared with the scan tool Clear command or by disconnecting the battery.
