DTC P1549: Charging System High Voltage






General Description

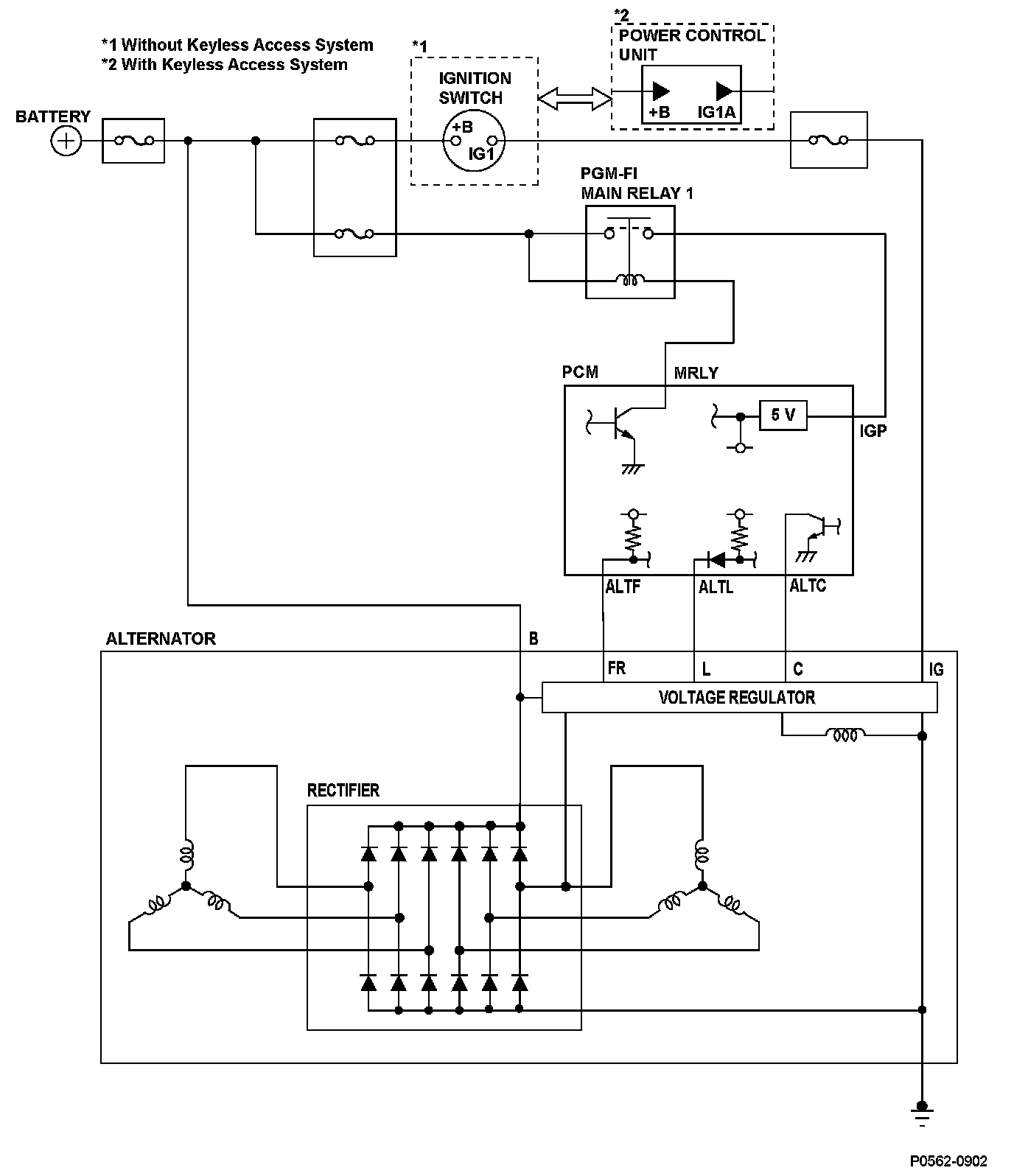

The alternator is driven by the engine and generates electricity to supply the necessary power to the electrical system and to charge the battery. The alternator voltage target values of 14.5 V and 12.5 V are achieved by switching the alternator control mode (controlled by the powertrain control module (PCM)). The alternator output signal is sent to the PCM, and it varies according to the battery's state of charge, the electrical load, and engine speed. When the IGP terminal voltage of the PCM is a set value or more for a set time, a malfunction is detected and a DTC is stored.

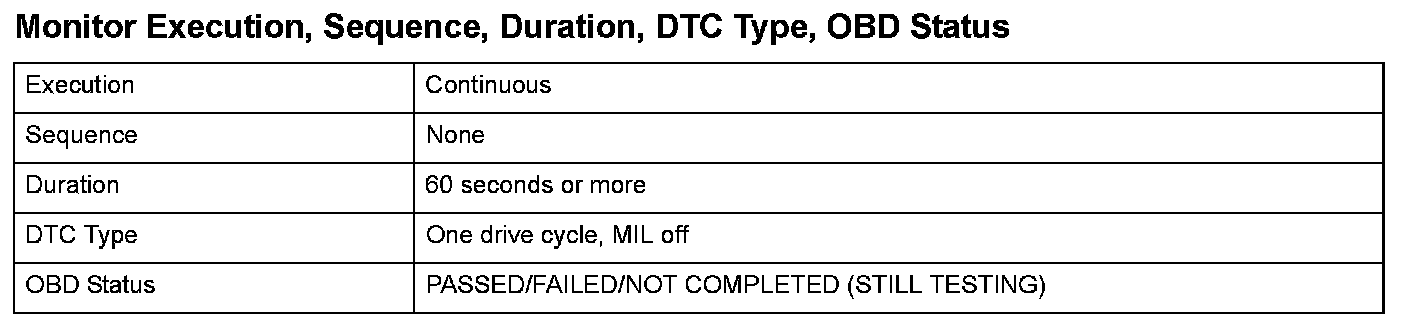

Monitor Execution, Sequence, Duration, DTC Type, OBD Status

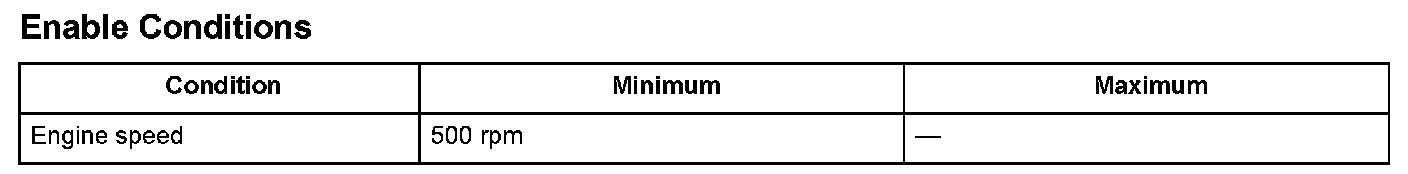

Enable Conditions






Malfunction Threshold
The IGP terminal voltage is 16 V or more for at least 60 seconds.

Diagnosis Details

Conditions for setting the DTC
When a malfunction is detected, a Pending DTC, a Confirmed DTC and the freeze data are stored in the PCM memory. The MIL does not come on.

Conditions for clearing the DTC
The Pending DTC, the Confirmed DTC, and the freeze data can be cleared with the scan tool Clear command or by disconnecting the battery.
