DTC Troubleshooting

DTC Troubleshooting: P0716 (15), P0717 (15)

DTC P0716: Problem in Input Shaft (Mainshaft) Speed Sensor Circuit

DTC P0717: Problem in Input Shaft (Mainshaft) Speed Sensor Circuit (No Signal Input)

NOTE:

- Before you troubleshoot, record all freeze data and any on-board snapshot with the HDS, and review General Troubleshooting Information. How to Troubleshoot A/T Systems

- This code is caused by an electrical circuit problem and cannot be caused by a mechanical problem in the transmission.

1. Check for proper input shaft (mainshaft) speed sensor installation. A/T Input Shaft (Mainshaft) Speed Sensor Replacement If the sensor is installed improperly, correct the problem, then go to step 28.

2. Turn the ignition switch to ON (II), or press the engine start/stop button to select the ON mode.

3. Clear the DTC with the HDS.

4. With SH-AWD: Raise the vehicle on a lift, make sure it is securely supported, and allow all four wheels to rotate freely.
Without SH-AWD: Block the rear wheels and raise the front of the vehicle, make sure it is securely supported, and allow the front wheels to rotate freely, or raise the vehicle on a lift.

5. Start the engine, and turn the VSA off (the light on the VSA OFF switch comes on). Run the vehicle in either 2nd, 3rd, 4th, or 5th gear (not 1st) in D at speeds over 12 mph (20 km/h) for at least 10 seconds. Slow down and stop the wheels.

6. Monitor the OBD status for P0716 or P0717 in the DTCs MENU with the HDS.

Does the HDS indicate FAILED?
YES - Go to step 7.

NO - If the HDS indicates PASSED, intermittent failure, the system is OK at this time. Check for loose or poor connections at the PCM and input shaft (mainshaft) speed sensor connectors. If the HDS indicates NOT COMPLETED, go to step 5.


7. Turn the ignition switch to LOCK (0), or press the engine start/stop button to select the OFF mode.

8. Jump the SCS line with the HDS.

9. Disconnect PCM connectors B (49P) and C (49P).

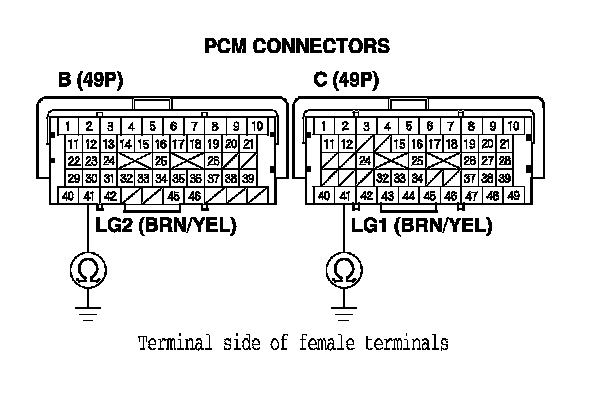

10. Check for continuity between PCM connector terminals B41 and body ground, and between C41 and body ground.

Is there continuity?
YES - Go to step 11.

NO - Repair open in the wires between PCM connector terminals B41, C41 and body ground (G101), or repair poor body ground (G101), then go to step 27.






11. Connect PCM connectors B (49P) and C (49P).

12. Disconnect the input shaft (mainshaft) speed sensor connector.

13. Turn the ignition switch to ON (II), or press the engine start/stop button to select the ON mode.

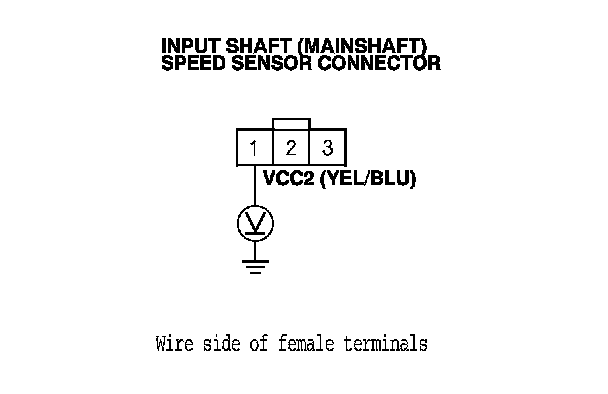

14. Measure the voltage between input shaft (mainshaft) speed sensor connector terminal No. 1 and body ground.

Is there about 5 V?
YES - Go to step 19.

NO - Go to step 15.






15. Turn the ignition switch to LOCK (0), or press the engine start/stop button to select the OFF mode.

16. Jump the SCS line with the HDS.

17. Disconnect PCM connector C (49P).

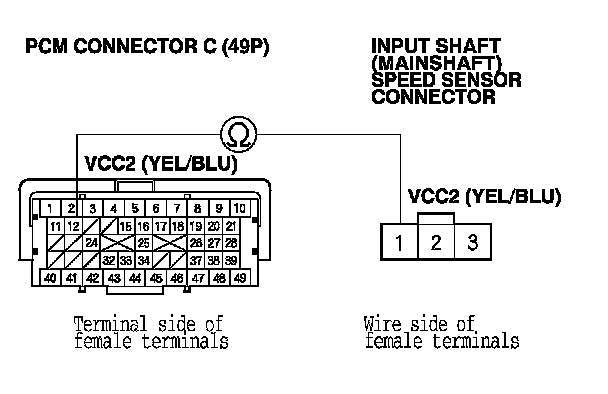

18. Check for continuity between PCM connector terminal C12 and input shaft (mainshaft) speed sensor connector terminal No. 1.

Is there continuity?
YES - Go to step 33.

NO - Repair open in the wire between PCM connector terminal C12 and the input shaft (mainshaft) speed sensor, then go to step 27.

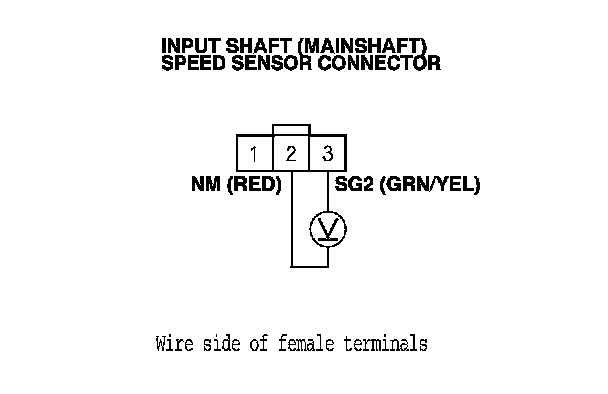

19. Measure the voltage between input shaft (mainshaft) speed sensor connector terminals No. 2 and No. 3.

Is there about 5 V?
YES - Replace the input shaft (mainshaft) speed sensor, A/T Input Shaft (Mainshaft) Speed Sensor Replacement then go to step 30.

NO - Go to step 20.






20. Turn the ignition switch to LOCK (0), or press the engine start/stop button to select the OFF mode.

21. Jump the SCS line with the HDS.

22. Disconnect PCM connector B (49P).

23. Check for continuity between input shaft (mainshaft) speed sensor connector terminal No. 2 and body ground.

Is there continuity?
YES - Repair short to body ground in the wire between PCM connector terminal B37 and the input shaft (mainshaft) speed sensor, then go to step 27.

NO - Go to step 24.






24. Disconnect PCM connector C (49P).

25. Check for continuity between PCM connector terminal C16 and input shaft (mainshaft) speed sensor connector terminal No. 3.

Is there continuity?
YES - Go to step 26.

NO - Repair open in the wire between the input shaft (mainshaft) speed sensor connector and PCM connector terminal C16, then go to step 27.

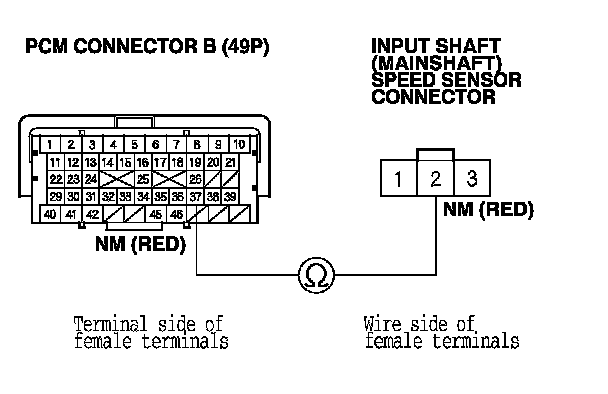

26. Check for continuity between PCM connector terminal B37 and input shaft (mainshaft) speed sensor connector terminal No. 2.

Is there continuity?
YES - Go to step 33.

NO - Repair open in the wire between PCM connector terminal B37 and the input shaft (mainshaft) speed sensor, then go to step 27.






27. Reconnect all connectors.

28. Turn the ignition switch to ON (II), or press the engine start/stop button to select the ON mode.

29. Clear the DTC with the HDS.

30. Start the engine, and turn the VSA off (the light on the VSA OFF switch comes on). Run the vehicle in either 2nd, 3rd, 4th, or 5th gear (not 1st) in D at speeds over 12 mph (20 km/h) for at least 10 seconds. Slow down and stop the wheels.

31. Check for Pending or Confirmed DTCs with the HDS.

Is DTC P0716 or P0717 indicated?
YES - Check for poor connections or loose terminals between the input shaft (mainshaft) speed sensor and the PCM, then go to step 1.

NO - Go to step 32.


32. Monitor the OBD status for P0716 or P0717 in the DTCs MENU with the HDS.

Does the HDS indicate PASSED?
YES - Troubleshooting is complete. If any other Pending or Confirmed DTCs were indicated in step 31, go to the indicated DTC's troubleshooting.

NO - If the HDS indicates FAILED, check for poor connections or loose terminals between the input shaft (mainshaft) speed sensor and the PCM, then go to step 1. If the HDS indicates NOT COMPLETED, go to step 30.


33. Reconnect all connectors.

34. Update the PCM if it does not have the latest software, PCM Update or substitute a known-good PCM. Initial Inspection and Diagnostic Overview

35. Start the engine, and turn the VSA off (the light on the VSA OFF switch comes on). Run the vehicle in either 2nd, 3rd, 4th, or 5th gear (not 1st) in D at speeds over 12 mph (20 km/h) for at least 10 seconds. Slow down and stop the wheels.

36. Check for Pending or Confirmed DTCs with the HDS.

Is DTC P0716 or P0717 indicated?
YES - Check for poor connections or loose terminals between the input shaft (mainshaft) speed sensor and the PCM. If the PCM was updated, substitute a known-good PCM, Initial Inspection and Diagnostic Overview then go to step 35. If the PCM was substituted, go to step 1.

NO - Go to step 37.


37. Monitor the OBD status for P0716 or P0717 in the DTCs MENU with the HDS.

Does the HDS indicate PASSED?
YES - If the PCM was updated, troubleshooting is complete. If the PCM was substituted, replace the original PCM. PCM Replacement If any other DTCs were indicated in step 36, go to the indicated DTC's troubleshooting.

NO - If the HDS indicates FAILED, check for poor connections or loose terminals between the input shaft (mainshaft) speed sensor and the PCM. If the PCM was updated, substitute a known-good PCM, Initial Inspection and Diagnostic Overview then go to step 35. If the PCM was substituted, go to step 1. If the HDS indicates NOT COMPLETED, go to step 35.
