DTC P0615: Starter Cut Relay STRLD Circuit Malfunction






General Description

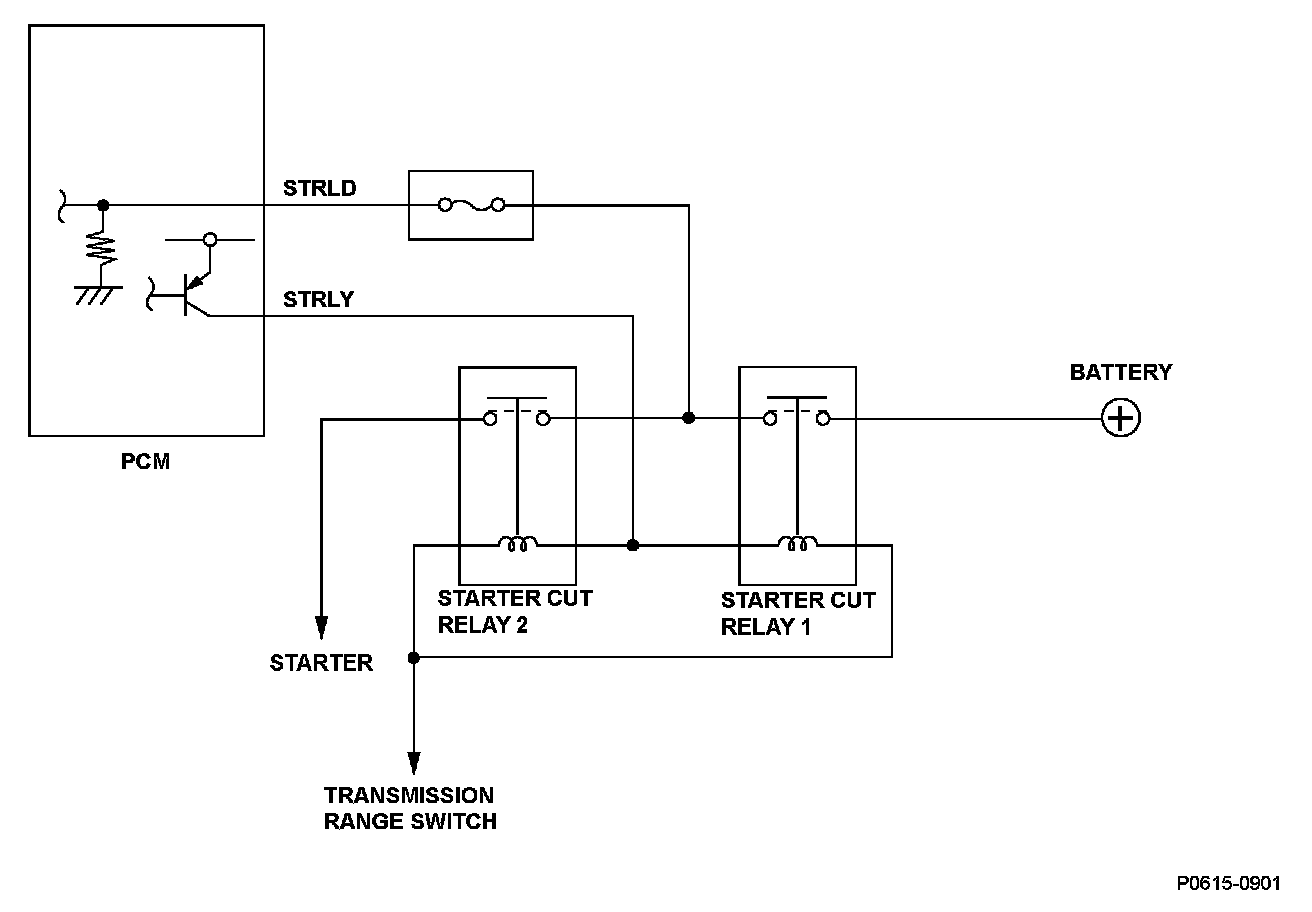

A starter switch inhibit system prevents from damaging the starter pinion gear by prohibiting the starter to be activated while the engine is running. If the ignition switch is turned to START (III) or the engine start/stop button is pressed to select the START mode mistakenly while the engine is running, the powertrain control module (PCM) prevents the starter from working according to the engine rotation information and the output (STRLY) signal of the starter cut relay is switched to LOW. In this system, two starter cut relays are connected in series (starter cut relay 1, starter cut relay 2) to prevent continuing to run due to a starter cut relay malfunction. Also a diagnosis line (STRLD) is used to monitor voltage in the middle of starter cut relay 1 and starter cut relay 2. The PCM detects an OPEN malfunction, an ON malfunction of starter cut relay 1, and an ON malfunction of starter cut relay 2, according to the information. If the voltage of the diagnosis line (STRLD) input does not exceed upper and lower limit for a specified duration when the ignition switch is turned to START (III) or the engine start/stop button is pressed to select the START mode and the output of the starter cut relay (STRLY) is HIGH (starter ON), an OPEN malfunction of the diagnosis line is detected and a DTC is stored.

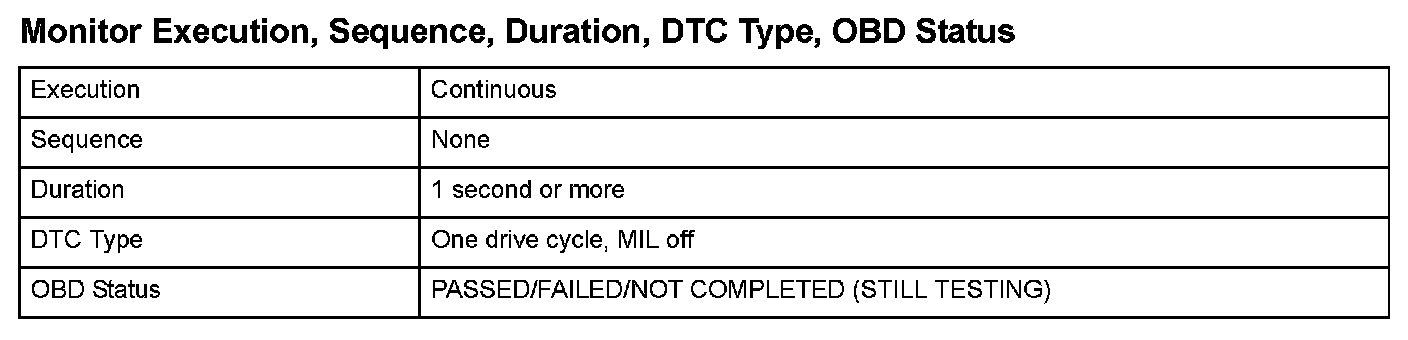

Monitor Execution, Sequence, Duration, DTC Type, OBD Status

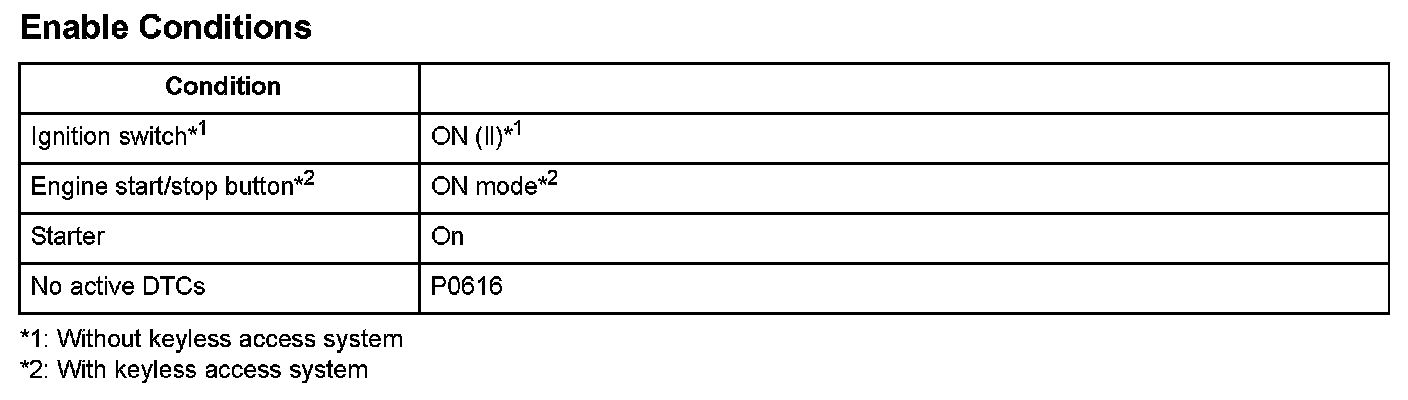

Enable Conditions






Malfunction Threshold
The diagnosis line (STRLD) input voltage is between 2.4 V to 2.6 V for at least 1 second.

Driving Pattern
Turn the ignition switch to START (III) or press the engine start/stop button to select the START mode for 1 second or more.

Diagnosis Details

Conditions for setting the DTC
When a malfunction is detected, a Pending DTC, a Confirmed DTC and the freeze data are stored in the PCM memory. The MIL does not come on.

Conditions for clearing the DTC
The Pending DTC, the Confirmed DTC, and the freeze data can be cleared with the scan tool Clear command or by disconnecting the battery.
