DTC Troubleshooting

DTC Troubleshooting: P0335

DTC P0335: CKP Sensor No Signal

NOTE: Before you troubleshoot, record all freeze data and any on-board snapshot, and review the general troubleshooting information. Initial Inspection and Diagnostic Overview

1. Turn the ignition switch to ON (II), or press the engine start/stop button to select the ON mode.

2. Clear the DTC with the HDS.

3. Start the engine.

4. Check for Pending or Confirmed DTCs with the HDS.

Is DTC P0335 indicated?
YES - Go to step 5.

NO - Intermittent failure, the system is OK at this time. Check for poor connections or loose terminals at the CKP sensor and the PCM.


5. Turn the ignition switch to LOCK (0), or press the engine start/stop button to select the OFF mode.

6. Disconnect the CKP sensor 3P connector.

7. Turn the ignition switch to ON (II), or press the engine start/stop button to select the ON mode.

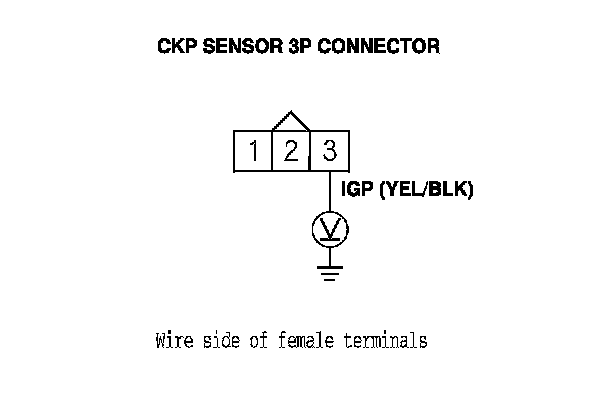

8. Measure the voltage between CKP sensor 3P connector terminal No. 3 and body ground.

Is there battery voltage?
YES - Go to step 9.

NO - Repair open in the wire between the CKP sensor and PGM-FI main relay 1, then go to step 19.

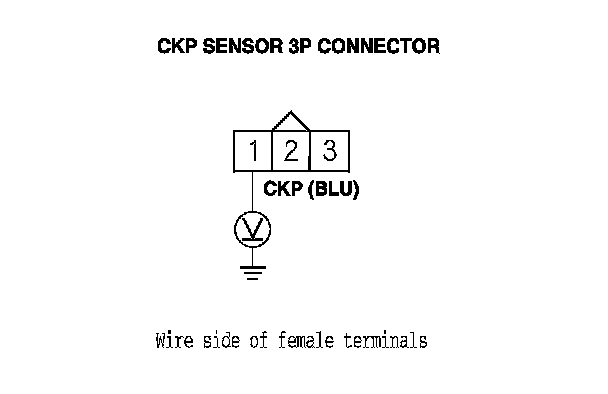

9. Measure the voltage between CKP sensor 3P connector terminal No. 1 and body ground.

Is there about 5 V?
YES - Go to step 10.

NO - Go to step 11.

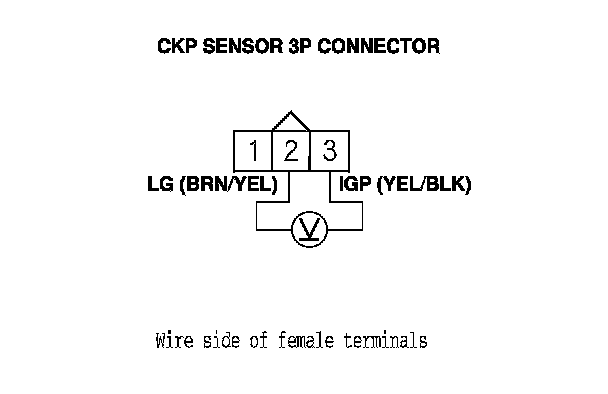

10. Measure the voltage between CKP sensor 3P connector terminals No. 2 and No. 3.

Is there battery voltage?
YES - Go to step 17.

NO - Repair open in the wire between the CKP sensor and G101, Engine Wire Harness (Engine Section) And Knock Sensor Subharness Connector And Harness Locations then go to step 19.






11. Turn the ignition switch to LOCK (0), or press the engine start/stop button to select the OFF mode.

12. Jump the SCS line with the HDS.

13. Disconnect PCM connector B (49P).

14. Check for continuity between PCM connector terminal B45 and body ground.

Is there continuity?
YES - Repair short in the wire between the PCM (B45) and the CKP sensor, then go to step 19.

NO - Go to step 15.

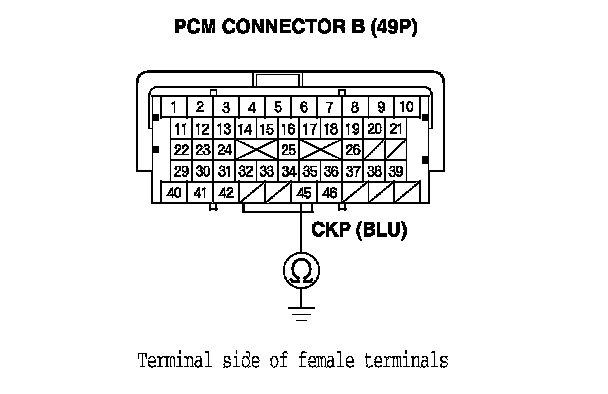

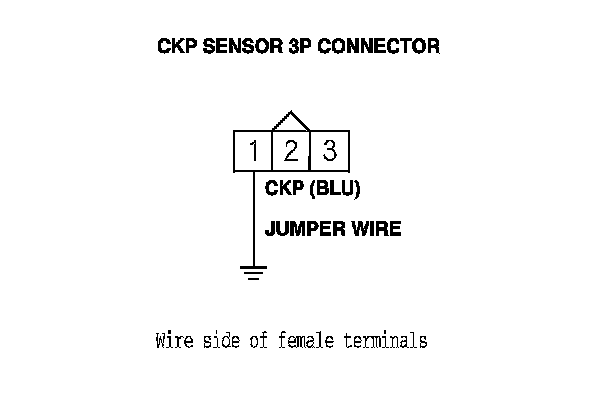

15. Connect CKP sensor 3P connector terminal No. 1 to body ground with a jumper wire.






16. Check for continuity between PCM connector terminal B45 and body ground.

Is there continuity?
YES - Go to step 26.

NO - Repair open in the wire between the PCM (B45) and the CKP sensor, then go to step 19.






17. Turn the ignition switch to LOCK (0), or press the engine start/stop button to select the OFF mode.

18. Replace the CKP sensor. CKP Sensor Replacement

19. Reconnect all connectors.

20. Turn the ignition switch to ON (II), or press the engine start/stop button to select the ON mode.

21. Reset the PCM with the HDS.

22. Clear the CKP pattern with the HDS.

23. Do the PCM idle learn procedure. PCM Idle Learn Procedure

24. Do the CKP pattern learn procedure. Initial Inspection and Diagnostic Overview

25. Check for Pending or Confirmed DTCs with the HDS.

Is DTC P0335 indicated?
YES - Check for poor connections or loose terminals at the CKP sensor and the PCM, then go to step 1.

NO - Troubleshooting is complete. If any other Pending or Confirmed DTCs are indicated, go to the indicated DTC's troubleshooting.


26. Reconnect all connectors.

27. Update the PCM if it does not have the latest software, PCM Update or substitute a known-good PCM. Initial Inspection and Diagnostic Overview

28. Check for Pending or Confirmed DTCs with the HDS.

Is DTC P0335 indicated?
YES - Check for poor connections or loose terminals at the CKP sensor and the PCM. If the PCM was updated, substitute a known-good PCM, Initial Inspection and Diagnostic Overview then recheck. If the PCM was substituted, go to step 1.

NO - If the PCM was updated, troubleshooting is complete. If the PCM was substituted, replace the original PCM. PCM Replacement If any other Pending or Confirmed DTCs are indicated, go to the indicated DTC's troubleshooting.
