DTC P0154: Front Air/Fuel Ratio (A/F) Sensor (Bank 2, Sensor 1) Heater System Malfunction






General Description
The front air/fuel ratio (A/F) sensor (bank 2, sensor 1) is activated by warming the element with the heater and by maintaining it at a steady high temperature to accurately calculate the air/fuel (A/F) ratio. The front A/F sensor does not become active when the element is not properly heated due to a heater malfunction, and the exhaust emissions deteriorate. The powertrain control module (PCM) monitors the front A/F sensor internal resistance.
1. When the front A/F sensor does not activate within a set time after the front A/F sensor heater starts to warm up (with high front A/F sensor internal resistance), a malfunction of the front A/F sensor heater is detected, and a DTC is stored.
2. When the front A/F sensor heater cycles ON and OFF within a set time, and the resistance remains high when the heater is ON, a malfunction in the front A/F sensor heater is detected, and a DTC is stored.

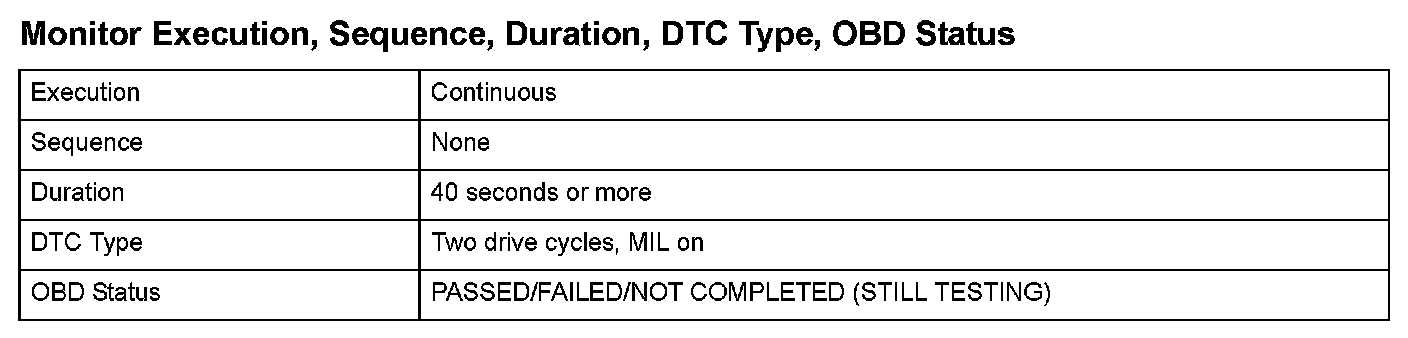

Monitor Execution, Sequence, Duration, DTC Type, OBD Status

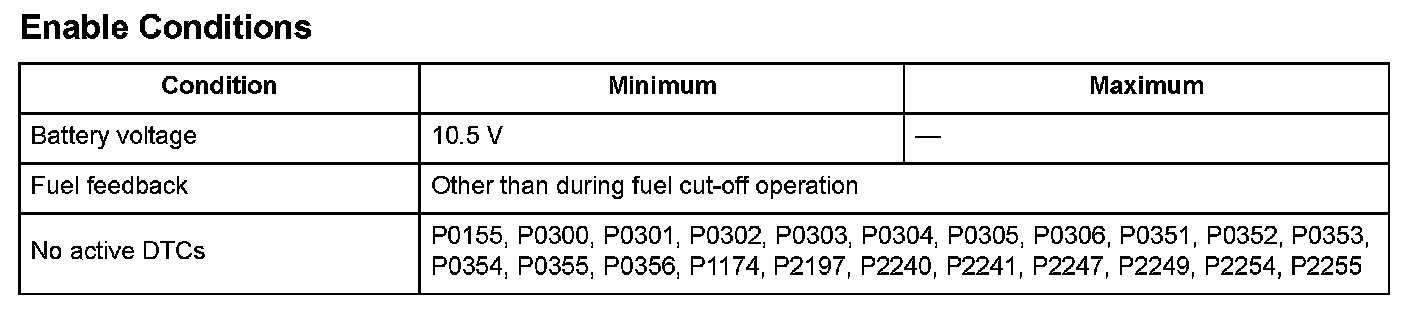

Enable Conditions

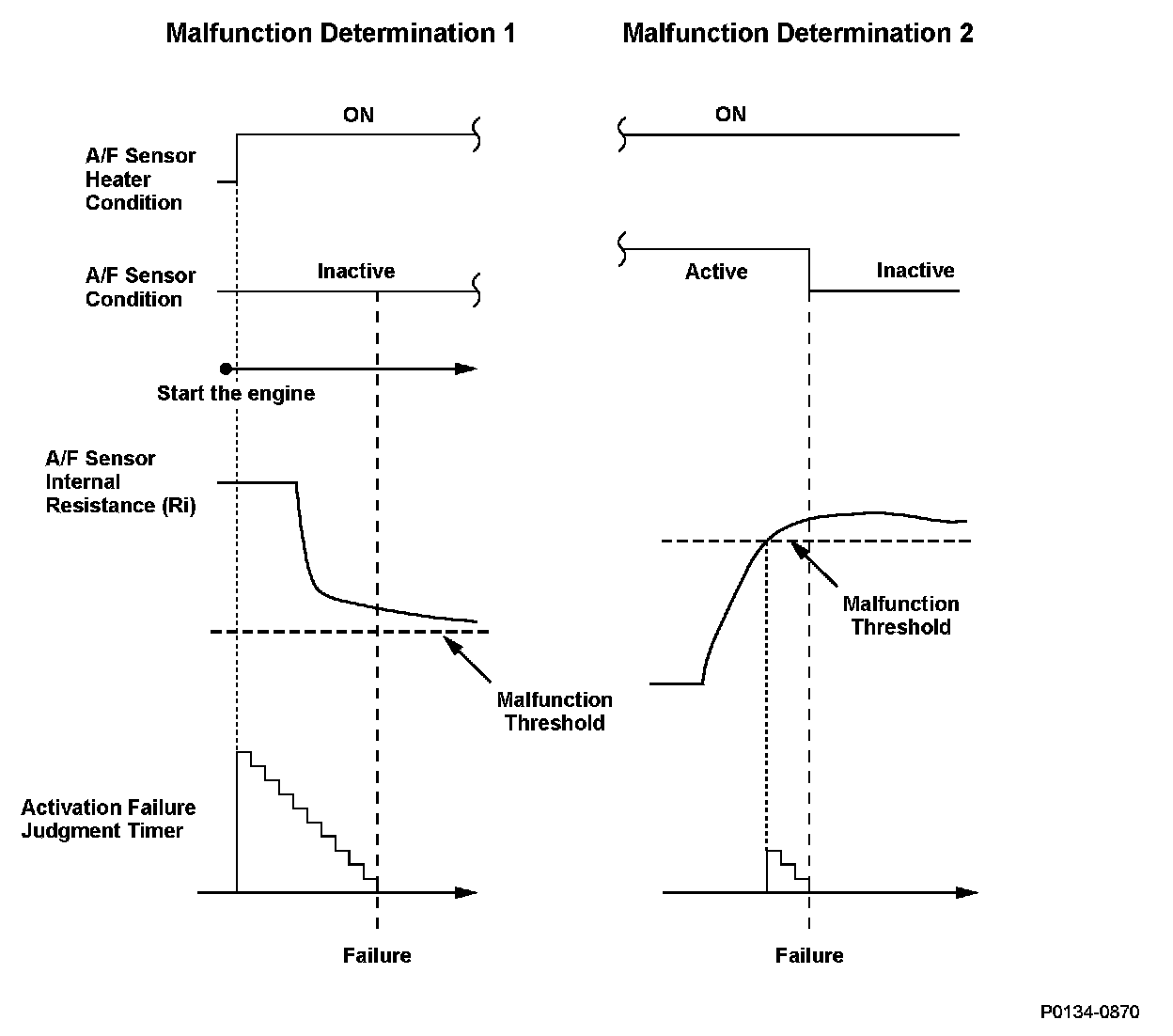

Malfunction Threshold

Malfunction determination 1
The front A/F sensor (bank 2, sensor 1) internal resistance value is 200 ohms or more for at least 40 seconds right after the engine starts.

Malfunction determination 2
The front A/F sensor (bank 2, sensor 1) internal resistance value is 270 ohms or more for at least 1 second.

Driving Pattern
Start the engine, then let it idle for at least 1 minute. When engine coolant temperature is 14 °F (-10 °C) or less, leave the vehicle for 4 minutes or more.

Diagnosis Details

Conditions for setting the DTC
When a malfunction is detected during the first drive cycle, a Pending DTC is stored in the PCM memory. If the malfunction returns in the next (second) drive cycle, the MIL comes on and a Confirmed DTC and the freeze data are stored.

Conditions for clearing the DTC
The MIL is cleared if the malfunction does not return in three consecutive trips in which the diagnostic runs. The MIL, the Pending DTC, the Confirmed DTC, and the freeze data can be cleared with the scan tool Clear command or by disconnecting the battery.
