SRS DTC Troubleshooting: 92-1x (x can be 0 thru 9 or A thru F)

DTC 92-1x ("x" can be 0 thru 9 or A thru F): Short to Power in the Front Passenger's Airbag Cutoff Indicator

NOTE:

- Before doing this troubleshooting procedure, review SRS Precautions and Procedures Service and Repair, General Troubleshooting Information Initial Inspection and Diagnostic Overview, and Battery Terminal Disconnection and Reconnection. Procedures

- Before replacing the SRS unit, check the SRS unit software version with the HDS. If the software version is not the latest, update the SRS unit software, SRS Unit Update and retest.

1. Clear the DTC memory. Initial Inspection and Diagnostic Overview

2. Turn the ignition switch to ON (II), or press the engine start/stop button to select the ON mode, then wait for 10 seconds.

3. Read the DTC. Initial Inspection and Diagnostic Overview

Is DTC 92-1x indicated?
YES - Go to step 4.

NO - Intermittent failure, the system is OK at this time. Go to Troubleshooting Intermittent Failures. Initial Inspection and Diagnostic Overview If another DTC is indicated, troubleshoot the DTC.


4. Turn the ignition switch to LOCK (0), or press the engine start/stop button to select the OFF mode.

5. Disconnect the passenger's airbag cutoff indicator 6P connector. Service and Repair

6. Disconnect the negative cable from the battery, then wait at least 3 minutes.

7. Disconnect SRS unit connector A (39P) from the SRS unit. Service and Repair

8. Reconnect the negative cable to the battery.

9. Turn the ignition switch to ON (II), or press the engine start/stop button to select the ON mode.

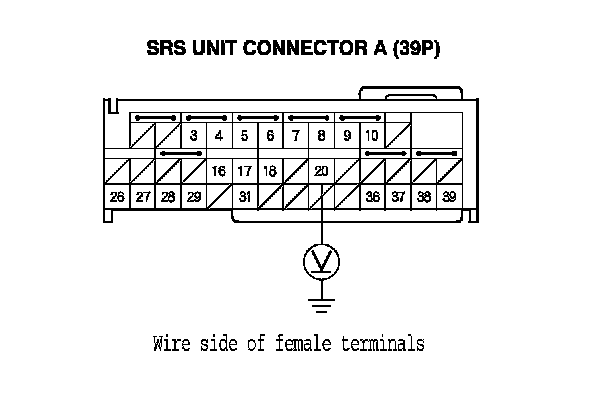

10. Measure the voltage between SRS unit connector A (39P) terminal No. 20 and body ground. There should be less than 0.2 V.

Is the voltage as specified?
YES - Faulty passenger's airbag cutoff indicator; replace the passenger's airbag cutoff indicator, Service and Repair then clear the DTC. If the problem is still present, replace the SRS unit. SRS Unit Replacement

NO - Short to power in the dashboard wire harness; replace the dashboard wire harness, then clear the DTC.
