62-2x

SRS DTC Troubleshooting: 62-2x (x can be 0 thru 9 or A thru F)

DTC 62-2x ("x" can be 0 thru 9 or A thru F):Short in the Front Passenger's Seat Belt Buckle Switch

NOTE: Before doing this troubleshooting procedure, review SRS Precautions and Procedures Service and Repair and General Troubleshooting Information. Initial Inspection and Diagnostic Overview

1. Clear the DTC memory. Initial Inspection and Diagnostic Overview

2. Turn the ignition switch to LOCK (0), or press the engine start/stop button to select the OFF mode, then wait for 10 seconds.

3. Turn the ignition switch to ON (II), or press the engine start/stop button to select the ON mode, then buckle and unbuckle the front passenger's seat belt several times.

4. Read the DTC. Initial Inspection and Diagnostic Overview

Is DTC 62-2x indicated?
YES - Go to step 5.

NO - Intermittent failure, the system is OK at this time. Go to Troubleshooting Intermittent Failures. Initial Inspection and Diagnostic Overview If another DTC is indicated, troubleshoot the DTC.


5. Turn the ignition switch to LOCK (0), or press the engine start/stop button to select the OFF mode.

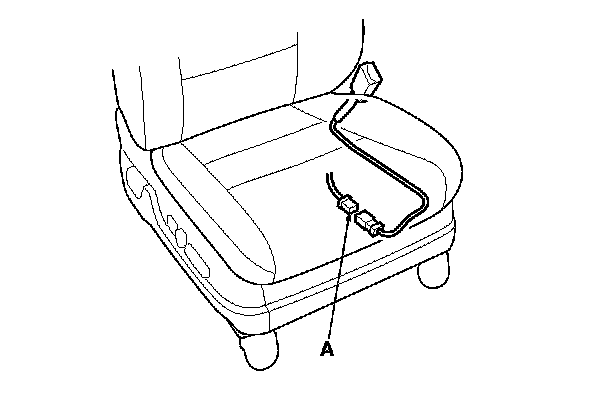

6. Disconnect the front passenger's seat wire harness 2P connector (A) from the front passenger's seat belt buckle switch.

7. Turn the ignition switch to ON (II), or press the engine start/stop button to select the ON mode.






8. Read the DTC. Initial Inspection and Diagnostic Overview

Is DTC 62-2x indicated?
YES - Short to ground in the SRS floor wire harness or front passenger's seat wire harness; replace the faulty harness, then clear the DTC.

NO - Faulty front passenger's seat belt buckle switch; replace the front passenger's seat belt buckle assembly, Front Seat Belt Replacement then clear the DTC.
