VSA System

VSA DTC Troubleshooting: 21, 22, 23, 24

DTC 21, 22, 23, 24: Magnetic Encoder (Wheel Bearing)

1. Turn the ignition switch to ON (II), or press the engine start/stop button to select the ON mode.

2. Clear the DTC with the HDS.

3. Test-drive the vehicle at 19 mph (30 km/h) or more.
NOTE: Drive the vehicle on the road, not on a lift.

4. Check for DTCs with the HDS.

Is DTC 21, 22, 23, or 24 indicated?
YES - Go to step 5.

NO - The system is OK at this time.

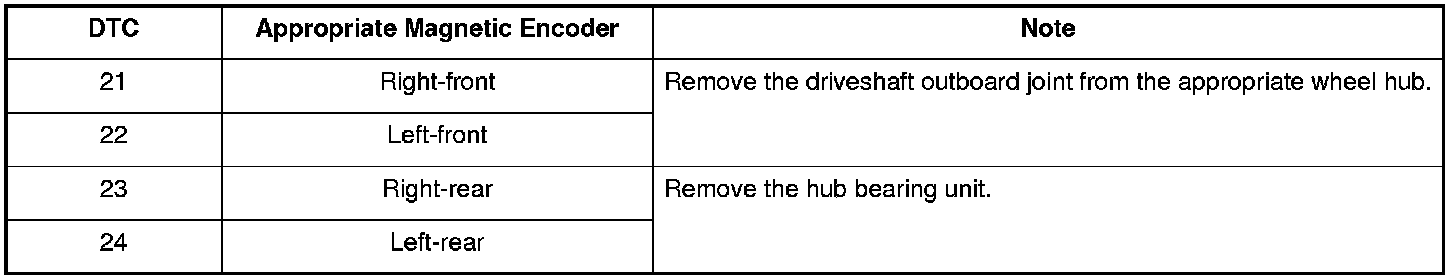

5. Inspect the appropriate magnetic encoder for damage, debris, and correct installation.





Is the magnetic encoder OK?
YES - Go to step 6.

NO - Remove the debris from the magnetic encoder, or replace the wheel bearing (front) or the hub bearing unit (rear):

- Front: Replace the front wheel bearing. Service and Repair

- Rear: Replace the rear hub bearing unit. Service and Repair



6. Update the VSA modulator-control unit if it does not have the latest software. Testing and Inspection If the unit already has the latest software, substitute a known-good VSA modulator-control unit. Service and Repair

7. Test-drive the vehicle at 19 mph (30 km/h) or more.
NOTE: Drive the vehicle on the road, not on a lift.

8. Check for DTCs with the HDS.

Is DTC 21, 22, 23, or 24 indicated?
YES - Check for loose terminals in the VSA modulator-control unit 47P connector. If the VSA modulator-control unit was updated, substitute a known-good VSA modulator-control unit, Service and Repair then retest. If the VSA modulator-control unit was substituted, go to step 1.

NO - If the VSA modulator-control unit was updated, troubleshooting is complete. If the VSA modulator-control unit was substituted, replace the original VSA modulator-control unit. Service and Repair If any other DTCs are indicated, go to the indicated DTCs troubleshooting.
