Manufacturer Code Charts: 1701

Navigation System DTC Troubleshooting: 1701, 2608

DTC 1701: Rear Camera Error

DTC 2608: Rear Camera Diag

NOTE:

- Check the vehicle battery condition first.

- Before you troubleshoot, make sure to follow the general troubleshooting information. How to Troubleshoot the Navigation System (With Navigation)

1. Turn the ignition switch to LOCK (0), or press the engine start/stop button to select the OFF mode, then back to ON (II), or the ON mode.

2. Go into the Diagnostic Menu, and select the Self-Diagnosis Mode in the Select Diagnosis Items menu. Navigation System Diagnostic Mode (With Navigation)

3. Check the System Links.

Is the Rear camera icon red?
YES - Go to step 4.

NO - Intermittent failure, the system is OK at this time.


4. Check for poor connection or loose terminal at the rearview camera 12P connector.

Are the connections OK?
YES - Go to step 5.

NO - Repair poor connection or loose terminal.


5. Turn the ignition switch to LOCK (0), or press the engine start/stop button to select the OFF mode.

6. Disconnect rearview camera 12P connector.

7. Turn the ignition switch to ON (II), or press the engine start/stop button to select the ON mode.

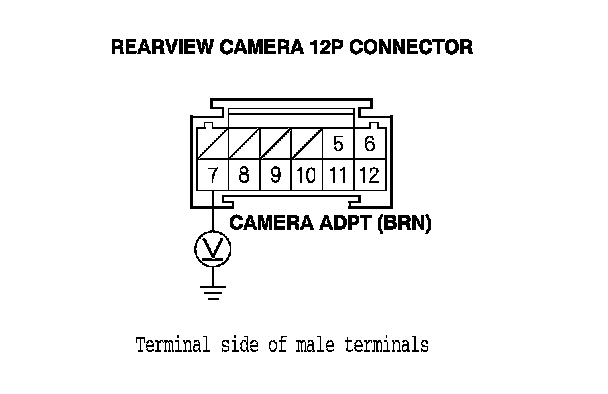

8. Measure the voltage between rearview camera 12P connector terminal No. 7 and body ground.

Is there about 3.0 V?
YES - Replace the rearview camera. Service and Repair

NO - Go to step 9.

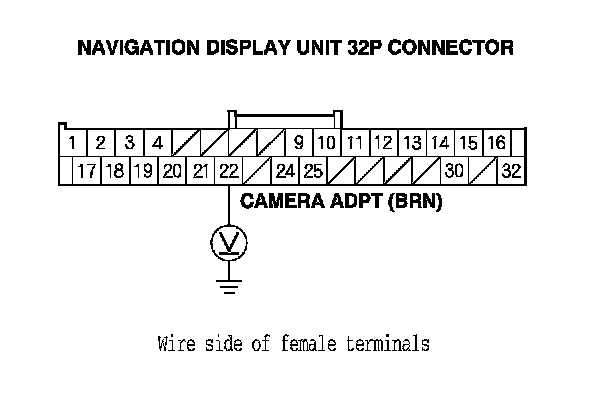

9. Measure the voltage between navigation display unit 32P connector terminal No. 22 and body ground.

Is there about 3.0 V?
YES - Repair open in the wire between the navigation display unit and the rearview camera.

NO - Replace the navigation display unit. Service and Repair
