DTC Troubleshooting: B1279

DTC B1279: Dimmer Switch Circuit Malfunction

NOTE: If you are troubleshooting multiple DTCs, be sure to follow the instructions in B-CAN System Diagnosis Test Mode A. Troubleshooting - B-CAN System Diagnosis Test Mode A

1. Clear the DTCs with the HDS.

2. Turn the ignition switch to LOCK (0) and then back to ON (II), or press the engine start/stop button to select the OFF mode and then the ON mode.

3. Turn the combination light (headlight) switch ON.

4. Change the dimmer switch from low beam to high beam.

5. Turn the combination light switch OFF, and then to the passing position, and wait for at least 6 seconds.

6. Check for DTCs with the HDS.

Is DTC B1279 indicated?
YES - Go to step 7.

NO - Intermittent failure, the system is OK at this time. Check for loose or poor connections.


7. Select LIGHTING from the BODY ELECTRICAL system select menu, then enter DATA LIST.

8. Check each combination light switch position value with the DATA LIST menu.

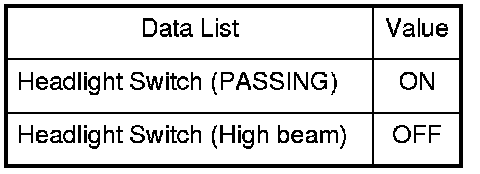

When the passing switch is operated





When the headlight switch is turned ON, and the dimmer switch changed from low beam to high beam





Are all data list values correct?
YES - Faulty driver's MICU; replace the driver's under-dash fuse/relay box. Driver's Under-Dash Fuse/Relay Box (MICU) Removal/Installation

NO - Go to step 9.


9. Turn the ignition switch to LOCK (0), or press the engine start/stop button to select the OFF mode.

10. Disconnect the combination light switch 12P connector.

11. Turn the ignition switch to ON (II), or press the engine start/stop button to select the ON mode.

12. Select LIGHTING from the BODY ELECTRICAL system select menu, then enter DATA LIST.

13. Check each combination light switch position value with the DATA LIST menu.

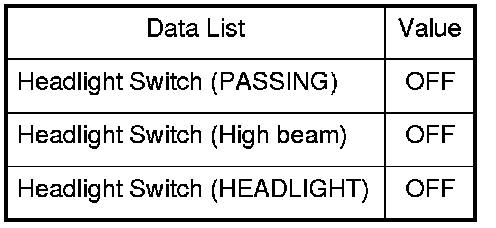

When the combination light switch is turned OFF





Are all data list values indicated OFF?
YES - Go to step 17.

NO - Go to step 14.


14. Turn the ignition switch to LOCK (0), or press the engine start/stop button to select the OFF mode.

15. Disconnect under-dash fuse/relay box connector R (24P).

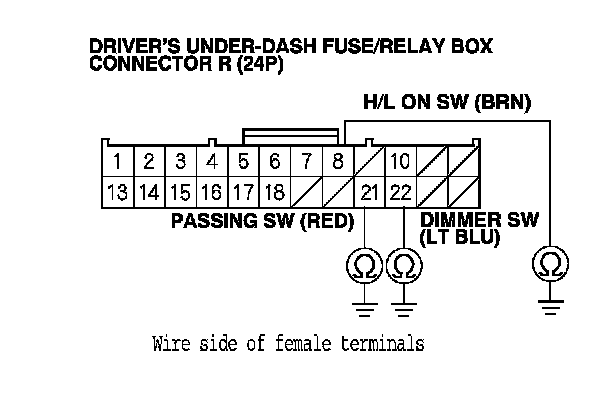

16. Check for continuity between body ground and driver's under-dash fuse/relay box connector R (24P) terminals No. 8, No. 21, and No. 22.

Is there continuity?
YES - Repair short to ground in the wire.

NO - Faulty driver's MICU; replace the driver's under-dash fuse/relay box. Driver's Under-Dash Fuse/Relay Box (MICU) Removal/Installation






17. Turn the ignition switch to LOCK (0), or press the engine start/stop button to select the OFF mode.

18. Do the combination light switch test. Service and Repair

Is the combination light switch OK?
YES - Go to step 19.

NO - Replace the combination light switch.


19. Disconnect driver's under-dash fuse/relay box connector R (24P).

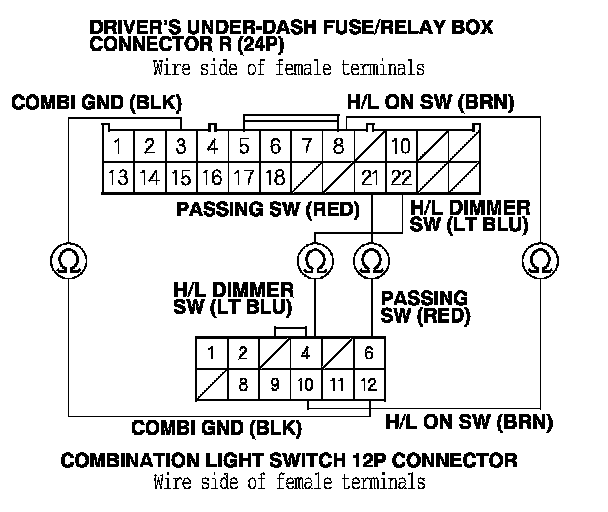

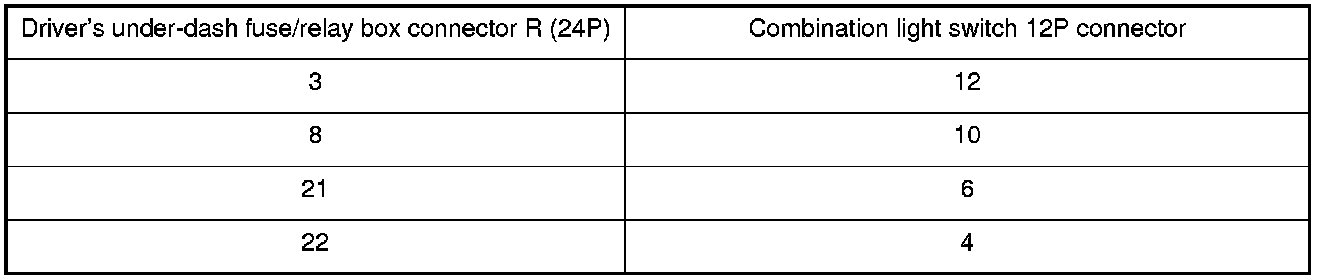

20. Check for continuity between driver's under-dash fuse/relay box connector R (24P) terminals and the combination light switch 12P connector terminals as shown:





Is there continuity?
YES - Go to step 21.

NO - Repair open in the wire.

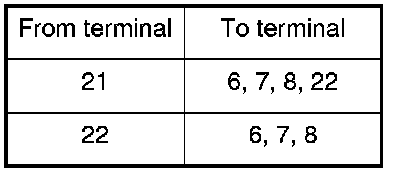

21. Check for continuity between driver's under-dash fuse/relay box connector R (24P) terminals as shown:





Is there continuity?
YES - Repair short between the wires.

NO - Faulty driver's MICU; replace the driver's under-dash fuse/relay box. Driver's Under-Dash Fuse/Relay Box (MICU) Removal/Installation
