Power Window Circuit Diagram

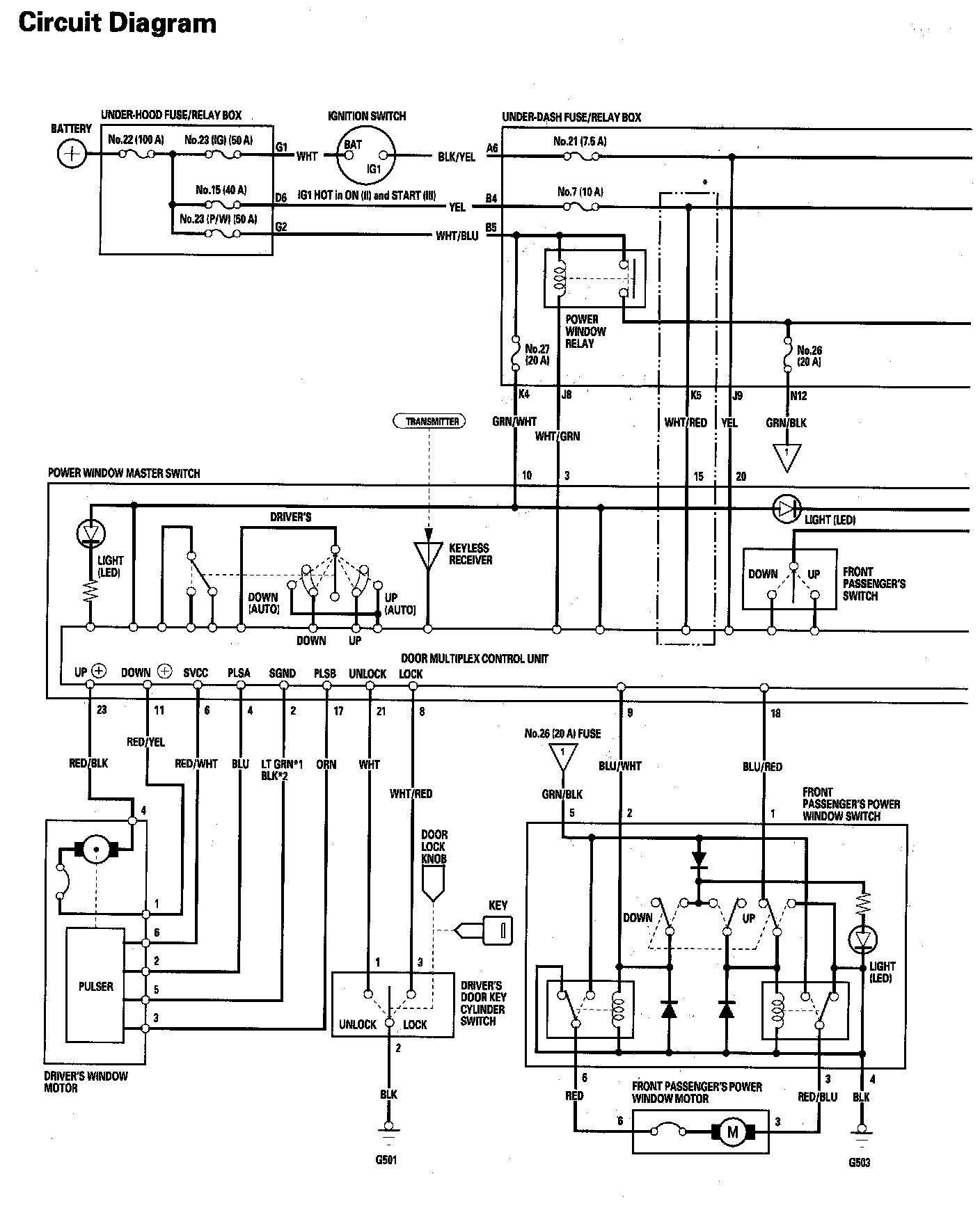

Power Windows Circuit Diagram Part 1:



Power Windows Circuit Diagram Part 2:
