Intermediate Shaft Removal
Intermediate Shaft Removal1. Drain the transmission fluid. Reinstall the drain plug with a new washer.
2. Remove the right driveshaft.

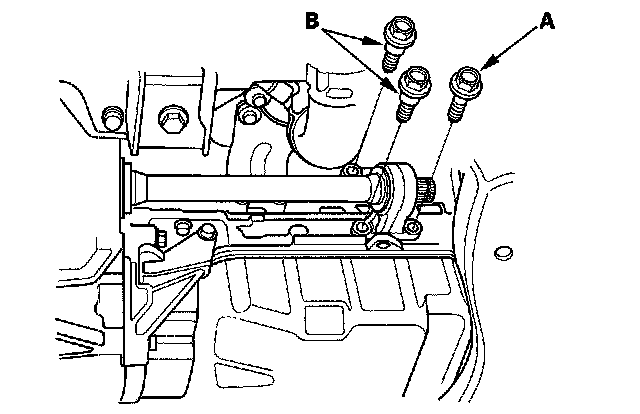

3. Remove the flange bolt (A) and two dowel bolts (B).

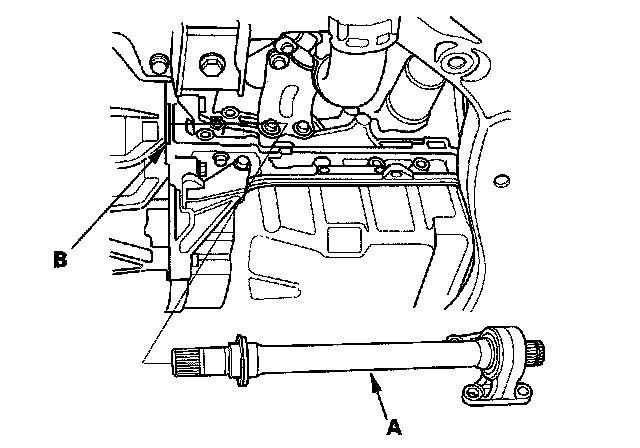

4. Remove the intermediate shaft (A) from the differential. Hold the intermediate shaft horizontally until it is clear of the differential to prevent damaging the differential oil seal (B).
