Intermediate Shaft Installation

Intermediate Shaft Installation

1. Install the new set ring.





2. Clean the areas where the intermediate shaft contacts the differential thoroughly with solvent or brake cleaner, and dry with compressed air.

NOTE: Do not wash the rubber parts with solvent.

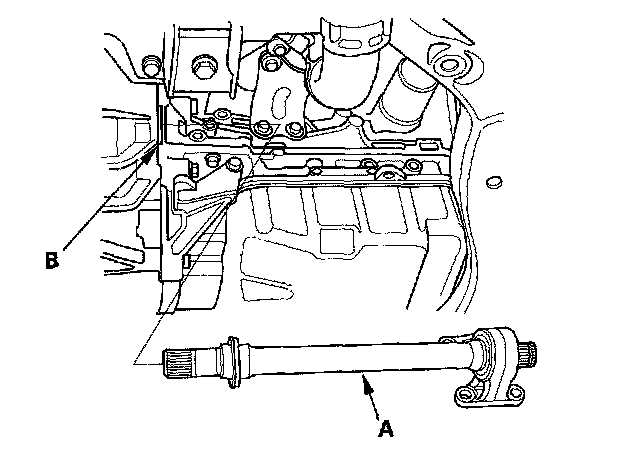

3. Insert the intermediate shaft assembly (A) into the differential until the set ring locks in the groove.

NOTE: Insert the intermediate shaft horizontally to prevent damaging the differential oil seal (B).





4. Install the flange bolt (A) and two dowel bolts (B).





5. Install the right driveshaft.
6. Refill the transmission with the recommended transmission fluid.
7. Test-drive the vehicle.
