Dynamic Damper Replacement

Dynamic Damper Replacement

1. Remove the inboard joint.
2. Remove the dynamic damper bands.
^ If the band is a welded type, cut the band.
^ If the band is a double loop type, lift up the band end, and push it into the clip.
^ If the band is a low profile type, pinch the band using commercially available boot band pliers.

3. Remove the dynamic damper.

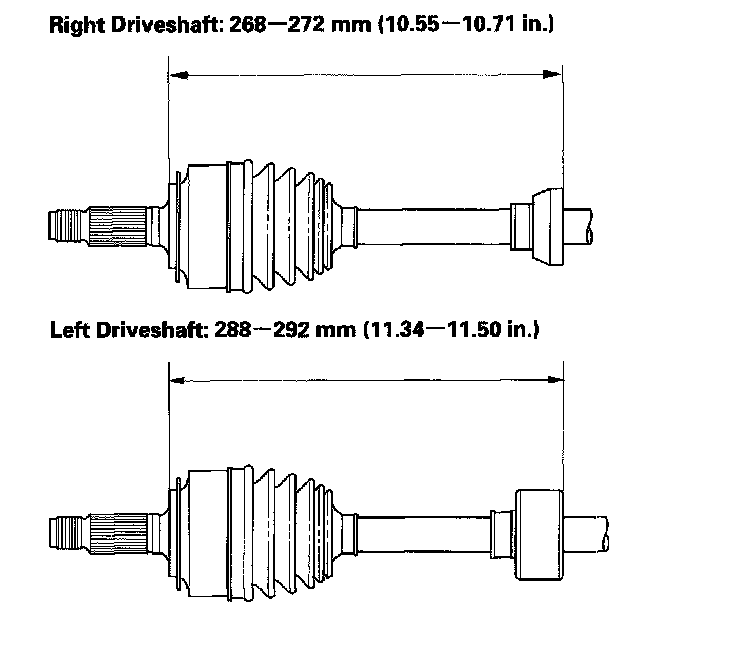

4. Adjust the position of the new dynamic damper to these measurements.

NOTE: Be careful not to swap the dynamic dampers. The right and left dynamic dampers are different.





5. Install the double loop band.
6. Install the inboard joint.
