Intermediate Shaft Reassembly

Intermediate Shaft Reassembly

Intermediate Shaft:

Special Tools Required
^ Oil seal driver 07GAD-PH70201
^ Attachment, 52 x 55 mm 07746-0010400
^ Attachment, 35 mm I.D. 07746-0030400
^ Driver 07749-0010000

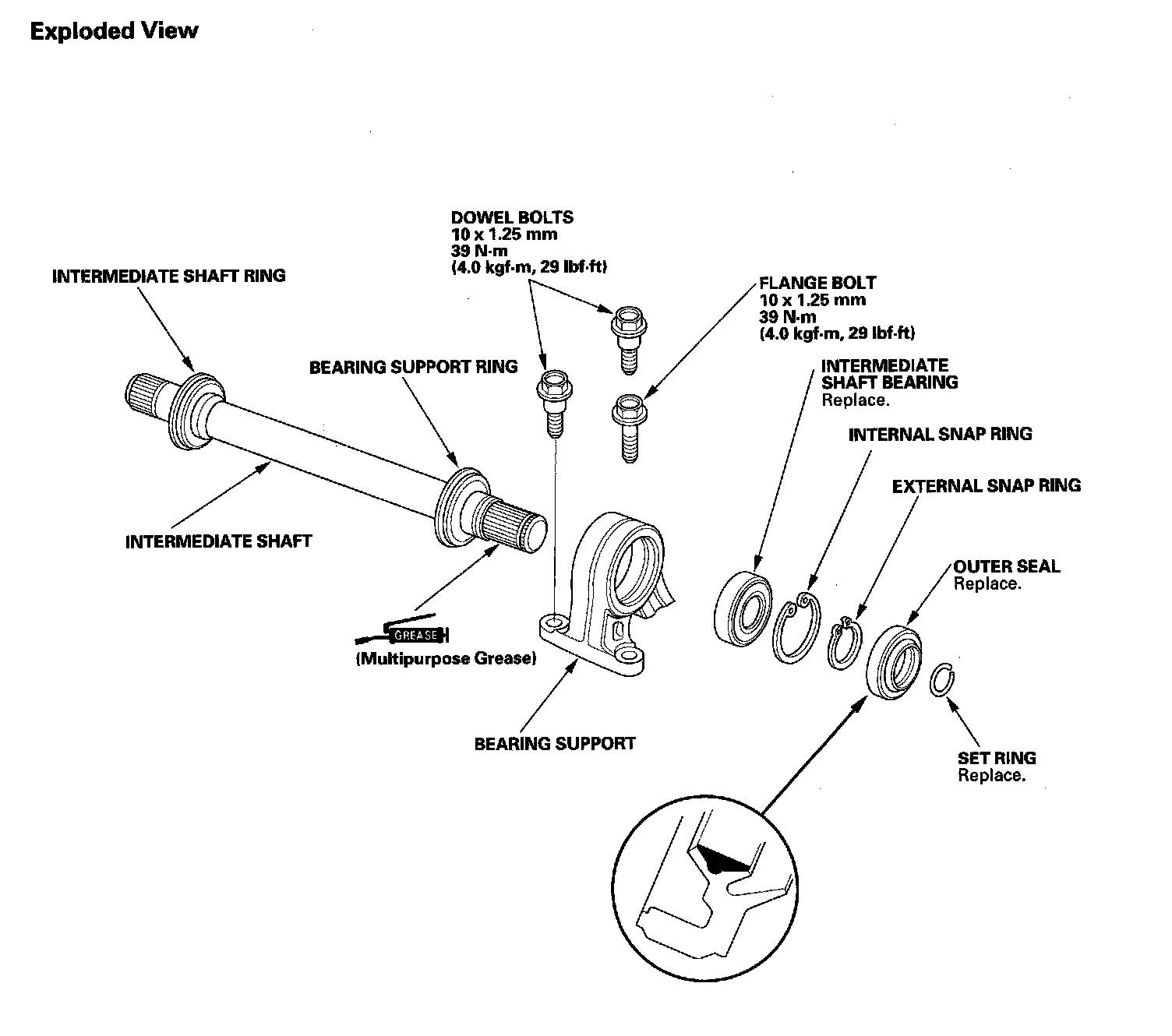

NOTE: Refer to the Exploded View, as needed, during this procedure.

1. Clean the disassembled parts with solvent, and dry them with compressed air. Do not wash the rubber parts with solvent.

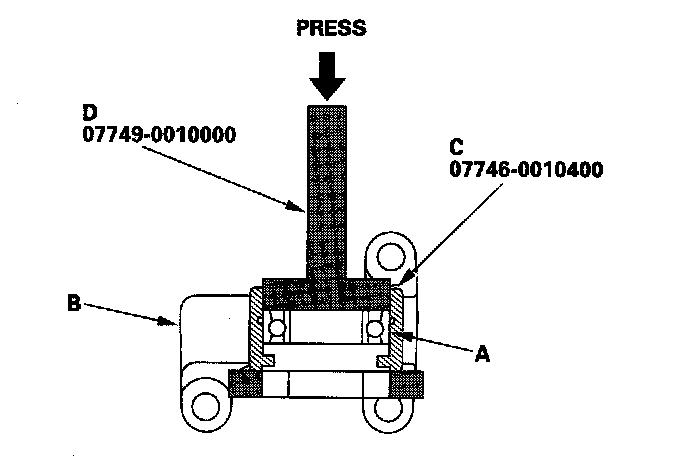

2. Press the intermediate shaft bearing (A) into the bearing support (B) using the 52 x 55 mm attachment (C), driver (D), and a press.

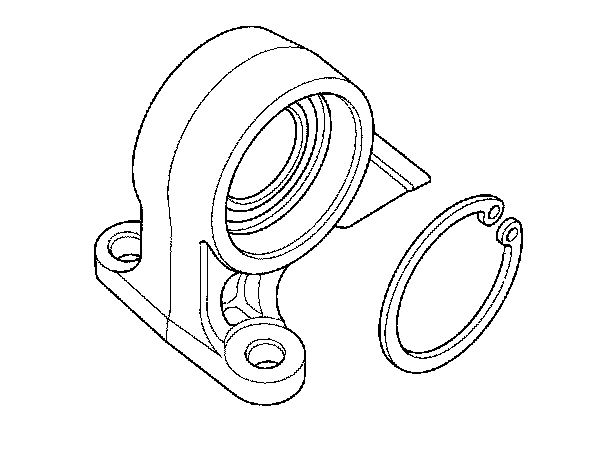

3. Seat the internal snap ring into the groove of the bearing support.

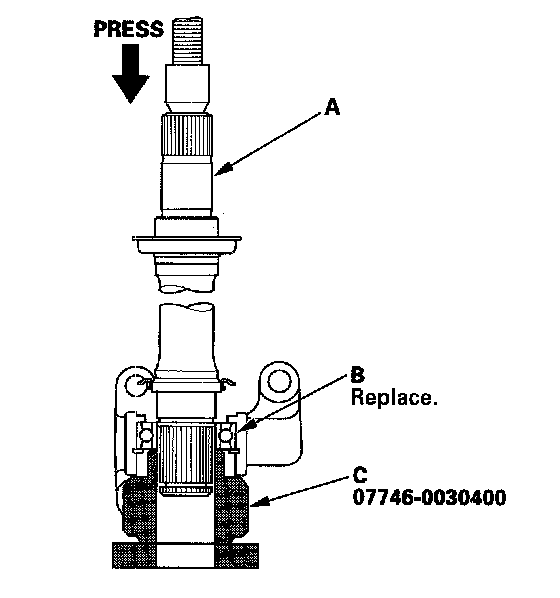

4. Press the intermediate shaft (A) into the new shaft bearing (B) using the 35 mm I. D. attachment (C) and a press.

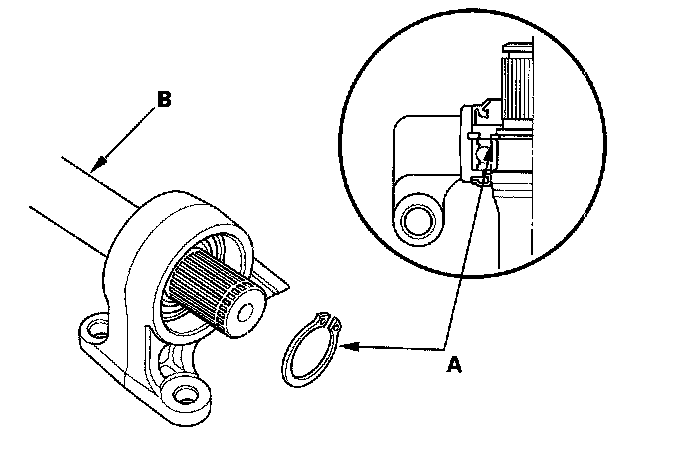

5. Seat the external snap ring (A) into the groove of the intermediate shaft (B).

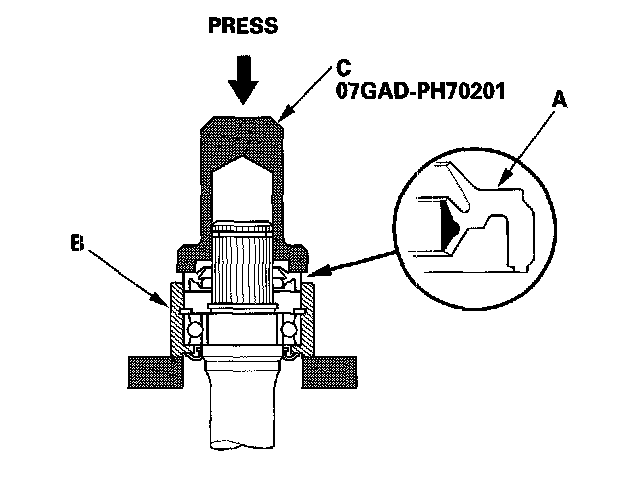

6. Install the new outer seal (A) into the bearing support (B) using the oil seal driver (C) and a press.
