Intermediate Shaft Disassembly

Intermediate Shaft Disassembly

Special Tools Required
^ Half shaft base 07NAF-SR30101
^ Oil seal driver 07947-SB00100

1. Remove the set ring (A), outer seal (B), and external snap ring (C).

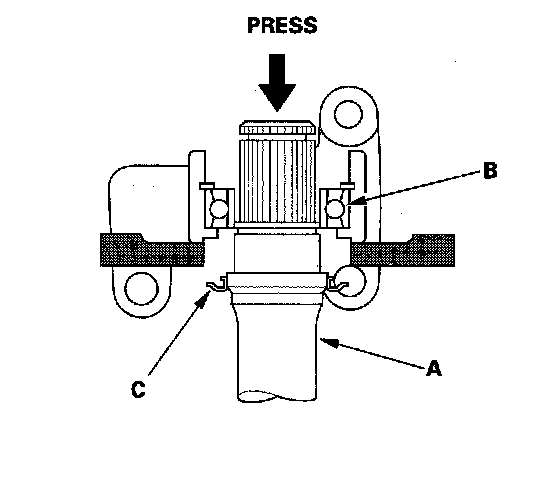

2. Press the intermediate shaft (A) out of the intermediate shaft bearing (B) using a press. Be careful not to damage the metal rings (C) on the intermediate shaft during disassembly.





3. Remove the internal snap ring.

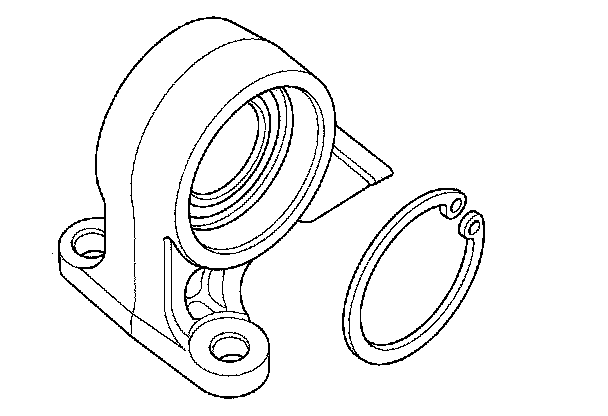

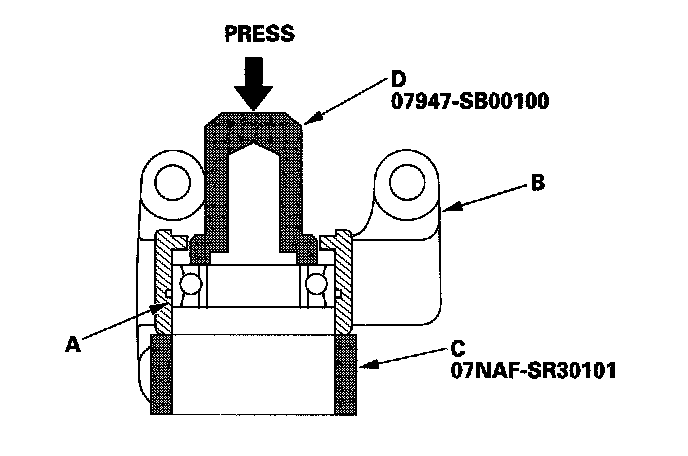

4. Press the intermediate shaft bearing (A) out of the bearing support (B) using the half shaft base (C), oil seal driver (D), and a press.
