Initiator Replacement

Initiator Replacement

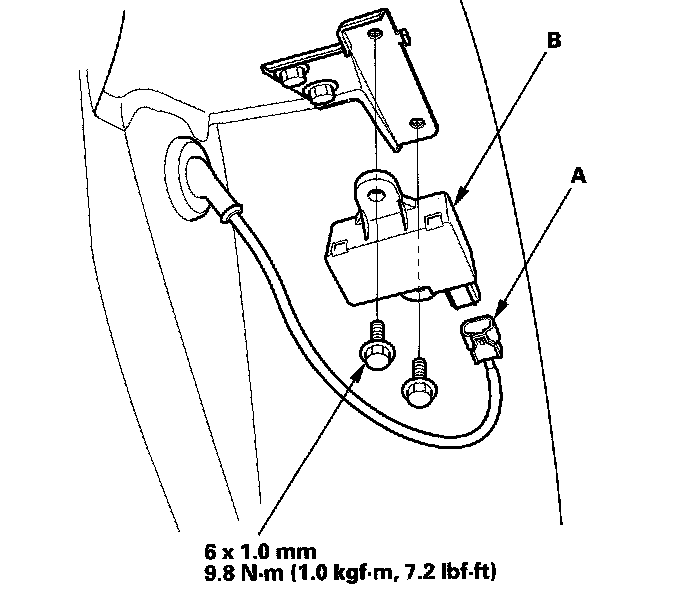

Front

NOTE: Make sure the initiator mounting bracket is not bent or twisted as this may affect its communication with the TPMS control unit and the tire pressure sensor.

1. Raise the front of the vehicle, and support it with safety stands in the proper locations.
2. Remove the front wheel.
3. Remove the front inner fender.
4. Disconnect the initiator connector (A).





5. Remove the initiator (B) from the inside of the wheel well.
6. Install the initiator in the reverse order of removal.

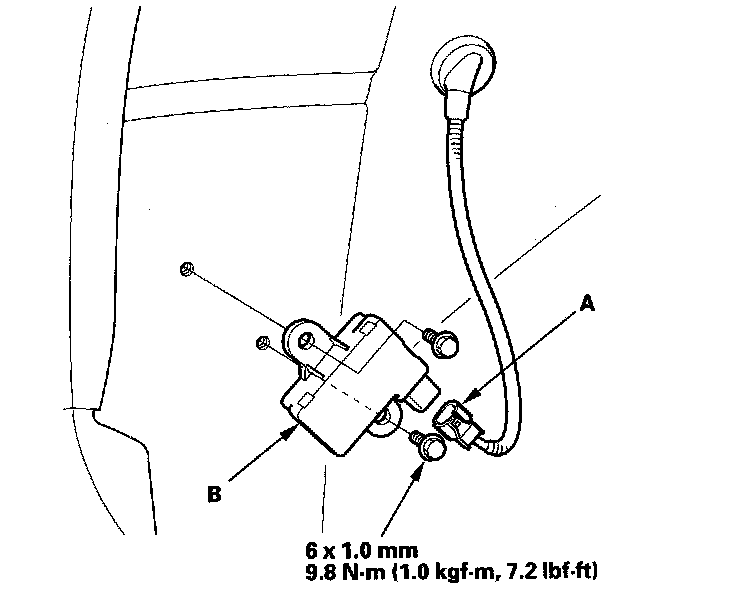

Rear
1. Raise the rear of the vehicle, and support it with safety stands in the proper locations.
2. Remove the rear wheel.
3. Remove the rear inner fender.
4. Disconnect the initiator connector (A).





5. Remove the initiator (B) from the inside of the wheelwell.
6. Install the initiator in the reverse order of removal.
