Power Seat Switch: Diagrams

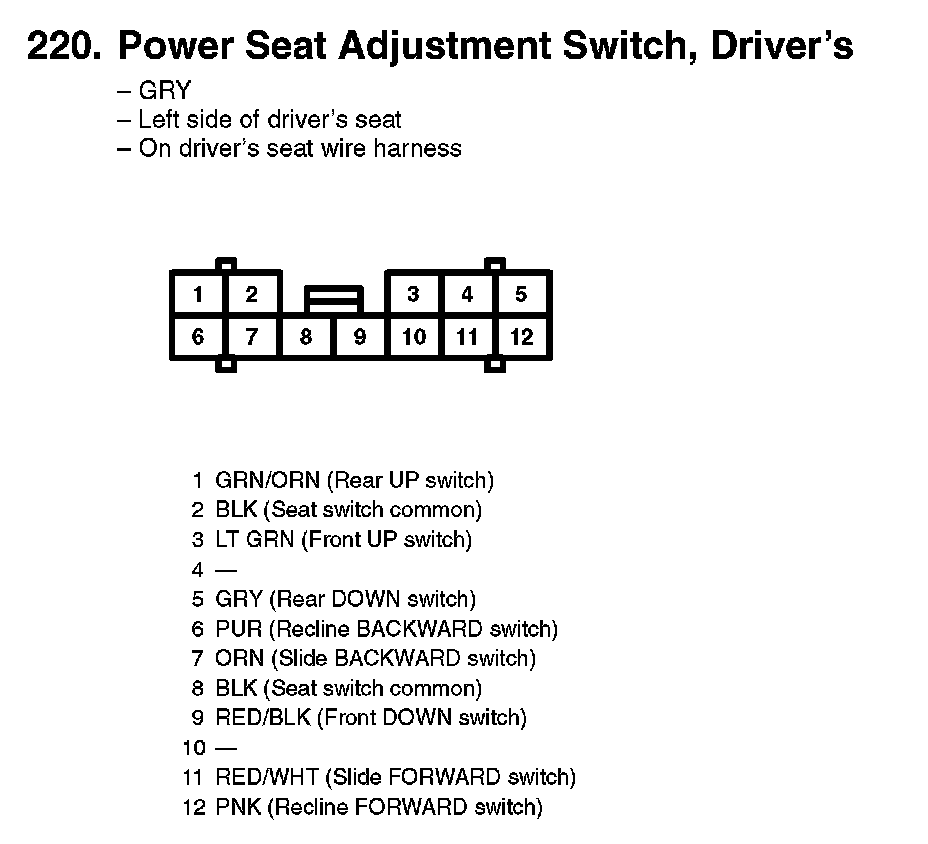

220. Power Seat Adjustment Switch, Driver's:

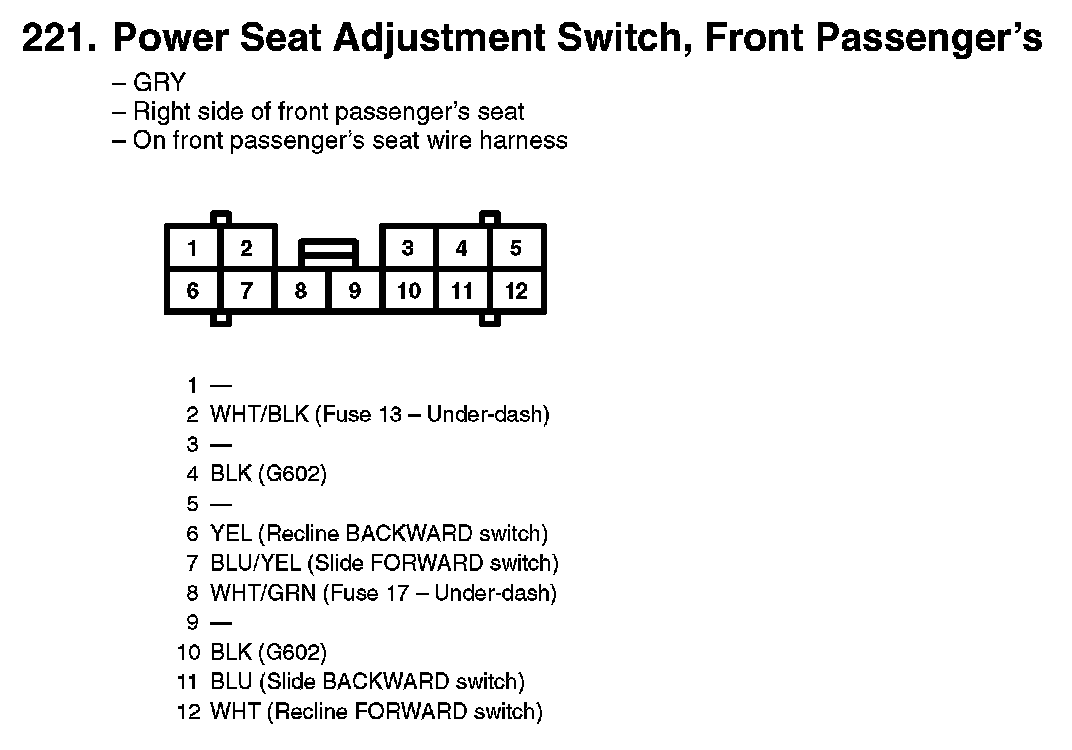

221. Power Seat Adjustment Switch, Front Passenger's:
