Home >> Acura >> 2007 >> TSX L4-2.4L >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Accessories and Optional Equipment >> Remote Switch >> Locations

Remote Switch: Locations

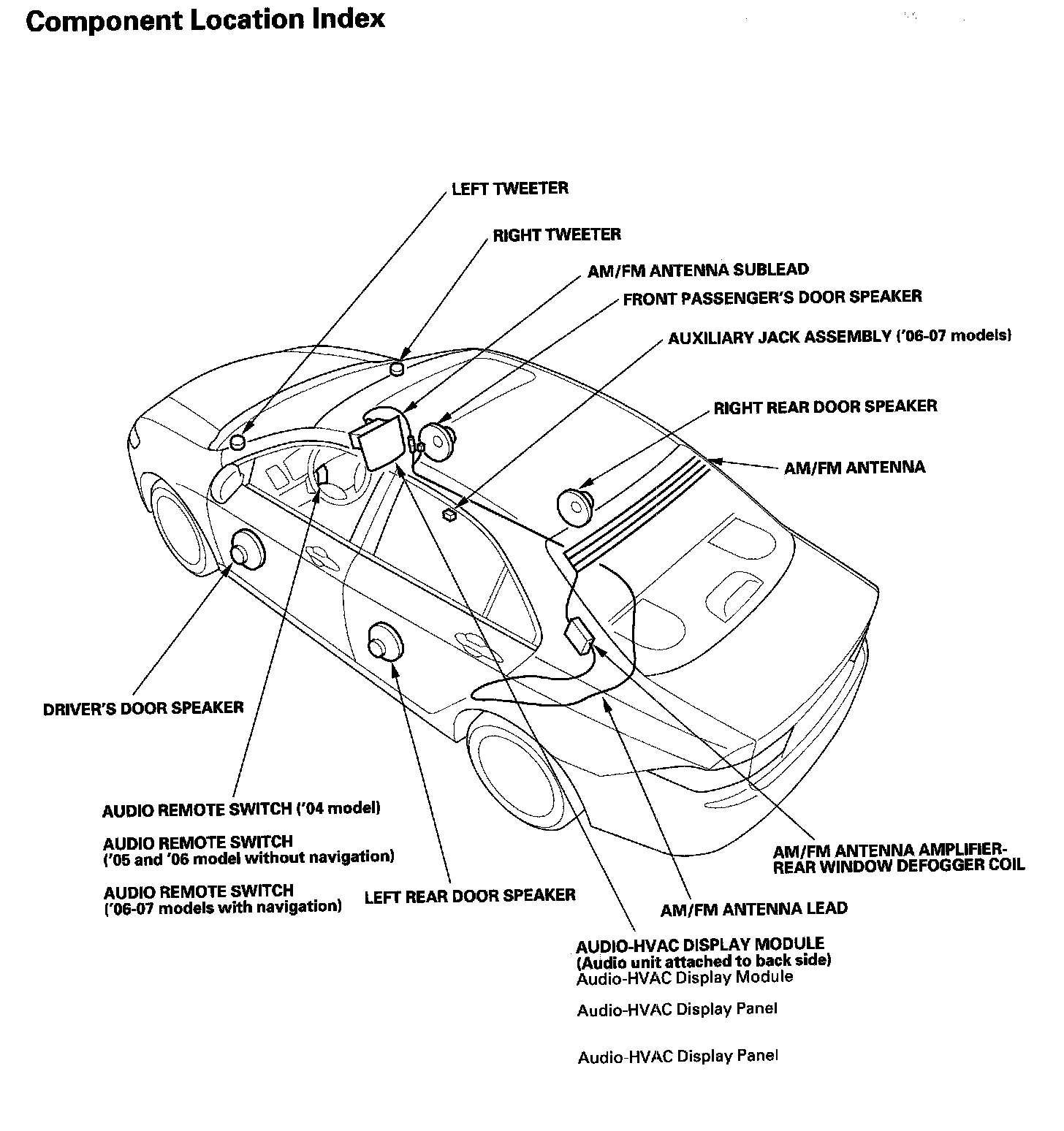

Audio System Component Location Index:

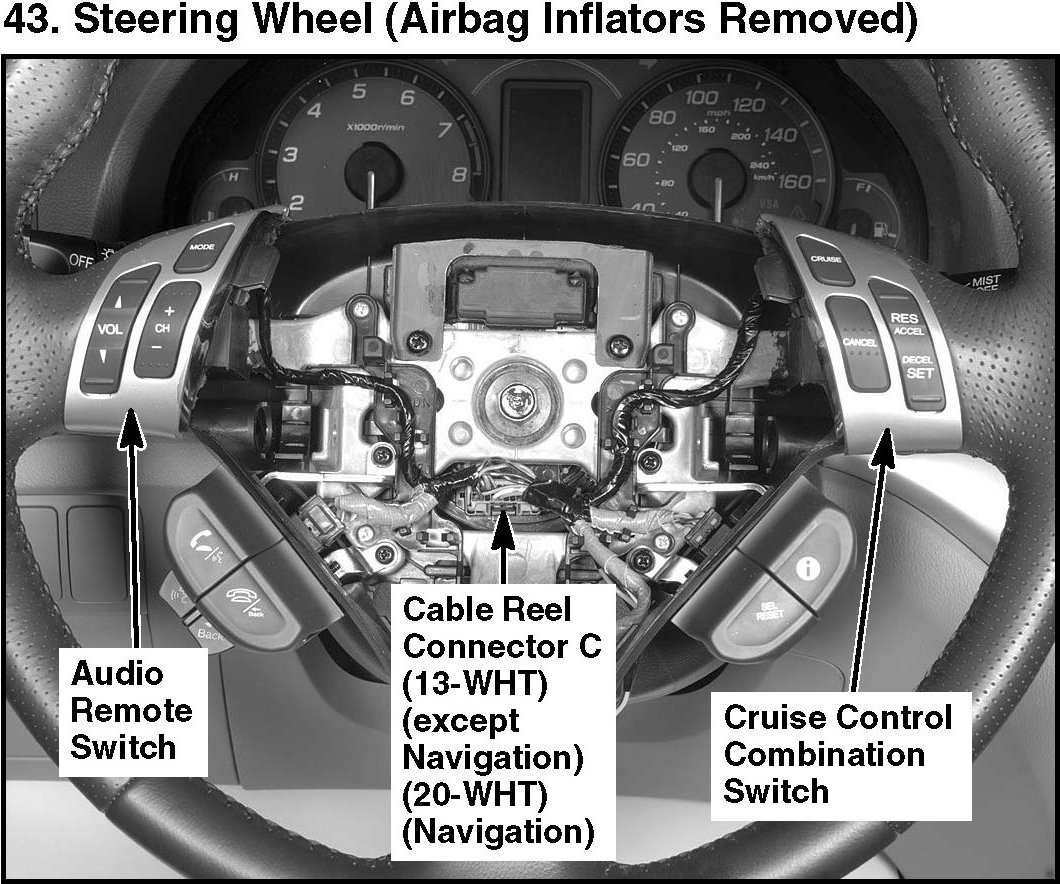

43. Steering Wheel (Airbag Inflators Removed):
