Seat Belt Buckle Switch: Diagrams

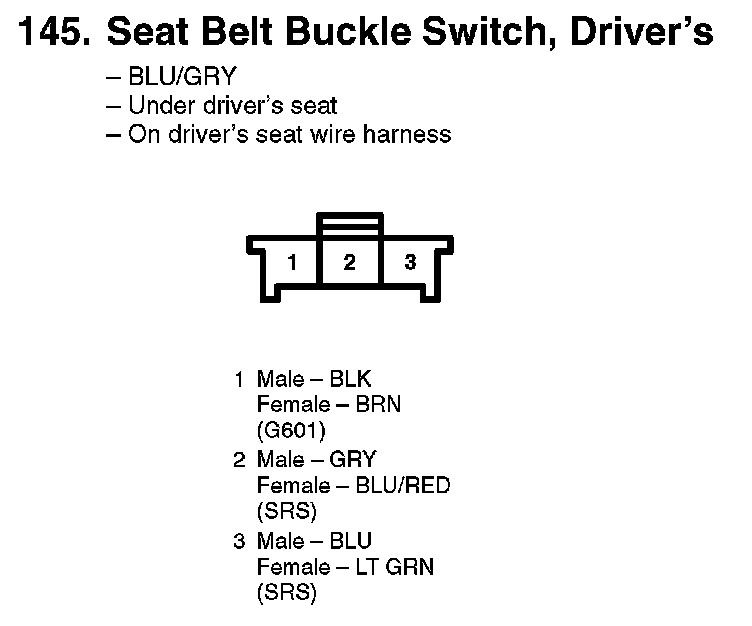

145. Seat Belt Buckle Switch, Driver's:

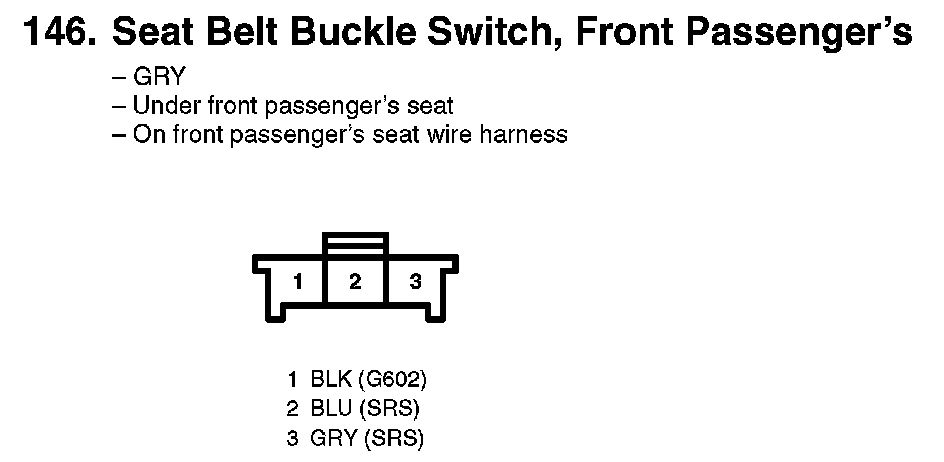

146. Seat Belt Buckle Switch, Front Passenger's:
