Tire Pressure Module: Diagrams

TPMS Control Unit Inputs And Outputs 20P Connector (Part 1):



TPMS Control Unit Inputs And Outputs 20P Connector (Part 2):

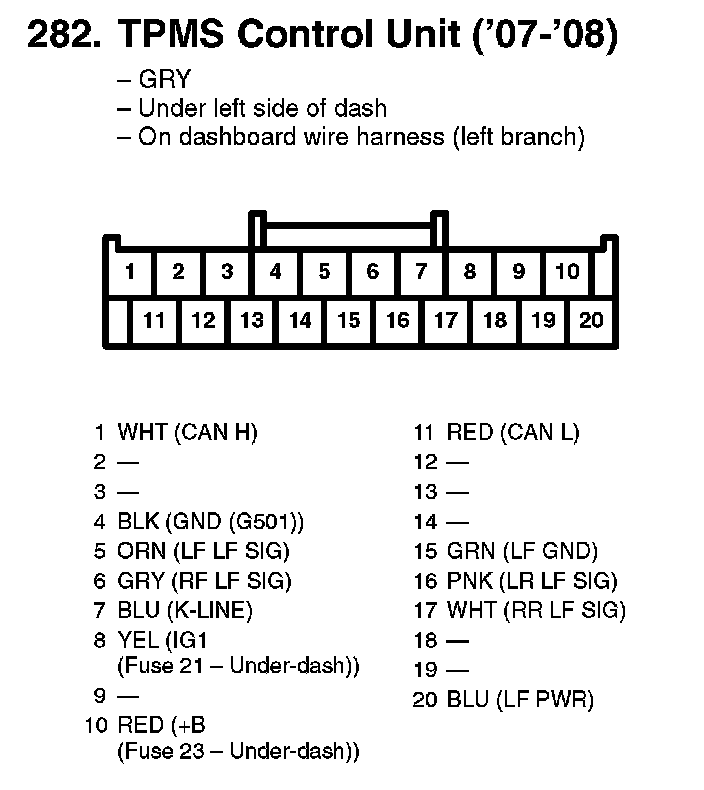

282. TPMS Control Unit:
