3rd Clutch Transmission Fluid Pressure Switch Replacement
3rd Clutch Transmission Fluid Pressure Switch Replacement1. Make sure you have anti-theft codes for the audio and the navigation system (if equipped), then write down the audio presets.
2. Disconnect the battery negative terminal, then disconnect the battery positive terminal.
3. Remove the battery hold-down bracket, then remove the battery cover, the battery, and the battery tray.
4. Remove the air intake duct and the air cleaner assembly.
5. Loosen the two bolts securing the battery base from under the vehicle, and remove the two bolts securing the battery base in the engine compartment, then remove the battery base.

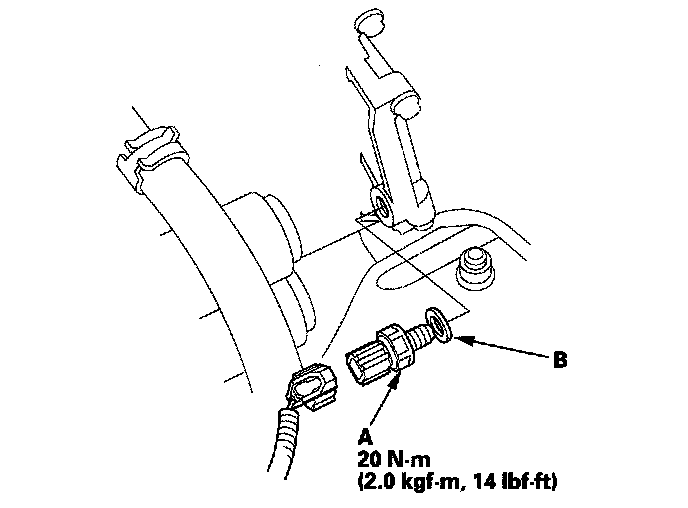

6. Disconnect the connector from the 3rd clutch transmission fluid pressure switch (A), then remove the switch.
7. Make sure there is no water, oil, dust, or foreign particles inside the connector.
8. Install the 3rd clutch transmission fluid pressure switch with a new sealing washer (B), and tighten the switch to the specified torque on the metal part, not the plastic part.
9. Connect the connector securely.
10. Install the battery base, then install the air cleaner assembly and the air intake duct.
11. Install the battery tray, the battery, and the battery cover, then secure the battery with its hold-down bracket.
12. Clean the battery posts and cable terminals, then assemble them and apply grease to prevent corrosion.
13. Enter the anti-theft codes for the audio and the navigation system (if equipped), enter the audio presets, and set the clock.
