Home >> Acura >> 2007 >> TSX L4-2.4L >> Repair and Diagnosis >> Powertrain Management >> Sensors and Switches - Powertrain Management >> Sensors and Switches - Computers and Control Systems >> Fuel Tank Pressure Sensor >> Locations

Fuel Tank Pressure Sensor: Locations

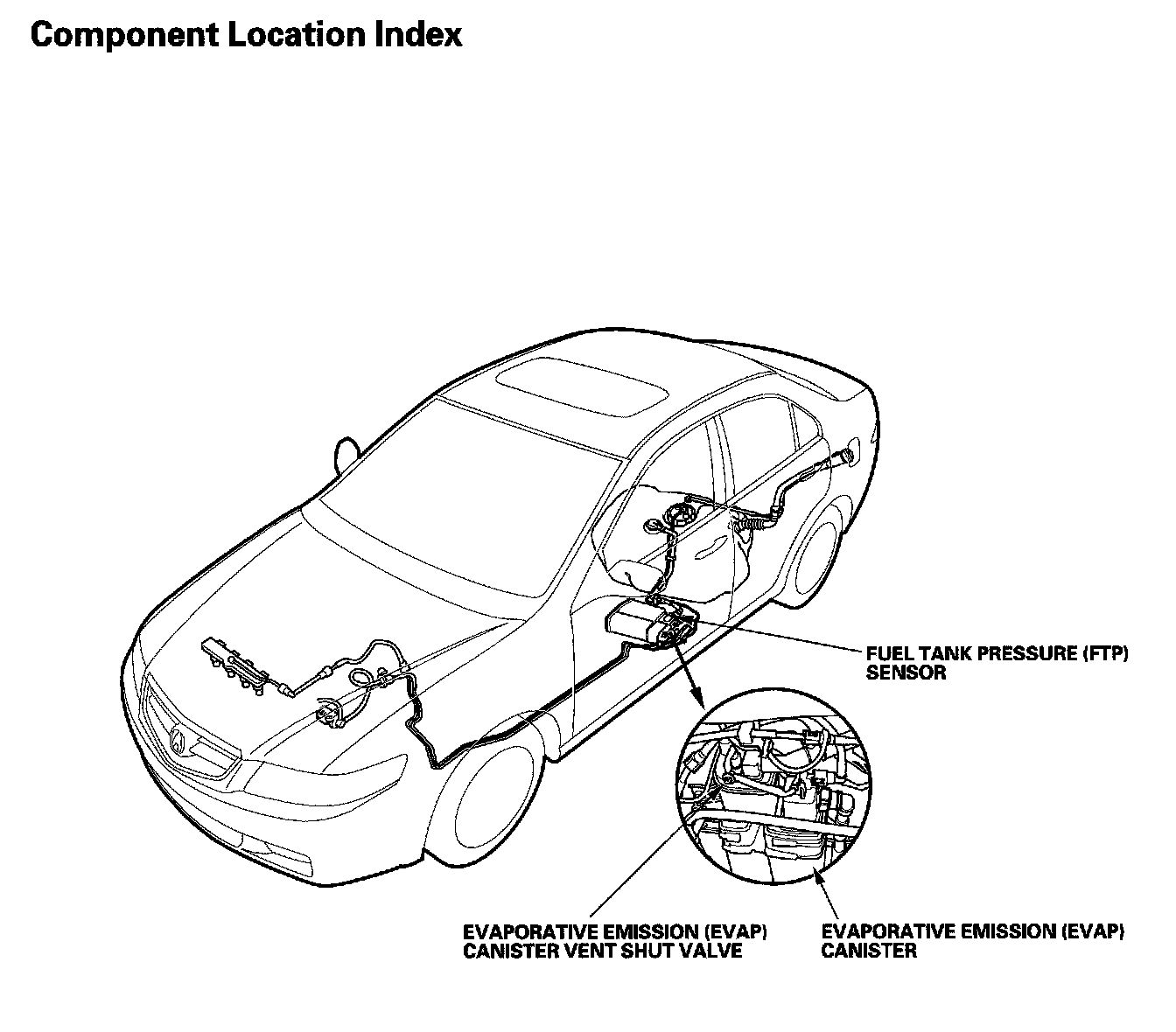

EVAP System Component Location Index Part 2:

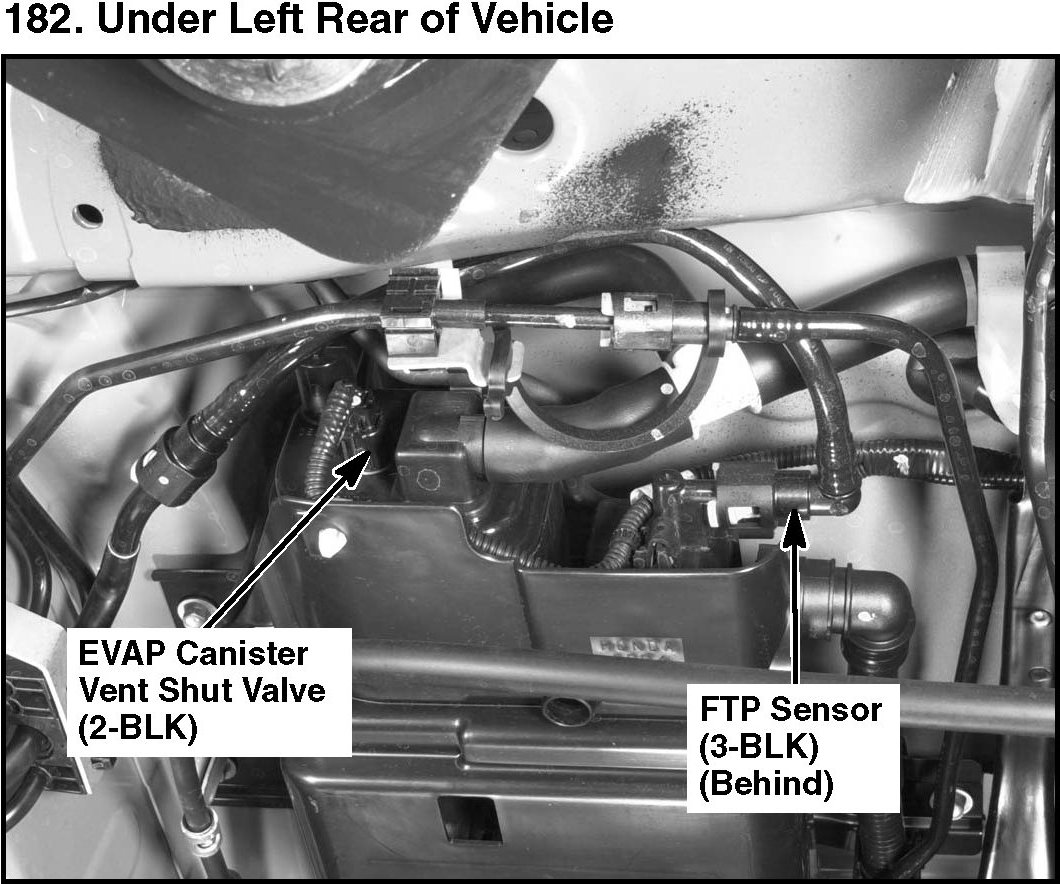

182. Under Left Rear Of Vehicle:
