Engine Control Module: Locations

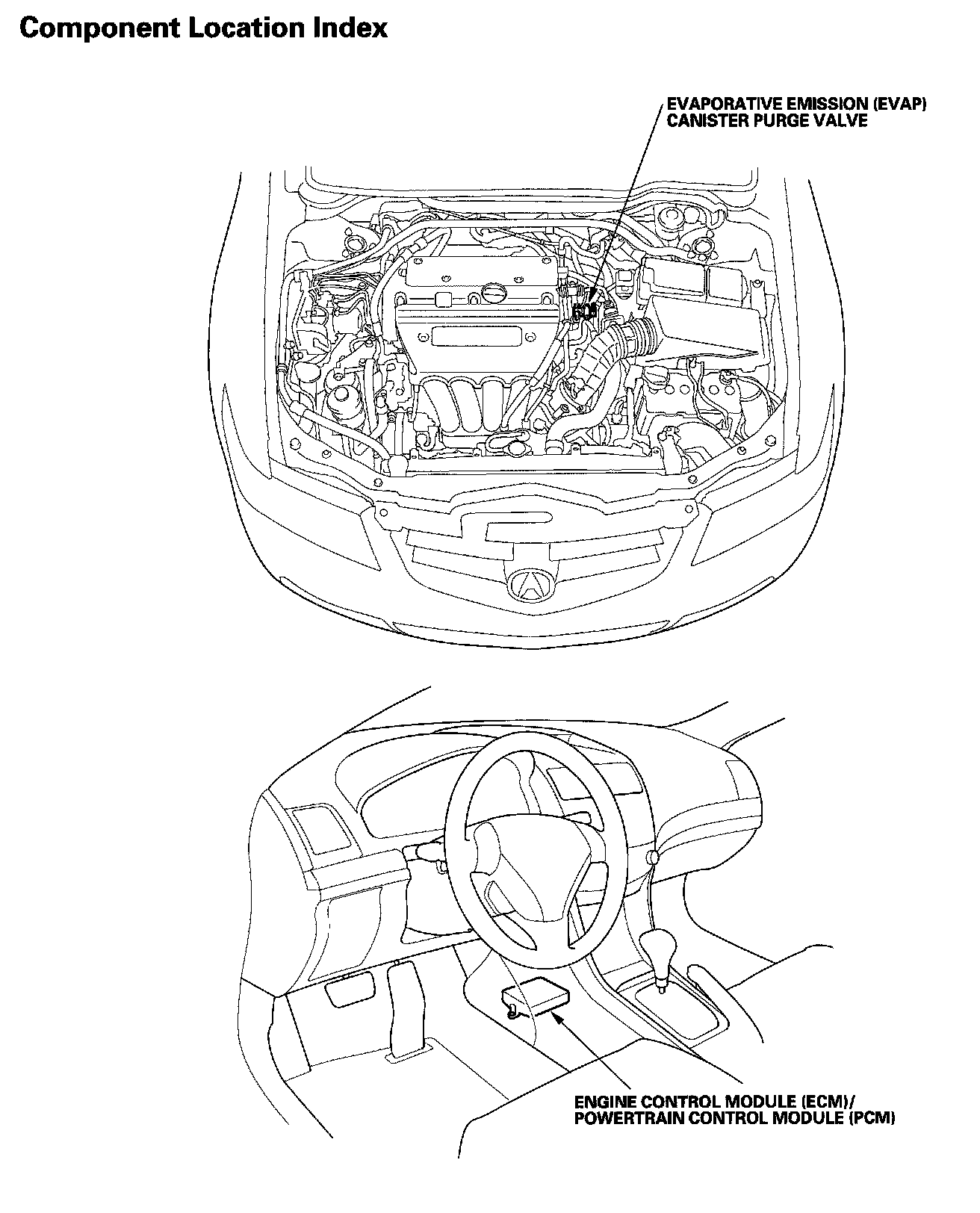

EVAP System Component Location Index Part 1:

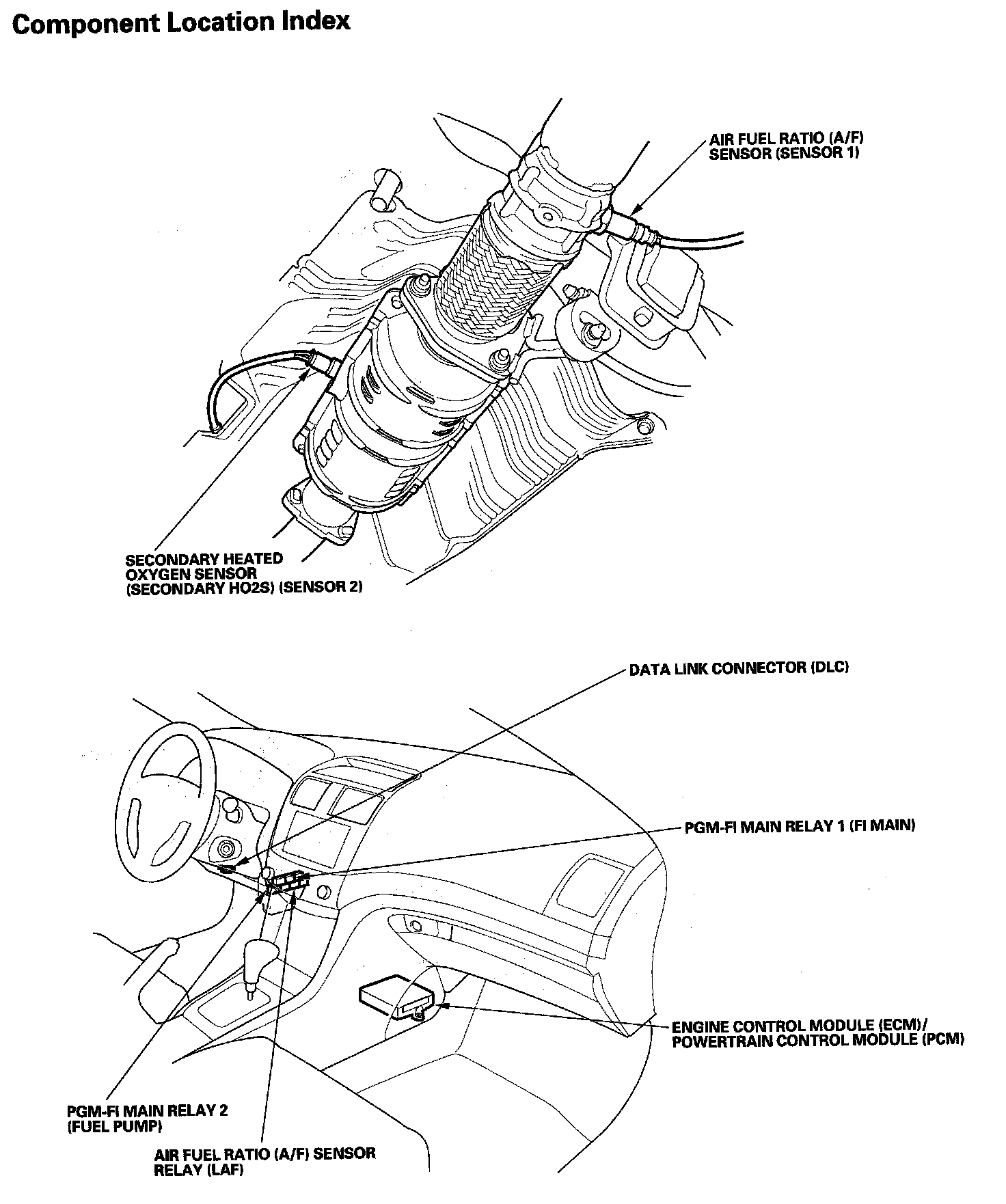

PGM-FI System Component Location Index Part 2:

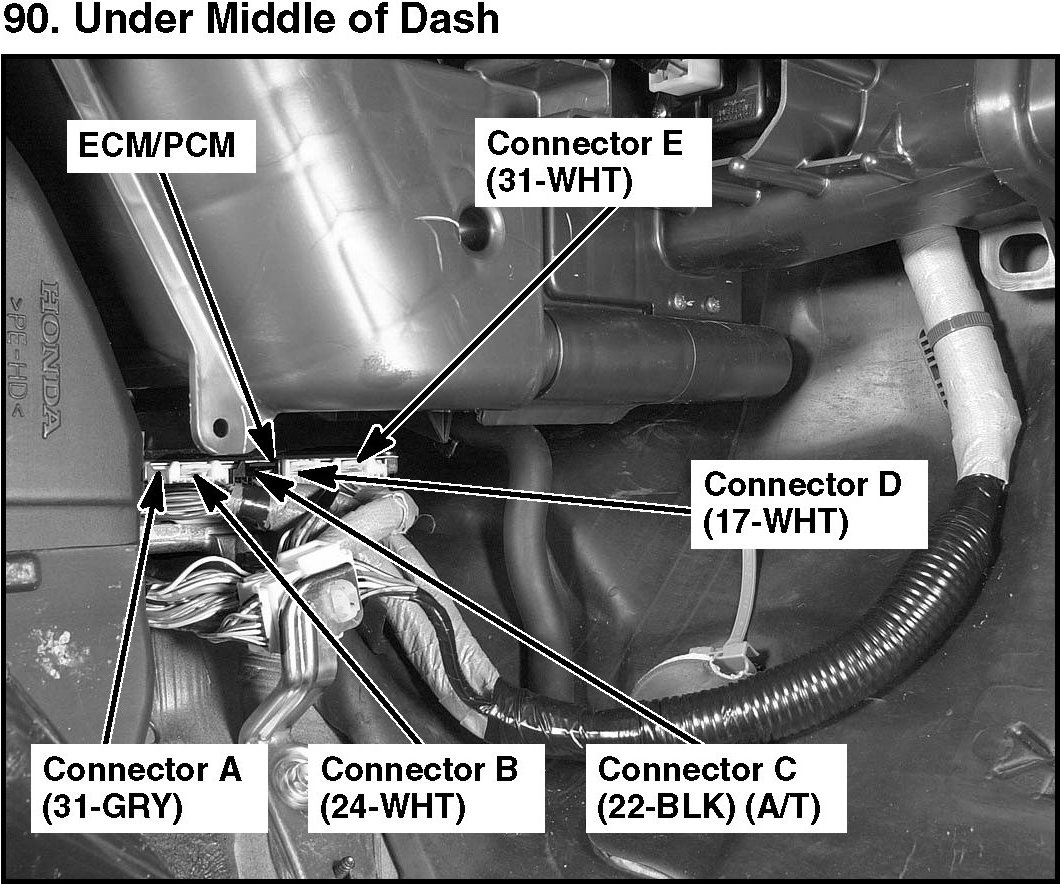

90. Under Middle Of Dash:
