Side Turn Signal Light Replacement

Side Turn Signal Light Replacement

1. Remove the power mirror actuator.

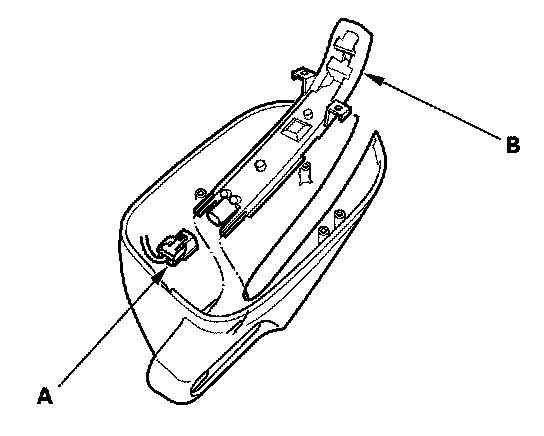

2. Disconnect 2P connector (A) from the side turn signal light (B).
3. Install in the reverse order of removal.
