Front Parking Light, Front Turn Signal Light Replacement

Bulb Replacement

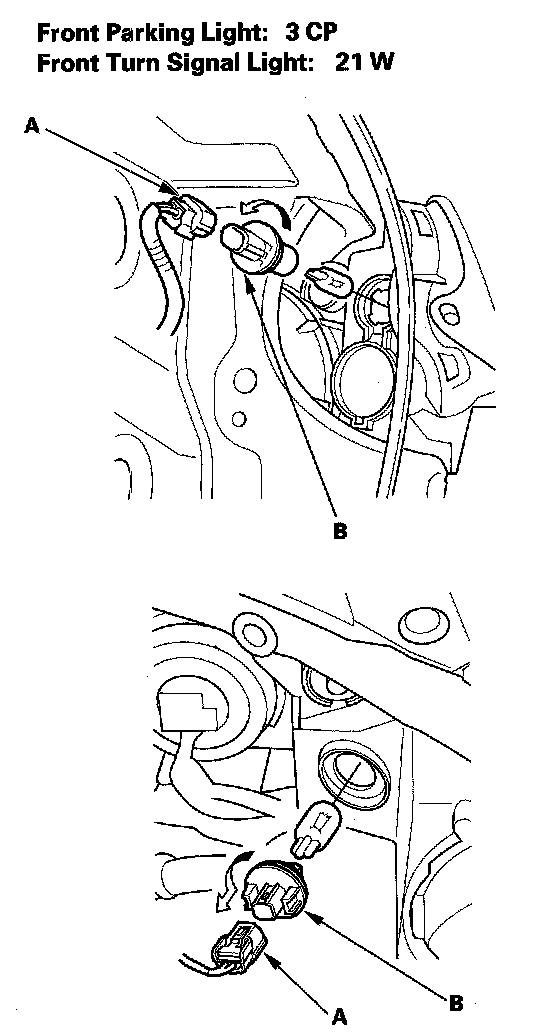

Front Parking Light, Front Turn Signal Light




1. Disconnect the 2P connector (A) from the light.
2. Turn the bulb socket (B) 45° counterclockwise to remove it from the headlight housing.
3. Install a new bulb in the reverse order of removal.
