Turn Signal Lamp: Diagrams

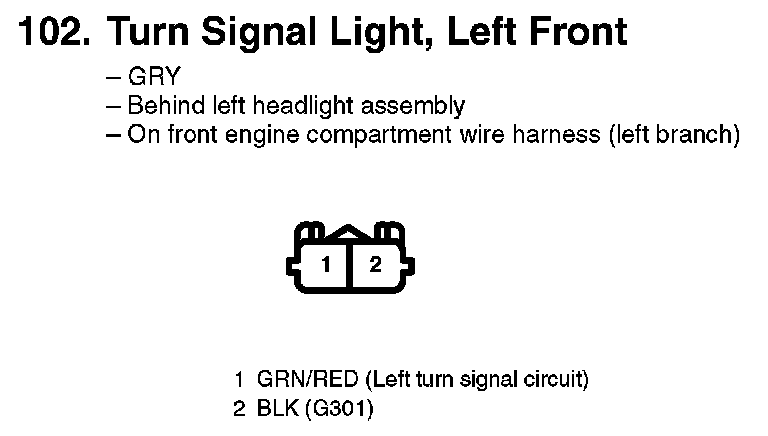

102. Turn Signal Light, Left Front:

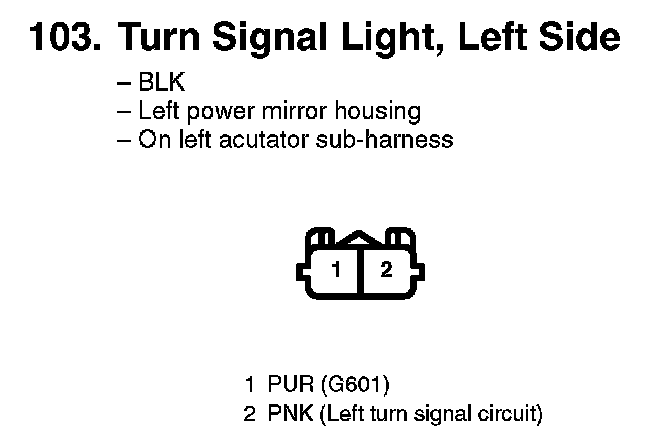

103. Turn Signal Light, Left Side:

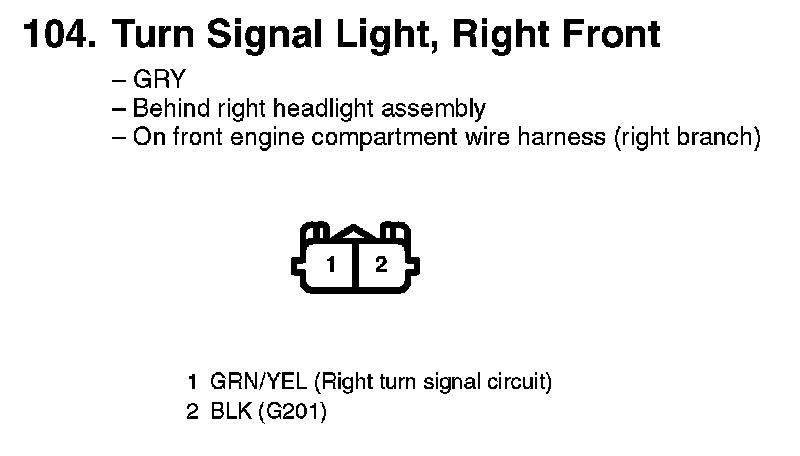

104. Turn Signal Light, Right Front:

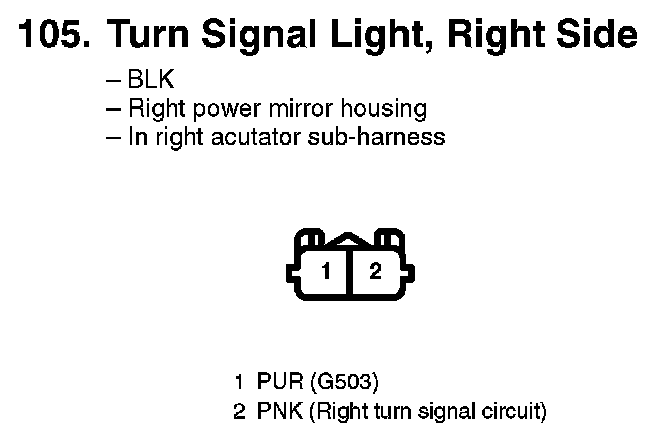

105. Turn Signal Light, Right Side:

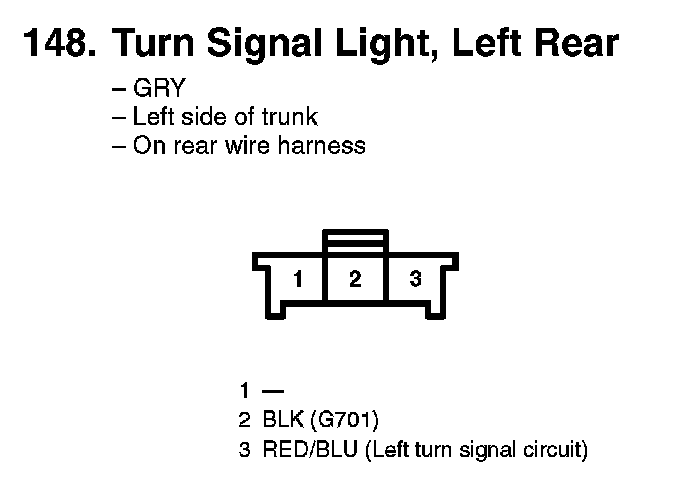

148. Turn Signal Light, Left Rear:

149. Turn Signal Light, Right Rear:
