Home >> Acura >> 2007 >> TSX L4-2.4L >> Repair and Diagnosis >> Lighting and Horns >> Relays and Modules - Lighting and Horns >> Fog/Driving Lamp Relay >> Diagrams

Fog/Driving Lamp Relay: Diagrams

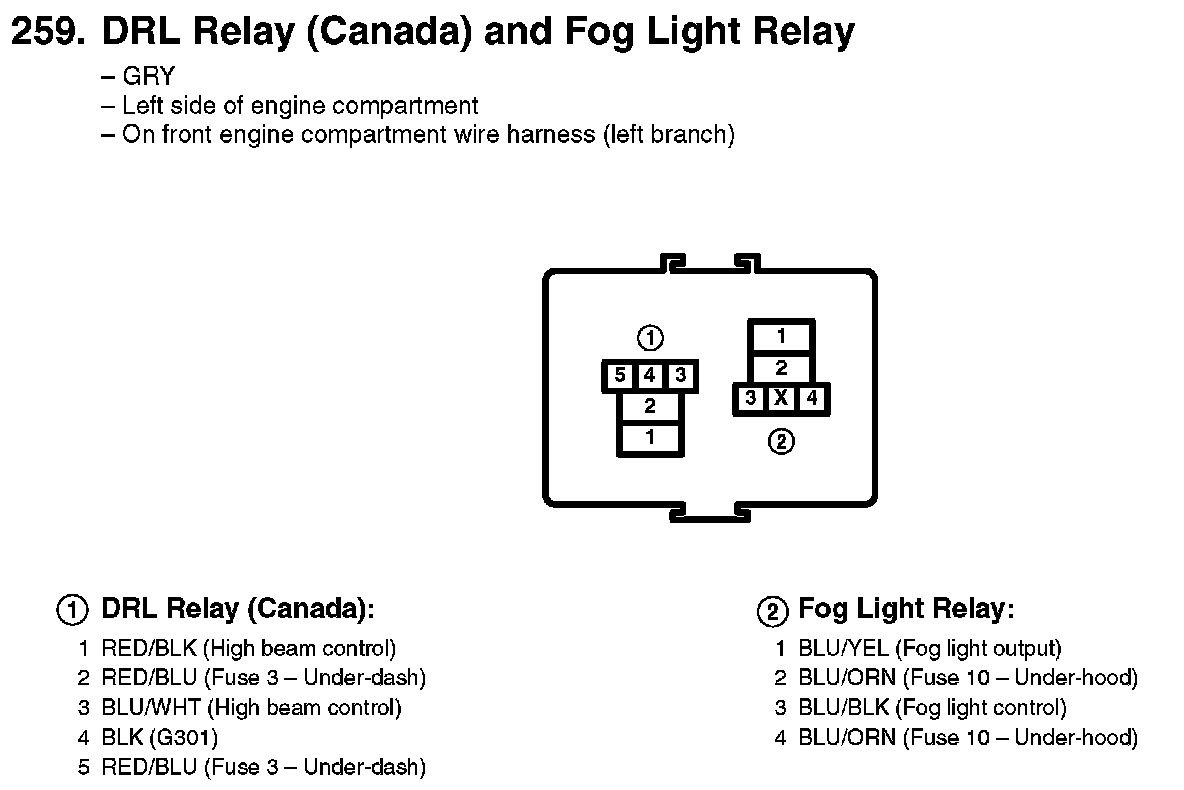

259. DRL Relay (Canada) And Fog Light Relay:
