Courtesy Light Replacement
Courtesy Light Replacement
Courtesy Light Replacement

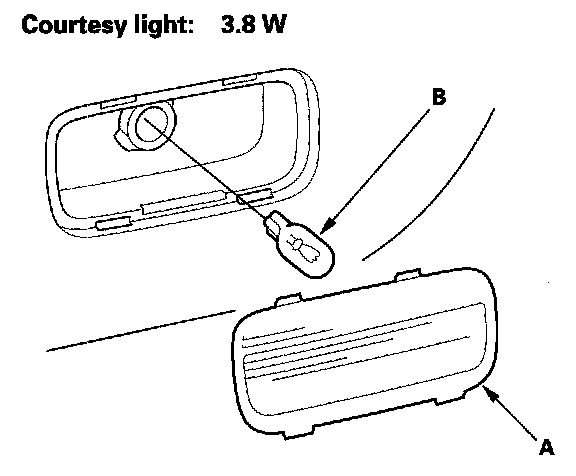

1.
Carefully pry off the lens (A) with a small screwdriver.
2.
Remove the bulb (B) from the socket.
