Home >> Acura >> 2007 >> TSX L4-2.4L >> Repair and Diagnosis >> Heating and Air Conditioning >> Testing and Inspection >> Pinout Values and Diagnostic Parameters

Pinout Values and Diagnostic Parameters

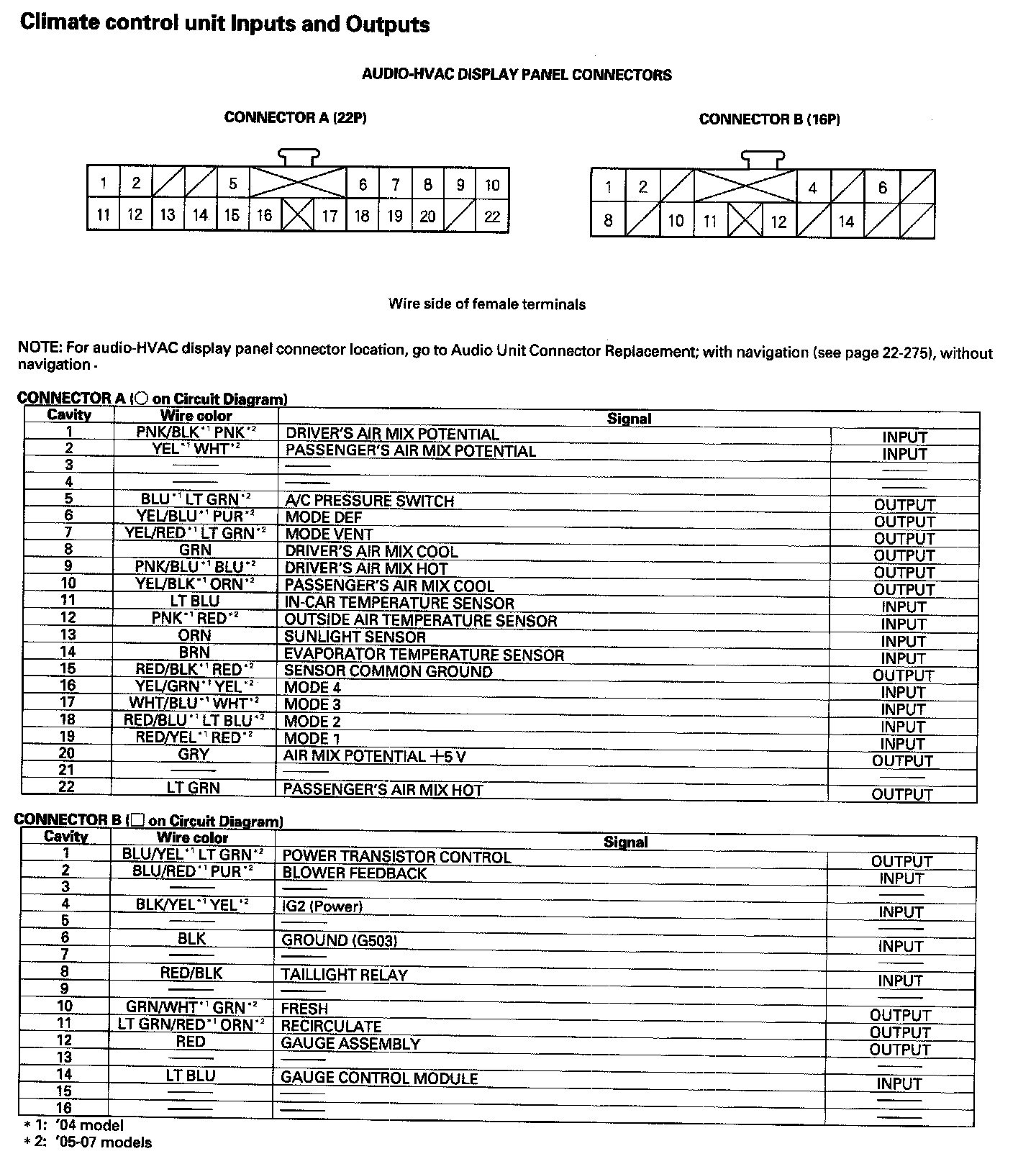

Climate Control Unit Inputs And Outputs:
