Home >> Acura >> 2007 >> TSX L4-2.4L >> Repair and Diagnosis >> Diagrams >> Harness >> Throttle Actuator Control Module Sub-Harness

Throttle Actuator Control Module Sub-Harness

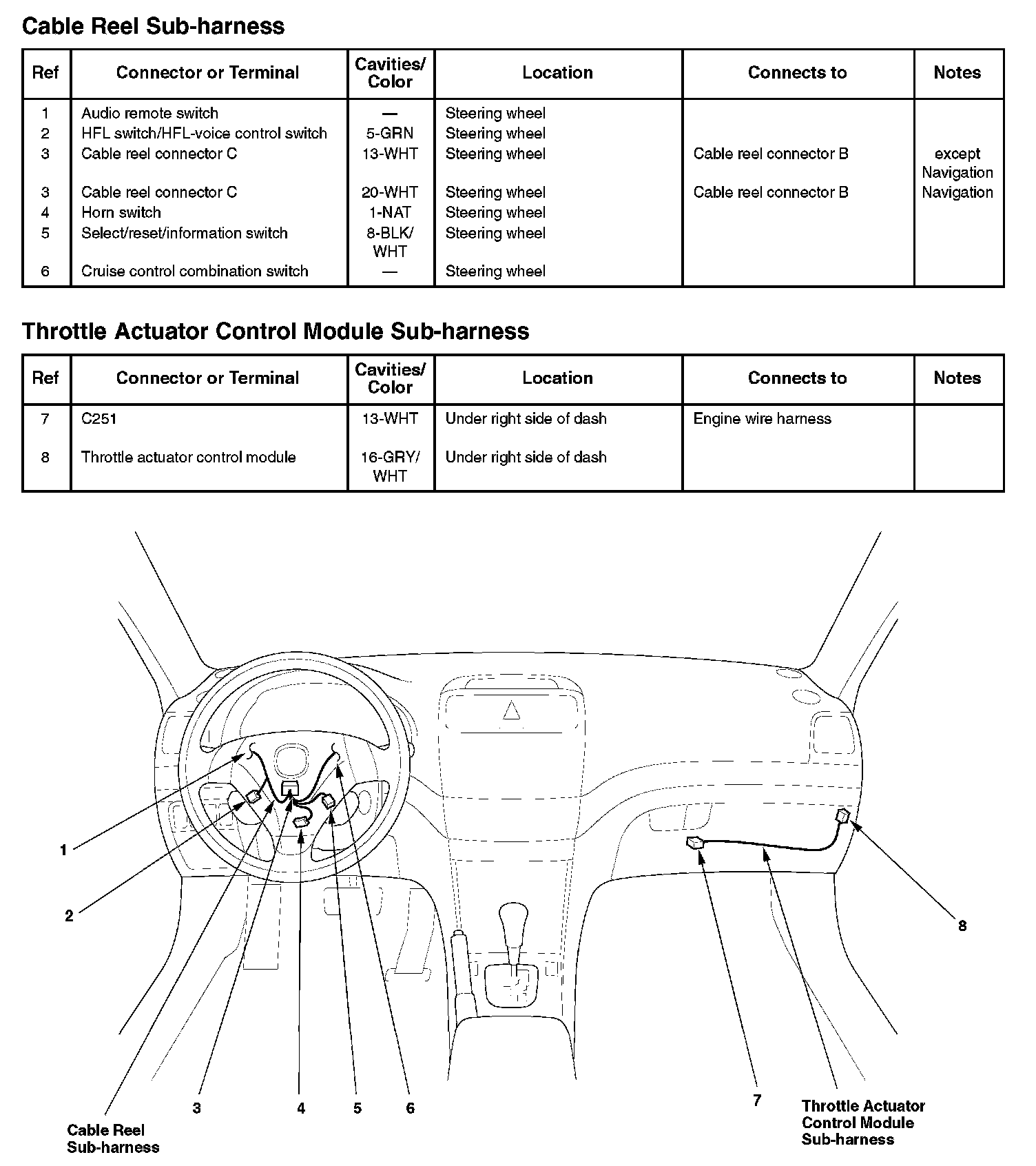

Cable Reel Sub-harness/Throttle Actuator Control Module Sub-harness:
