Home >> Acura >> 2007 >> TSX L4-2.4L >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Cylinder Head Assembly

Cylinder Head Assembly

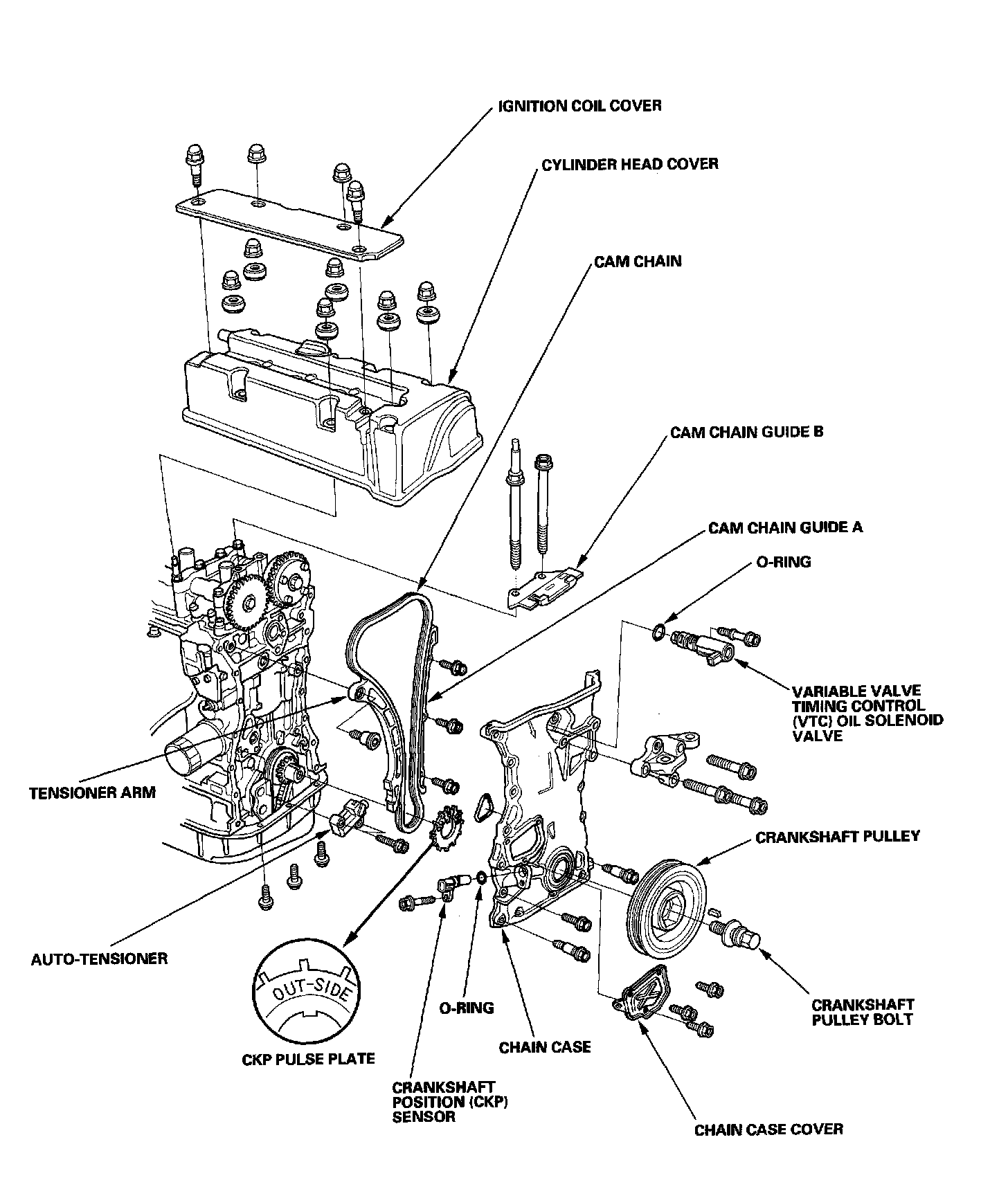

Cylinder Head Component Location Index (part 1):

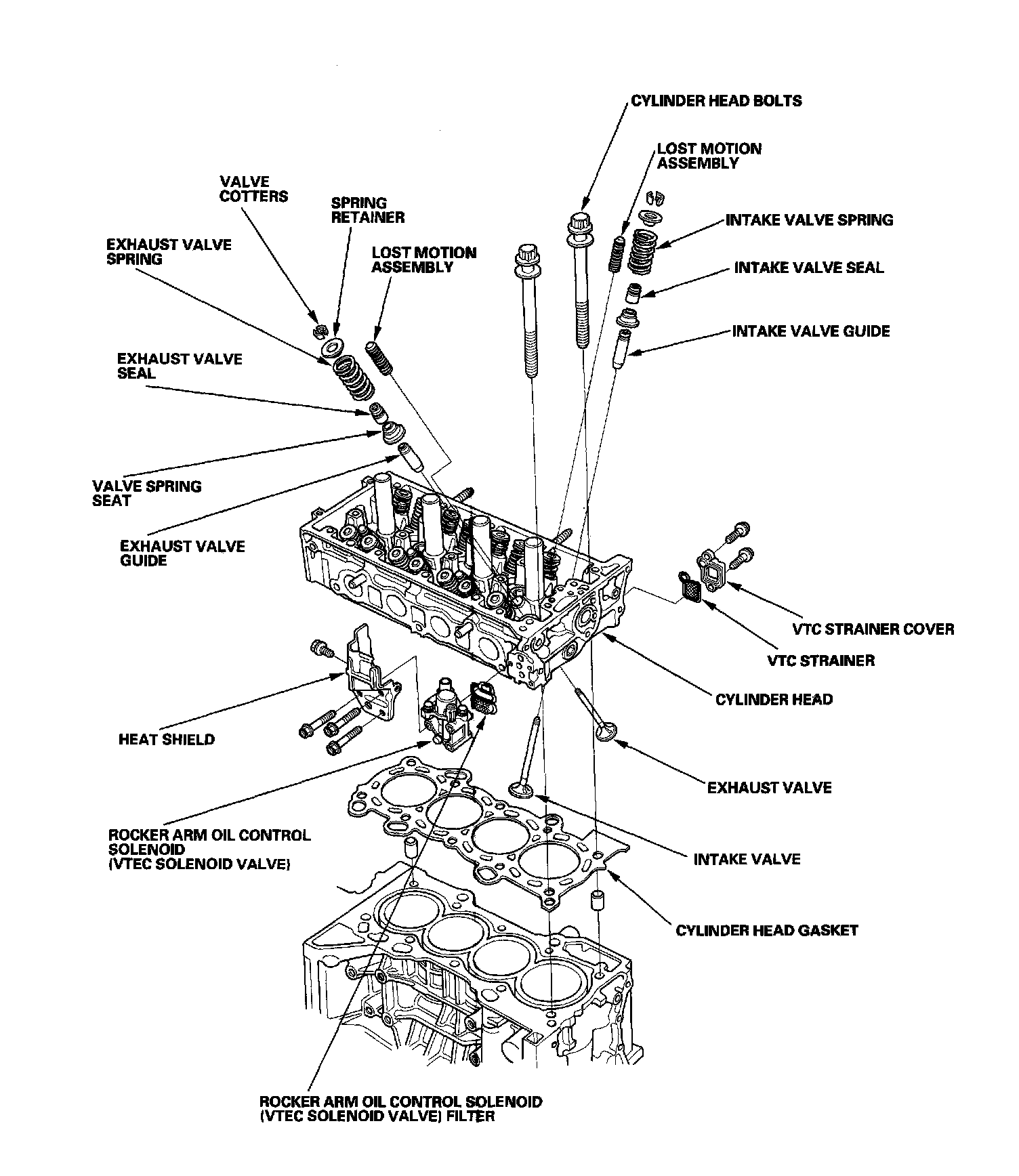

Cylinder Head Component Location Index (part 2):



Cylinder Head Component Location Index (part 3):
