Circuit Diagram

Circuit Diagram

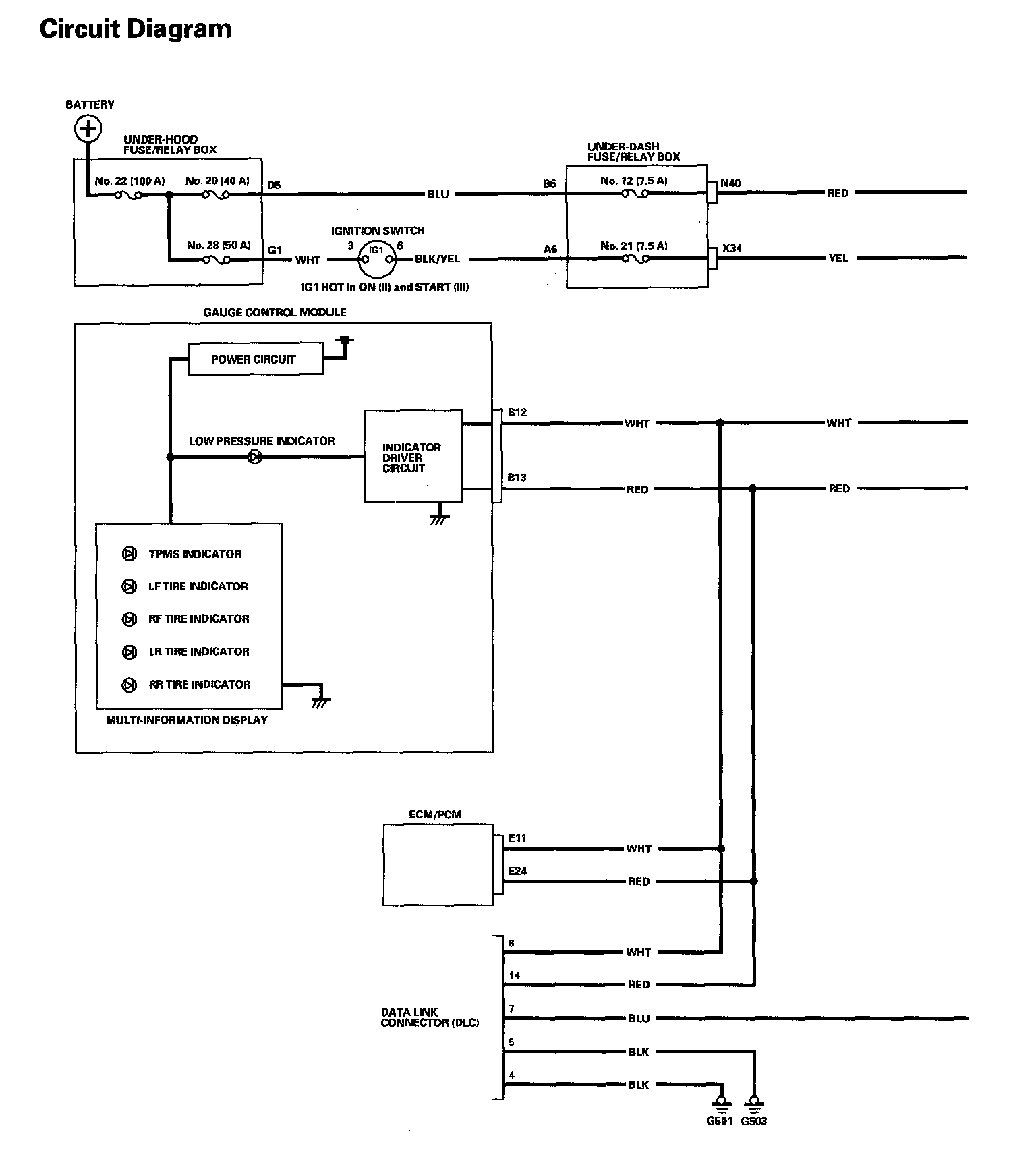

TPMS (Tire Pressure Monitoring System) Circuit Diagram (Part 1):

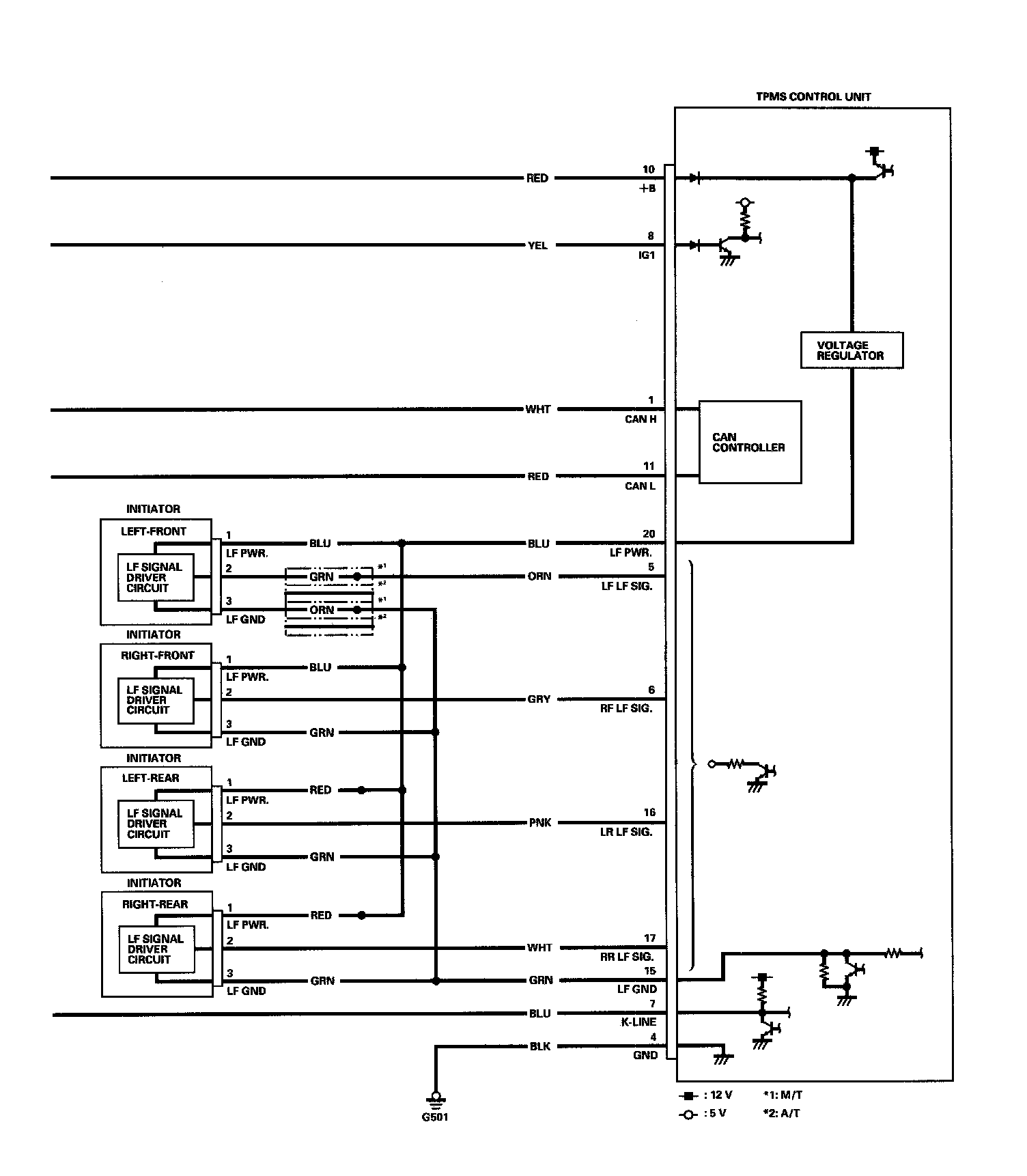

TPMS (Tire Pressure Monitoring System) Circuit Diagram (Part 2):

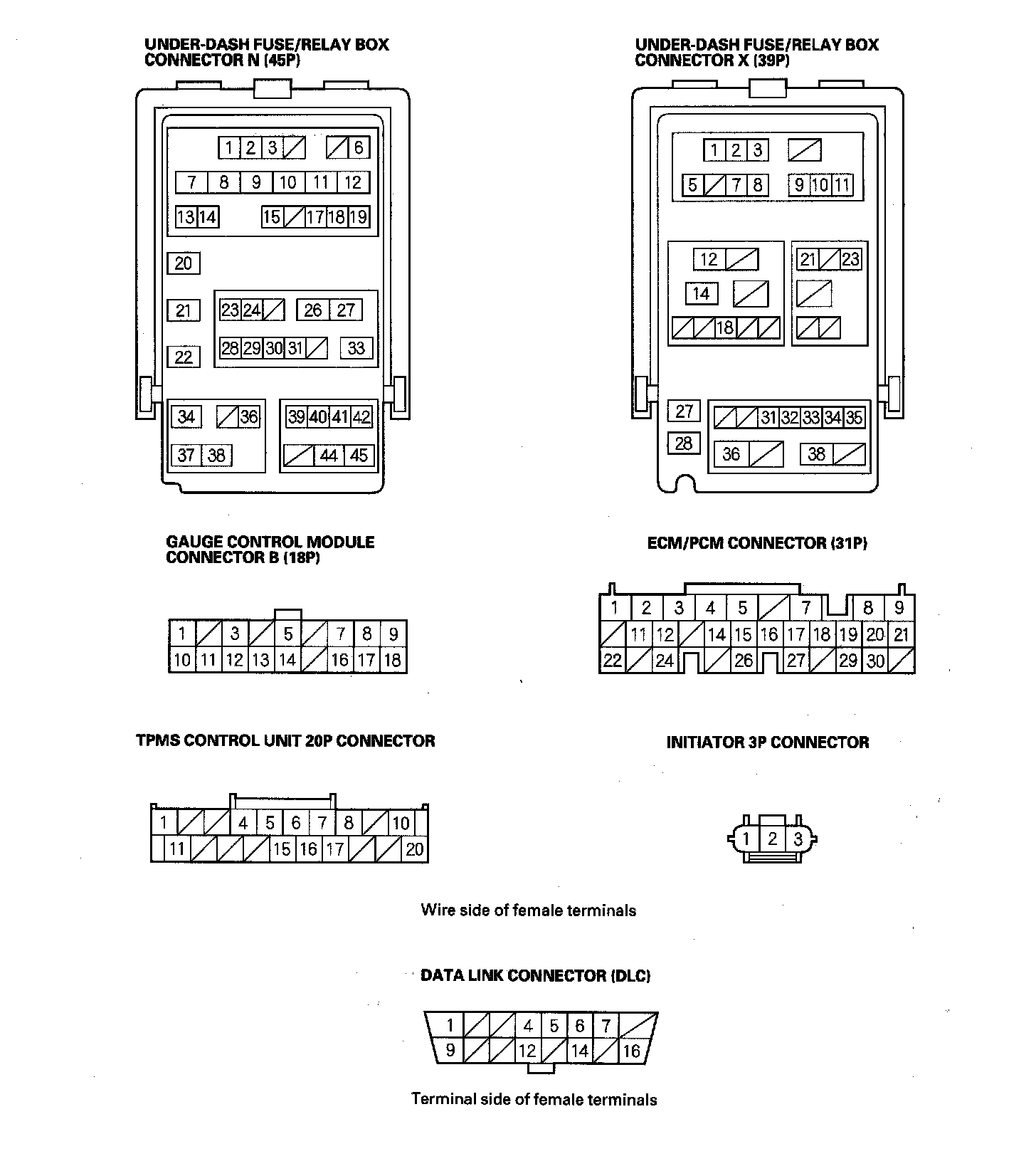

TPMS (Tire Pressure Monitoring System) Circuit Diagram (Part 3):
