Climate Control Circuit Diagram

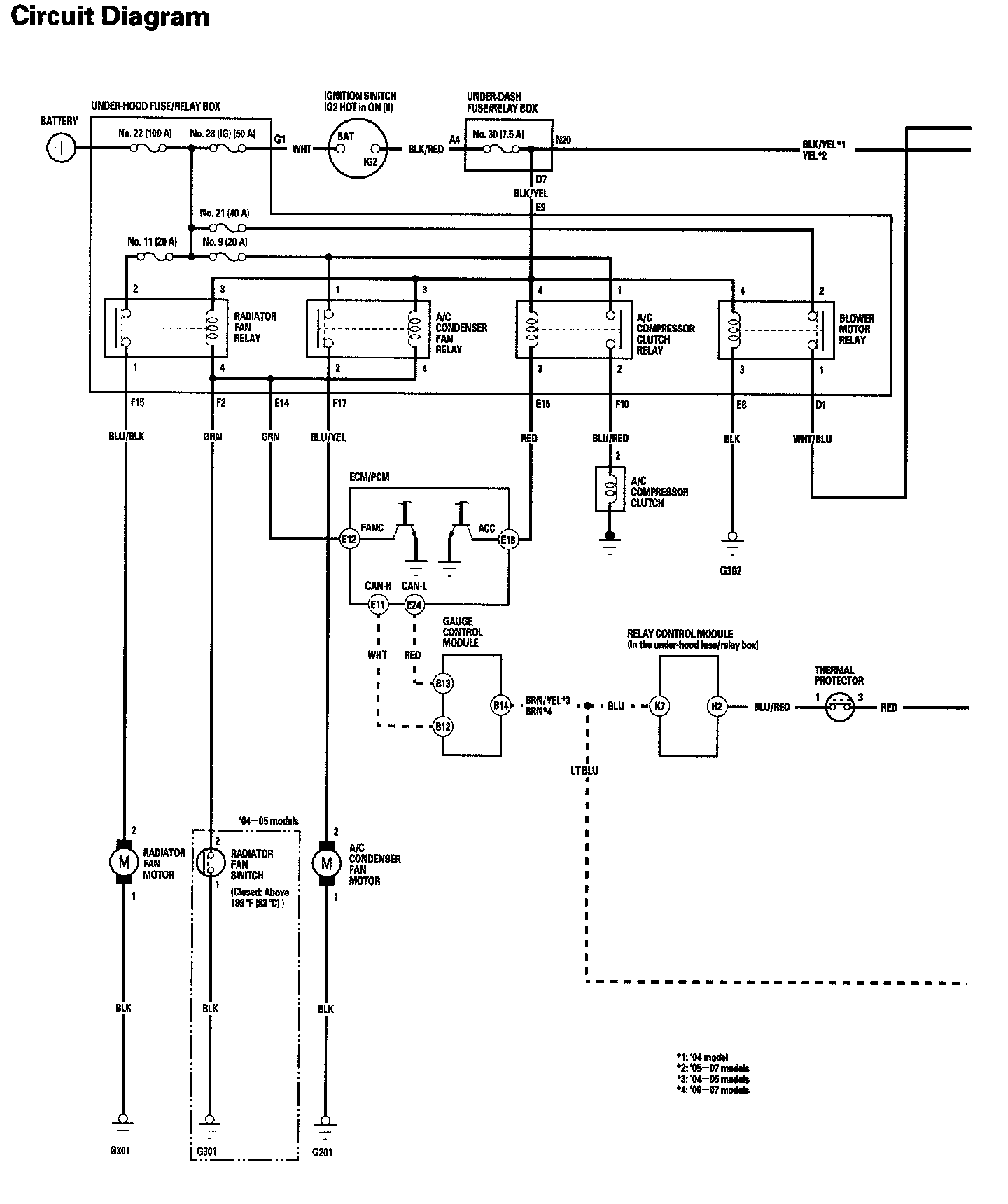

Climate Control Circuit Diagram Part 1:

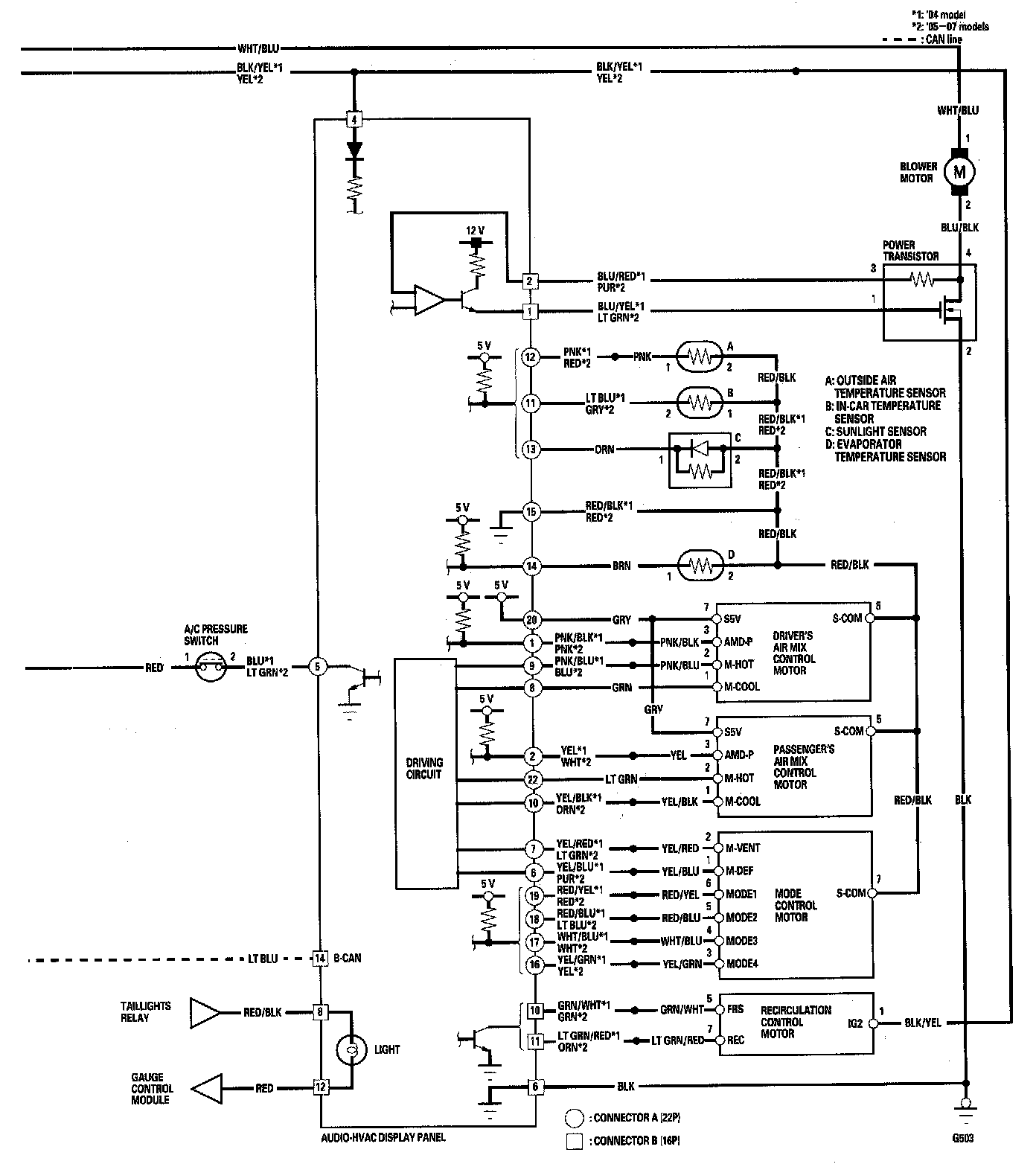

Climate Control Circuit Diagram Part 2:
