Home >> Acura >> 2007 >> TSX L4-2.4L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Diagrams By Number >> Diagram Set 30 (Engine Mount Control System)

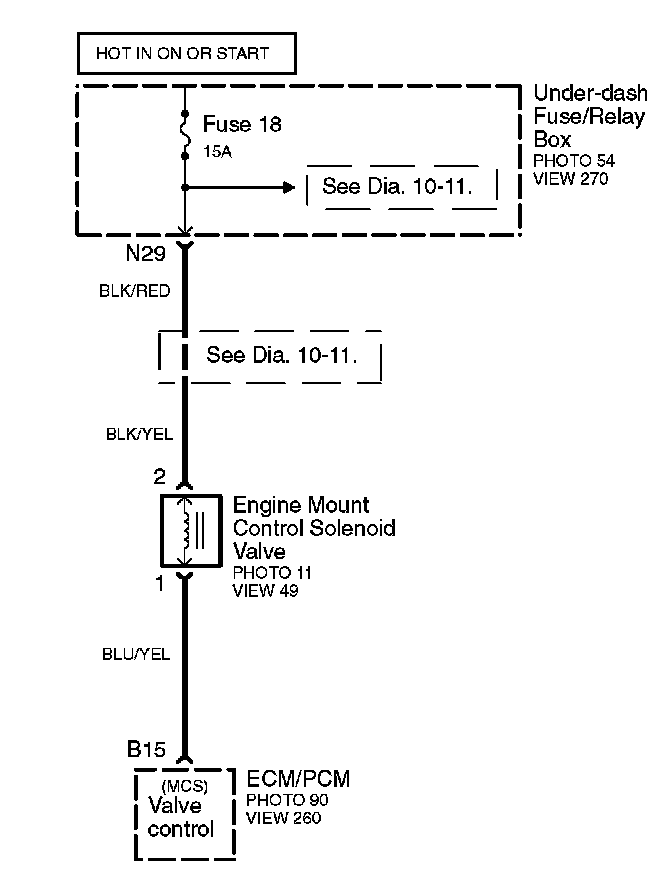

Diagram Set 30 (Engine Mount Control System)

Diagram 30:
