Circuit Diagrams

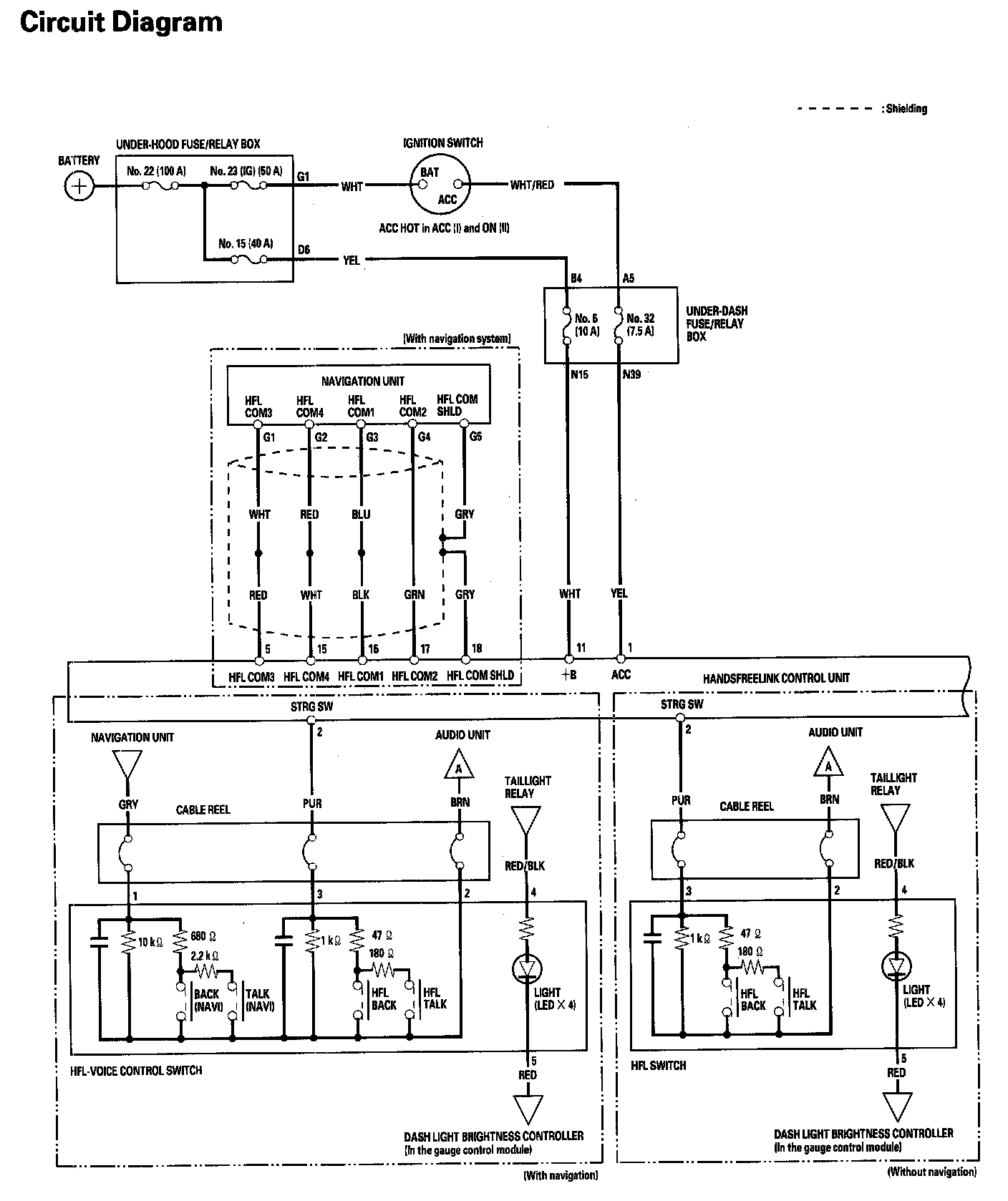

Hands Free Link System Component Circuit Diagram Part 1:

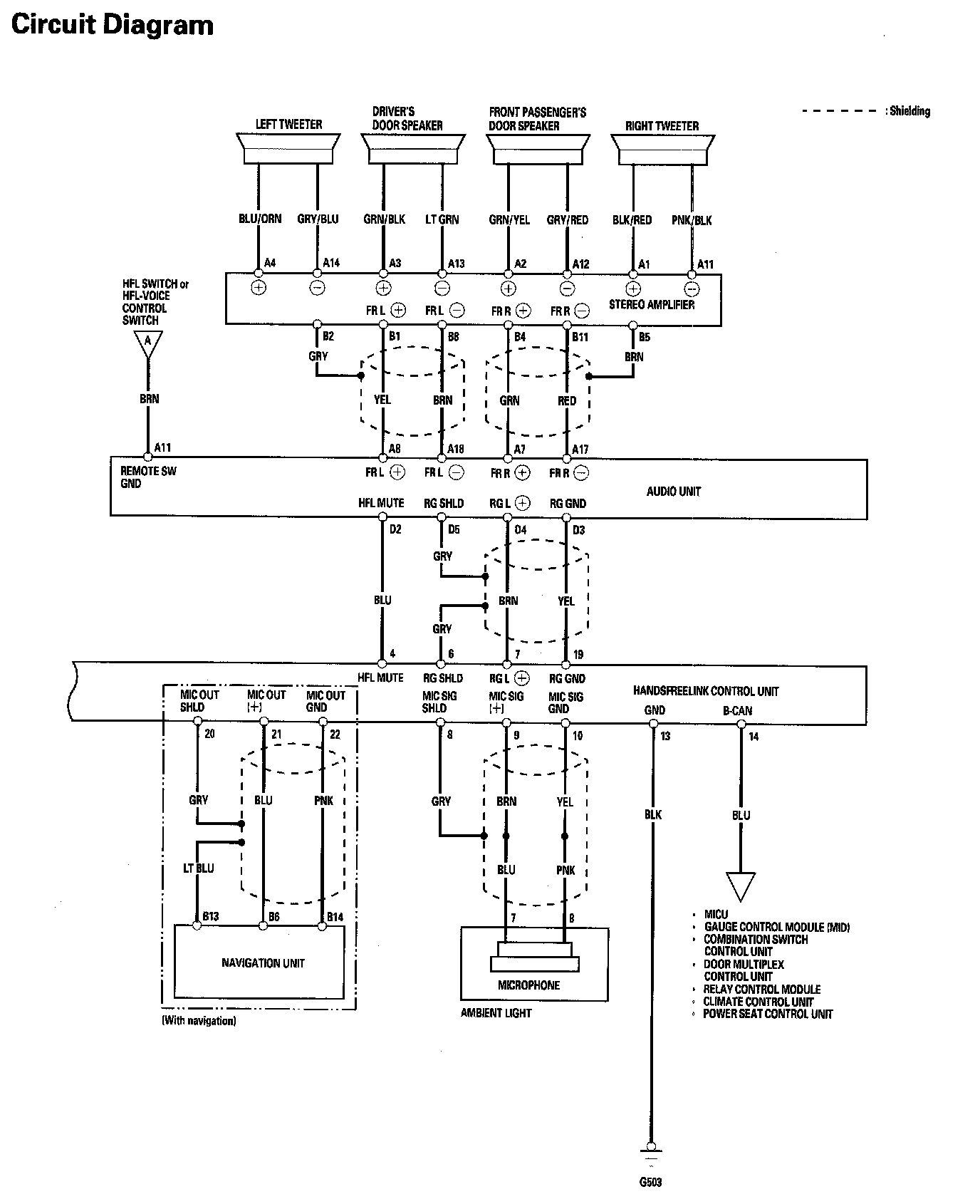

Hands Free Link System Component Circuit Diagram Part 2:
